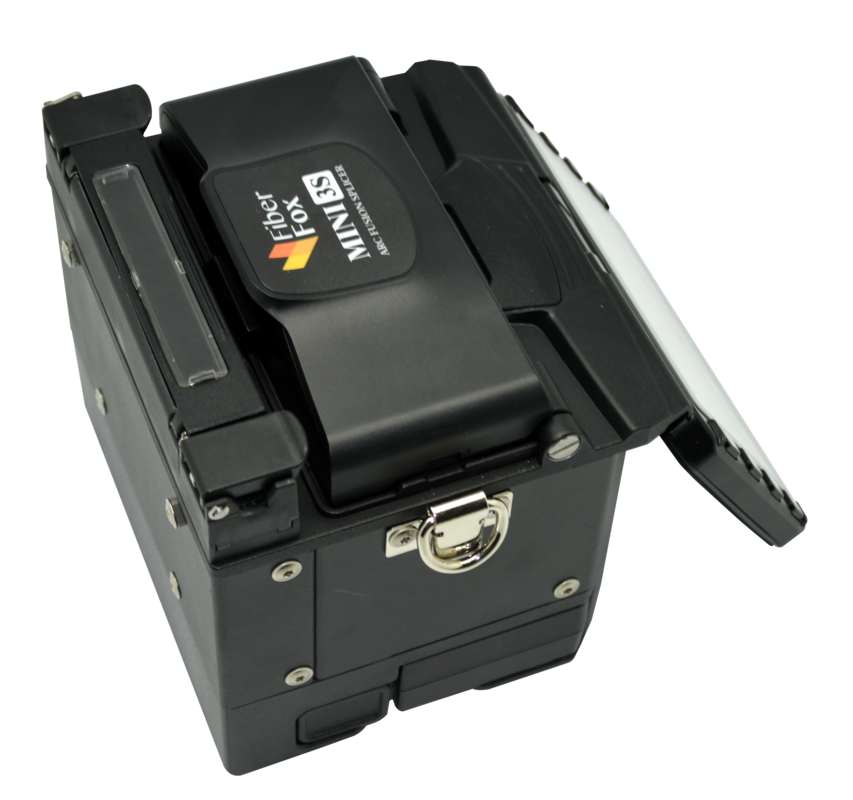

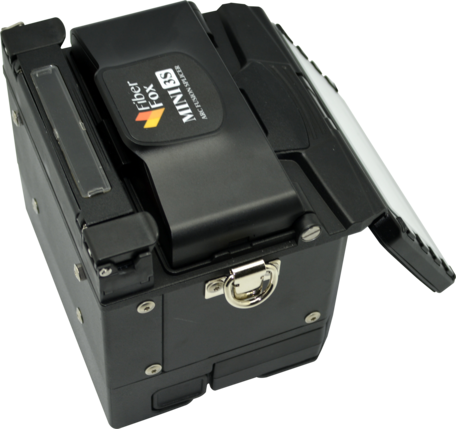

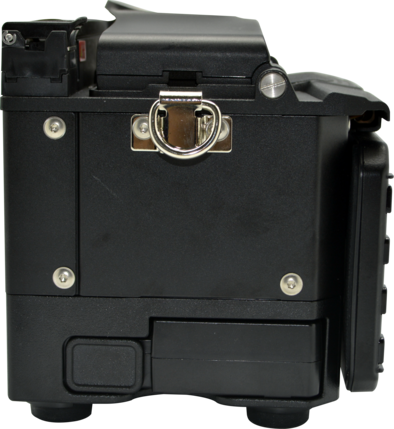

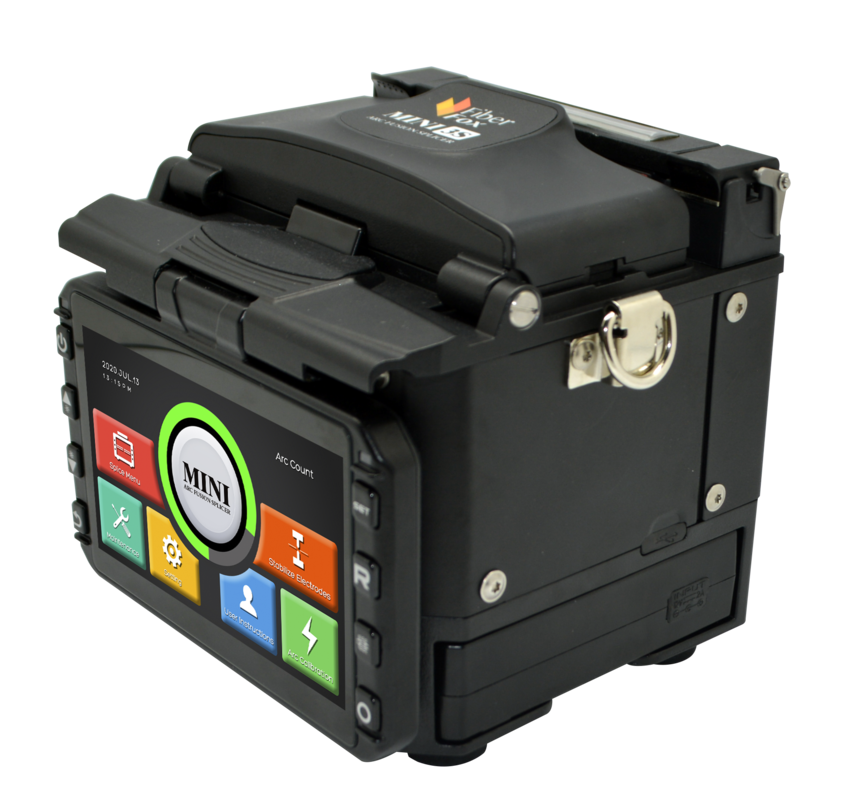

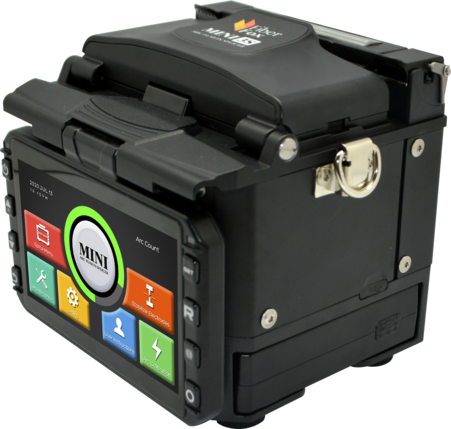

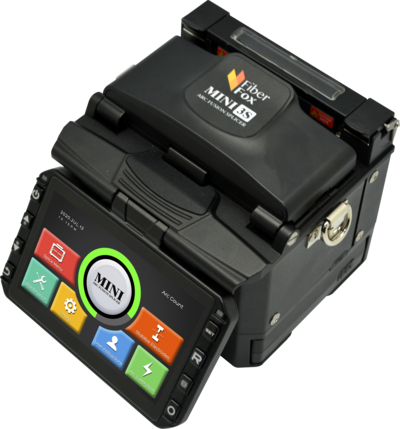

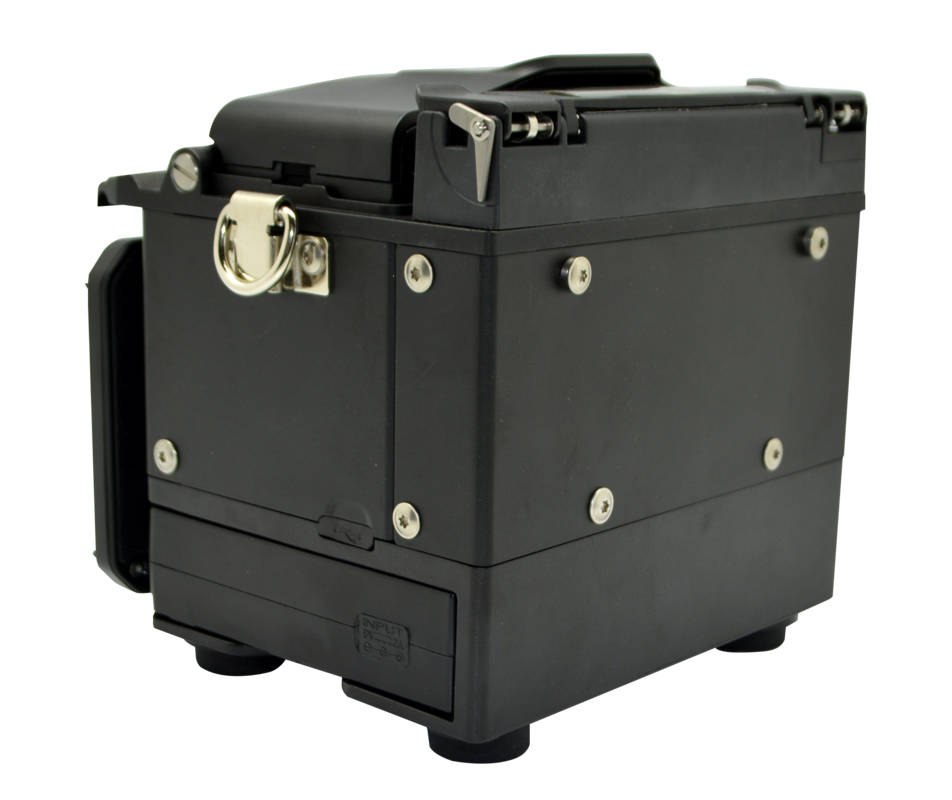

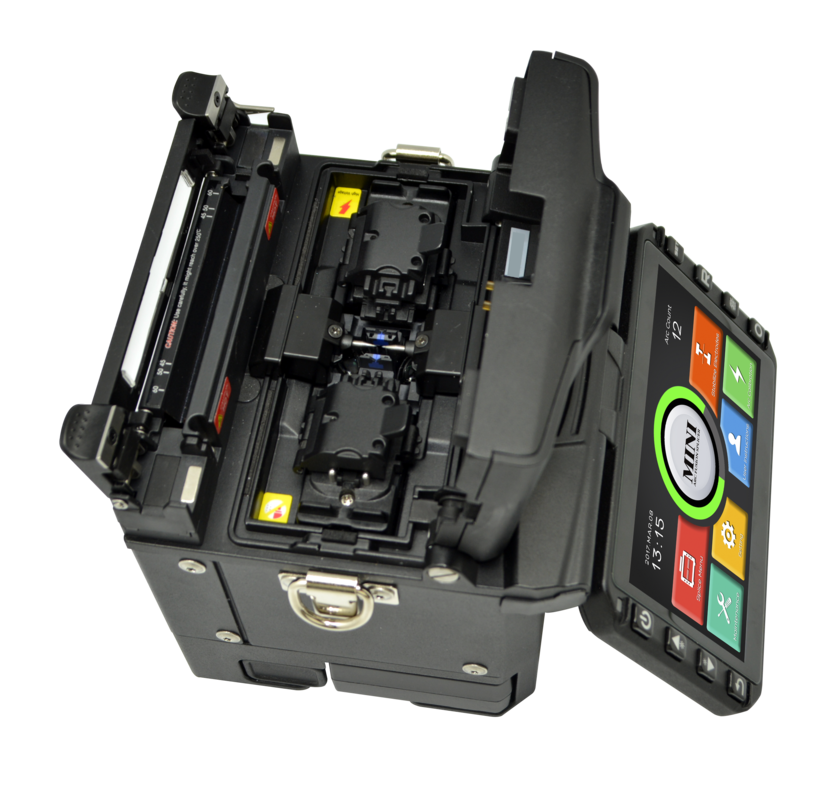

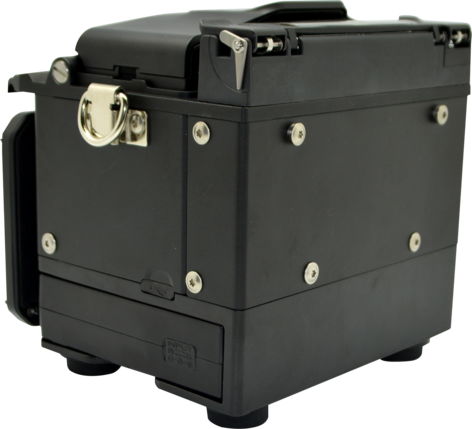

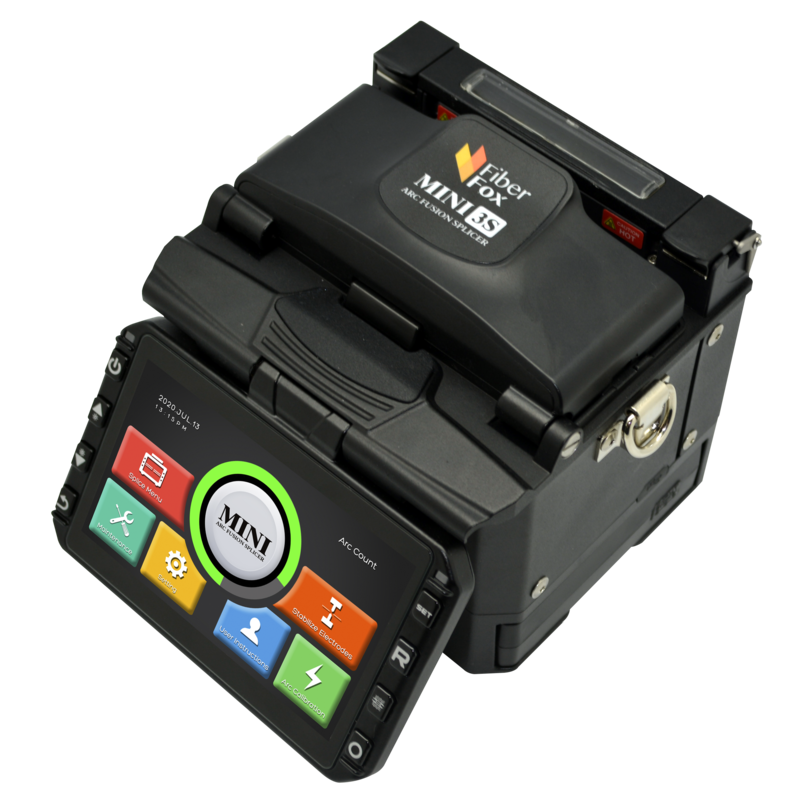

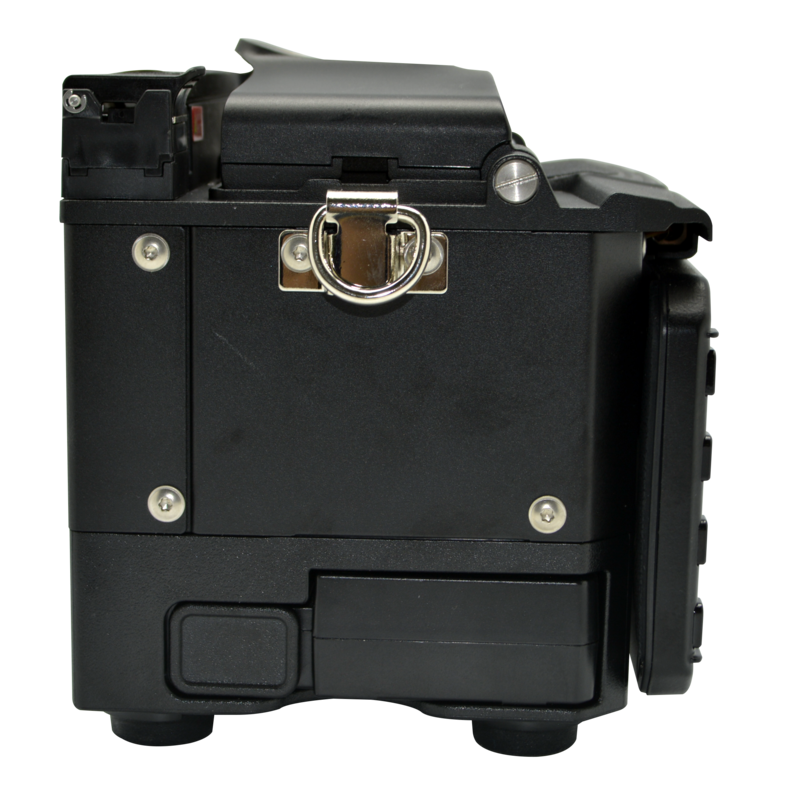

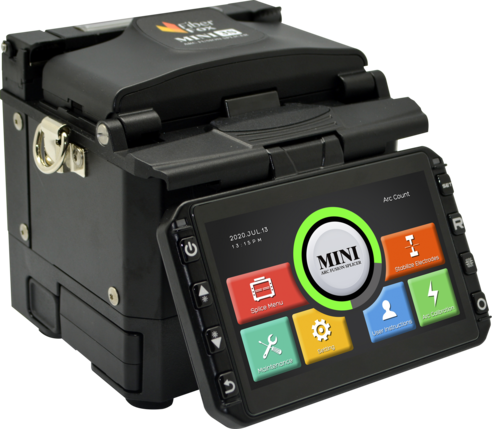

Mini-3S active alignment V-groove fusion splicer complete package

Product code 1632562 Copy
Product type MINI-3S Copy
Sales unit Pcs Copy
ETIM-Class EC001124 Copy
  • Product specifications

    4-Motor Active Alignment Splicer

    • Splice loss ≤ 0.03 dB > 90%
    • Splicing time 4 sec
    • Weight 1.1 kg
    • 200 cycles (splicing & heateing)
    • LED Injection
    • Full touch screen - GUI interface with tempered glass
    • SOC compatible

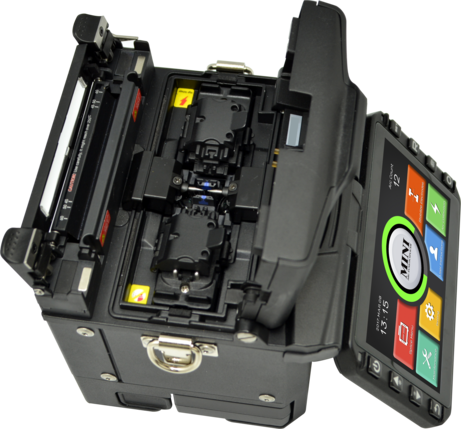

    • Integrated V-groove on machine
    • Heating time 18 sec with 60mm sleeve
    • 3000mAh battery is included
    • Dustproof IPX2
    • Waterproof IP5X
    • Anti-Shock 1 meter
    • Elevation 0-5000m
    • Max wind speed 15m/s
    • Operating temperature -15/+60℃
    • Relative humidity 0-95%
  • Measurements
    Length 396 mm Copy
    Height 190 mm Copy
    Width 220 mm Copy
    Weight 4,437 g Copy
  • Documents
    Data Sheets
    1632562-EN-FDV.pdf
    Files
    Sikkerhetsdatablad_batteri_3000mAh.pdf
    Instructions for Use
    Daily - Weekly Fusion Splicer Cleaning.pdf
  • Technical Specifications - Fusion Splicers
    Splicing Methode Active Cladding Alignment Copy
    Average Splice Loss sm(0.03db) / mm(0.02db) / ds(0.05db) / nzds(0.05db) Copy
    Average Splice Return Loss >>60db Copy
    Average Splicing Time (SM) 8 s Copy
    Splicing Modes 139 modes (pre-set: 11 / user set-up: 128) Copy
    Splicing Attenuation Range 0.1 ~ 20 Copy
    Fiber Types sm (itu-t g.652 & g.657) , mm (itu-t g.651), ds (itu -t g.653), nzds (itu-t g.655) Copy
    Coating Diameter 100-3,000 µm Copy
    Cladding Diameter 80-150 µm Copy
    Cleaved Length on 250µm Coating 5~16 mm Copy
    Cleaved Length on >250µm Coating 8~16 mm Copy
    Average Heater Time 18 s Copy
    Heater Modes 37 modes (pre-set: 5 / user set-up: 32) Copy
    Applicable Sleeves 20 ~ 60 mm Copy
    Connectivity (Link to PC) usb(5pin mini-b) Copy
    Electrode Life Span >3,500 arcs Copy
    Data Storage splice record : 10,000 / image : 2,000 Copy
    Fiber Detecting dual ccd camera with led emitting system Copy
    Illumination led spot light Copy

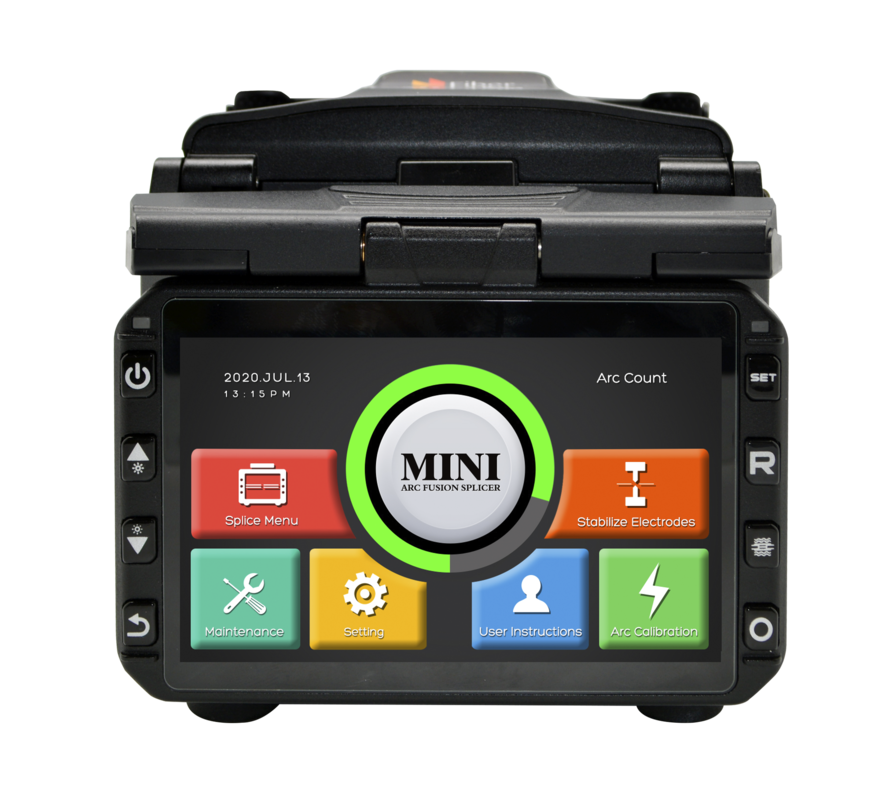

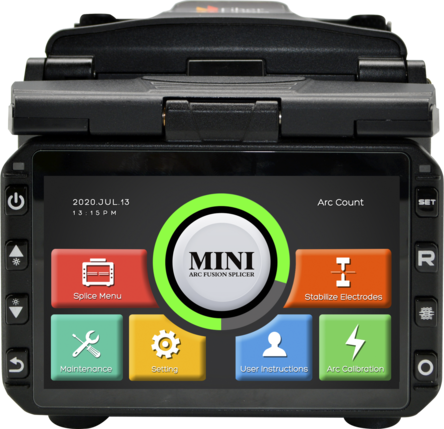

    Display color 4.3" lcd monitor, with touch screen (tempered glass) Copy
    Battery Type li-ion 11.1v 3000mah Copy
    Average Battery Life 200 cycles (splicing & heating) Copy
    Battery Storage Temperature -20~40 °C Copy
    Power Supply ac 100-240v input or dc 12.6v 1.8a Copy
    Fibre Display (Magnification) Single Image 260 X Copy
    Fibre Display (Magnification) Dual Image 130 X Copy
    Wind Protection (Max Wind Speed) 15 m/s Copy
    Operating Altitude Range 0-5,000 m Copy
    Operating Temperature Range -10~50 °C Copy
    Operating Humidity Range 0~95 %RH Copy
    Storage temperature Range -20 to 60 °C Copy
    Storage Humidity Range 0~95 %RH Copy
    Pull Testing (Standard) 1.96~2.25 N Copy
