Fibre Termination Boxes outdoor

MDB-S optical distribution box IP65

The Fiber Optic Box MDB-S is a durable fiber optic box, designed for various fiber organizers inside. The box can be configured to address a wide range of fiber optic splice and/or connectivity applications for PON, GPON and 5G networks. The engineered design provides IP65 protection from water / dust ingress and IK10 impact resistance to keep your critical network connections safe inside. The MDB S provides the ideal splicing solution for multi dwelling unit fiber distribution points or outdoor pole mounted splice applications. Capacity of up to 96 splices Capacity of up to 24× SC / 48× LC connector Multiple cable or tube entry ports on all sides of the box to increase installation flexibility Top outputs – PG grommets for using outdoors, Grommets System for using indoors Support for various fiber organizers Fiber Optic Tray KM 6 for up to 24 splices (4 pcs max.) Holder for 12 pcs of adapters (Simplex, Duplex or LC Quad) Optional placing of PLC Splitters in the management (outside a tray) Removable internal fiber management chassis to enable maximum access Support for ribbon fibers Increased durability, impact protection and water / dust ingress resistance (IP65, IK10) Integrated pole bracket Suitable for all types of networks

MDB-XS optical distribution box IP65

The Fiber Optic Box MDB-XS, designed for various fiber organizers inside, can be configured to address a wide range of fiber optic splice and/or connectivity applications for PON, GPON and 5G networks. The MDB XS provides the ideal splicing solution for multi dwelling unit fiber distribution points or outdoor pole mounted splice applications. Capacity of up to 48 splices Capacity of up to 16× SC / 32× LC connector (for boxes with organizer B) Multiple cable or tube entry ports on all sides of the box to increase installation flexibility Top output – PG grommet for using outdoors, Grommets System for using indoors Support for various fiber organizers Fiber Optic Tray KM 6 for up to 24 splices (2 pcs max., organizer A) Holder for 6 pcs of adapters – Simplex, Duplex or LC Quad (for boxes with organizer A) Optional placing of PLC Splitters in the management (outside a tray) Removable internal fiber management chassis to enable maximum access Support for ribbon fibers Support for midspan (loop-through) cable deployments (via an express port) Grommets system for cables with diameters 1.8–13 mm Increased durability, impact protection and water / dust ingress resistance (IP65, IK10) Integrated pole bracket Suitable for all types of networks

MDB-M optical distribution box IP65

The Fiber Optic Box MDB M is a durable fiber optic box, designed with the highly flexible FibeRoad system inside. The box can be configured to address a wide range of fiber optic splice and/or connectivity applications for PON, GPON and 5G networks. The engineered design provides IP65 protection from water / dust ingress and IK10 impact resistance to keep your critical network connections safe inside. The MDB M provides the ideal splicing solution for multi dwelling unit fiber distribution points or outdoor pole mounted splice applications. Capacity of up to 144 splices Capacity of up to 48× SC / 96× LC connector Multiple cable or tube entry ports on all sides of the box to increase installation flexibility Top outputs – PG grommets for using outdoors Grommets System for using indoors Ability to mix & match the Fiber Optic Trays: KM 4, KM 5, KM 6, KM 7, KM 9 KM 4 and KM 6 for up to 24 splices (6 pcs max.) KM 5 for up to 12× SC / 24× LC connector (4 pcs max.) KM 7 for up to 8× SC / 16× LC connector (for GPON, 4 pcs max.) KM 9 for up to 12 splices (12 pcs max.) Scalable through gradual adding of trays Optional placing of PLC Splitters in the management (outside a tray) Up to 2 PLC Splitters ABS together with 4× KM 7 Hingeable (or detachable) splicing (or patching) section  FibeRoadTM System compatible Removable internal fiber management chassis to enable maximum access Support for ribbon fibers Significant space for patch cords and cables reserves Optional pole bracket Suitable for all types of networks

MAB optical distribution box IP55

The Fiber Optic Box MAB is used to store up to 60 splices or to terminate up to 12 fibers with SC/LC connectors in a flip tray splice system. It provides the ability to connect customers in three ways (pre-connectorized drop cables, splicing or splicing in a subscriber tray with six separate sections). The box can be equipped with an internal cover to protect the splicing section. An integrated pole mount is included, making it suitable as an access point for overhead GPON or 5G networks.

Grommet for fiberbox MDB

ORM8 optical distribution 4xSCD

The ORM 8 optical distribution box is designed for the placement of 8 optical connectors both indoors and outdoors. The distribution box may be complemented by a simple bracket, which enables it to be post-mounted. Capacity of 8 optical connectors Connector holder SC, ST, FC, E2000, LC Placement of optical fi ber reserve, length 1 m PG bushings Lockable lid Easy assembly Wall-mounted or post-mounted Coverage degree IP 54   Inputs / Outputs (quantity × range) 4× 3 mm, 1× 4–8 mm Grommets (type and number of used grommets) 2× PG16, 1× PG9 Ingress Protection IP54 Impact Protection IK10 UV Resistance yes Flammability Degree V0 Temperature Range –40 °C / +70 °C Material PC / ABS Color light gray RAL 7035 Dimensions (H × W × D) 185 × 103 × 73 mm Weight 0.6 kg Environment indoor outdoor Number of Splices 1–12 Number of Connectors 1–12 Connector Type E2000 LC SC

ORM5 distribution lockable box IP54

Lockable wall mount optical distribution box is designated for indoor/outdoorwall installation at the customer premises. Box is suitable mainly in FTTH networkto terminate optical fibres on the internal/outdoor walls of the buildings mainly insuburban areas with lower household density (family houses, low household countresidential buildings or offices). Additionally, the box can play the role of the floor distribution box in multidwelling units. Simple wall installation Easy access due to hinged removable cover Lockable cover (optional) Gradual cable gland located in the lower wall for the cables with the outside diameters between 3 and 14 mm Gradual cable gland located in the bottom for the cables with the outside diameters between 3 and 10 mm (for the wall through installations) Pre-fabricated holes in the bottom for the wall through patchcord installation 4 prefabricted holes for dividable bushing capable to seal up to 2 patchcords or heavy duty subscriber cables Can accommodate up to 4× SC or 4× E2000, eventually 8× LC connectors and pigtails (UPC or APC polishing) Splice cassette supporting up to 12 heat-shrink or crimp fusion splice protective sleeves or mechanical splices (up to 4 pieces). Ready to accommodate Gas block for the microtubes with various outside diameters (5, 7, 10, 12 and 14 mm) at the input of the box   Coverage Degree IP 54 according to EN 60529 Impact protection degree IK 10 to EN 50102 Color Light gray RAL 7035 Material PC+ABS CYCOLOY C2950-96235 Dimensions 235 × 156 × 45 mm Weight 450 g Bushings – right part 1× Gradual bushing 3–14 mm for incoming cable Bushings – left part 4× Dividable rubber bushing 2× 1–3 mm or 4× Gradual bushing 3–14 mm Bushings – bottom (wall through) Gradual bushing 3–10 mm for incoming cable Solar radiation (UV) EN 60068-2-5 Change of temperature -45 °C/+70 °C according to EN 60068-2-14 Environment Outdoor Number of splices 1-12 splices Number of connectors 1-12 connectors Connector type SC, LC

URM-LH optical distribution 4xPG9+3xPG24

The URM LH 48C UNI optical distribution box is designed for the placement of 24/48 optical connectors indoors and outdoors. The distribution box may be complemented by a bracket, which enables it to be post-mounted. Maximum capacity of adapters is 12× SC simplex or 12× SC duplex or 12× LC duplex or 12× LC QUAD 2× KM4 splice tray for the placement of optical splices Possibility of PLC splitter placement 4× PG9 bushing for input cable (5 - 8.5 mm) 3× PG29 dividable bushing 24× 2–3 mm for output patchcords Lockable door Use for fibers G652D and G657 A,B   Coverage Degree IP 54 according to EN 60529 Self-Extinguishing Degree V0 to UL94 Impact protection degree IK 10 to EN 50102 Color Light gray RAL 7035 Dimensions 250 × 380 × 90 mm Weight 1.6 kg Material – distribution box PC/ABS Material – bushings PA6, TPV Grommets 4× PG 9, 24× PG29 dividable bushing 24× 2–3 mm Solar radiation (UV) EN 60068-2-5 Change of temperature -40 °C/+70 °C according to EN 60068-2-14

URM-LH optical closure 4xPG9+3xPG24

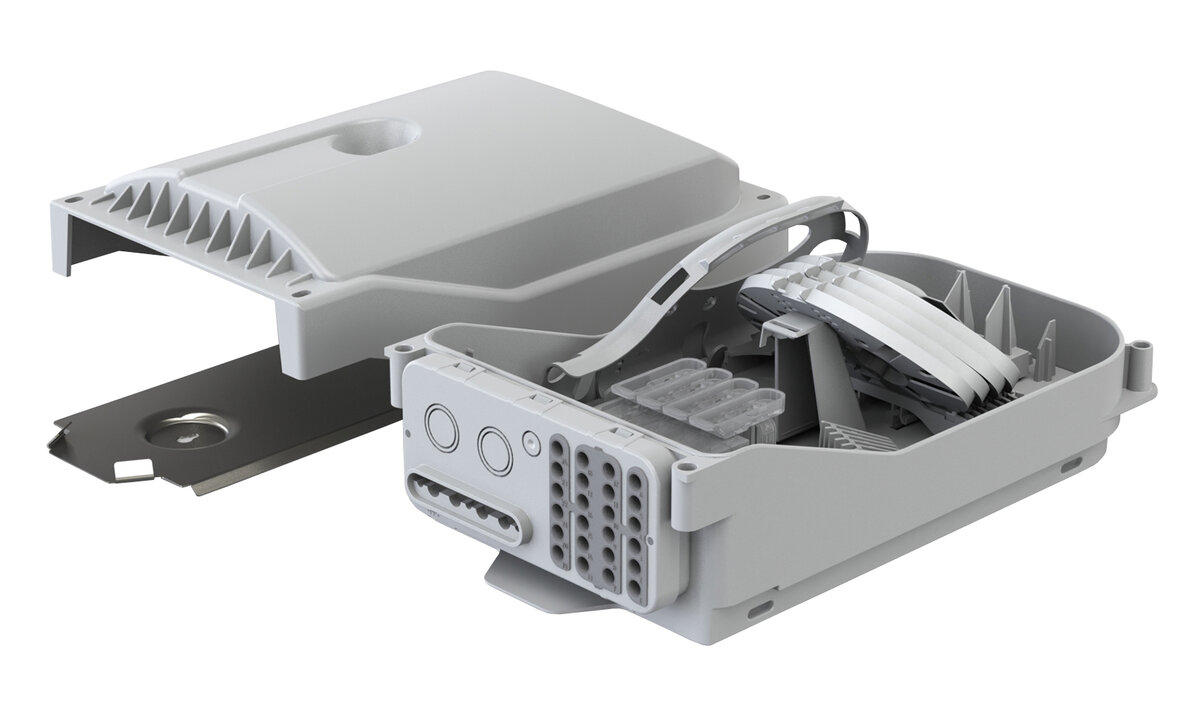

Distribution Closure Hybrid FM 48F IP65

Robust IP65 rated halogen-free distribution closure for outdoor/indoor wall mounting. 48 fibers can be spliced from several incoming cables or midspan against 24 subscriber cables (2F). The closure is delivered complete with splice trays (12F/tray), fiber management, cable-/duct seals and wall bracket. The unique base plate makes it possible to connect 24 subscriber ducts or cables. Ducts and cables are automatically strainrelieved and sealed to the box during installation. Wall mounting plate: Stainless steel. Colour: Grey RAL 7035 Number of splice trays: 4 splice trays. Splice tray capacity: 12 splice protectors heat shrink Ø2,4 x 45mm. Fiber bending radius: R = 30mm. Looping length of fibres: 300 mm. Feeder cable: Ø 4,5 mm up to including Ø 8,3 mm. Subscriber cable/duct: 24 x Ø 3,0 – 8,0 ± 0,1 mm. Feeder cable: 4x Ø 4.5 - 8.3 mm or midspan and 2 x M20/25.

Distribution Closure Hybrid FM 96F IP65

Robust IP65 rated halogen-free distribution closure for outdoor/indoor wall mounting. 96 fibers can be spliced from several incoming cables against 48 subscriber cables (2F). The closure is delivered complete with splice trays (12F/tray), fiber management, cable-/duct seals and wall bracket. The unique base plate makes it possible to connect 48 subscriber ducts or cables. Ducts and cables are automatically strainrelieved and sealed to the box during installation. Wall mounting plate: Stainless steel. Color: Grey RAL 7035. Number of splice trays: 8 splice trays. Splice tray capacity: 12 splice protectors heat shrink Ø2,4 x 45mm. Fiber bending radius: R = 30mm. Looping length of fibres: 300 mm. Subscriber cable/duct: 48 x Ø 3,0 – 8,0 ± 0,1 mm. Feeder cable: Ø 4,5 - 8,0 mm and 1 x M12/16/20/25

SNM12 optical closure 2xPG16/4+1xPG9

Base and cover for ORM4, ORM8 and SNM8

MDB-FA 144F optical distribution box IP65 incl. trays, 4xPG9, midspan

Optical distribution box MDB FA 144 is designed for the placement of 144 optical splices indoors and outdoor. The distribution box can be extended by a pole holder. A very suitable solution for spliced GPON networks. Maximum capacity of 144 splices Cable rings Placement of a large slack inside the cable management Removable splicing part Possibility of placing PLC splitters inside the management (outside the trays) 6x splice tray KM4 for 24 splices Possibility of using ribbon fibers   Inputs / Outputs (quantity × range) 4× 5.0-8.5 mm and midspan Grommets (type and number of used grommets) 4× PG9 and oval Ingress Protection IP65 Impact Protection IK08 Material ABS Color light gray RAL 7035 Dimensions (H × W × D) 400 × 300 × 165 mm Weight 4 kg Environment indoor / outdoor Number of Splices 144 Number of Connectors only splicing

MDB-FA 192F optical distribution box IP65 incl. trays, 6xPG9, midspan

Optical distribution box MDB FA 192 is designed for the placement of 144 optical splices indoors and outdoor. The distribution box can be extended by a pole holder. A very suitable solution for spliced GPON networks. Maximum capacity of 192 splices Cable rings Placement of a large slack inside the cable management Removable splicing part Possibility of placing PLC splitters inside the management (outside the trays) 8x splice tray KM4 for 24 splices Possibility of using ribbon fibers   Inputs / Outputs (quantity × range) 6× 5.0-8.5 mm and midspan Grommets (type and number of used grommets) 6× PG9 and oval Ingress Protection IP65 Impact Protection IK08 Material ABS Color light gray RAL 7035 Dimensions (H × W × D) 500 × 400 × 175 mm Weight 5.5 kg Environment indoor / outdoor Number of Splices 192 Number of Connectors only splicing

MDB-FA 288F optical distribution box IP65 incl. trays, 8xPG9, midspan

Optical distribution box MDB FA 288 is designed for the placement of 144 optical splices indoors and outdoor. The distribution box can be extended by a pole holder. A very suitable solution for spliced GPON networks. Maximum capacity of 288 splices Cable rings Placement of a large slack inside the cable management Removable splicing part Possibility of placing PLC splitters inside the management (outside the trays) 12x splice tray KM4 for 24 splices Possibility of using ribbon fibers   Inputs / Outputs (quantity × range) 8× 5.0-8.5 mm and midspan Grommets (type and number of used grommets) 8× PG9 and oval Ingress Protection IP65 Impact Protection IK08 Material ABS Color light gray RAL 7035 Dimensions (H × W × D) 600 × 400 × 200 mm Weight 6.5 kg Environment indoor / outdoor Number of Splices 288 Number of Connectors only splicing
