Fibre outlets indoor

Fiber outlets or customer termination boxes are used for termination of fiber optic cables inside the premises. Available in different types and designs depending on the number of fibers to be instelled and requirements on design and safety. Could be customized with pre-installed accessories according to customers specific needs.

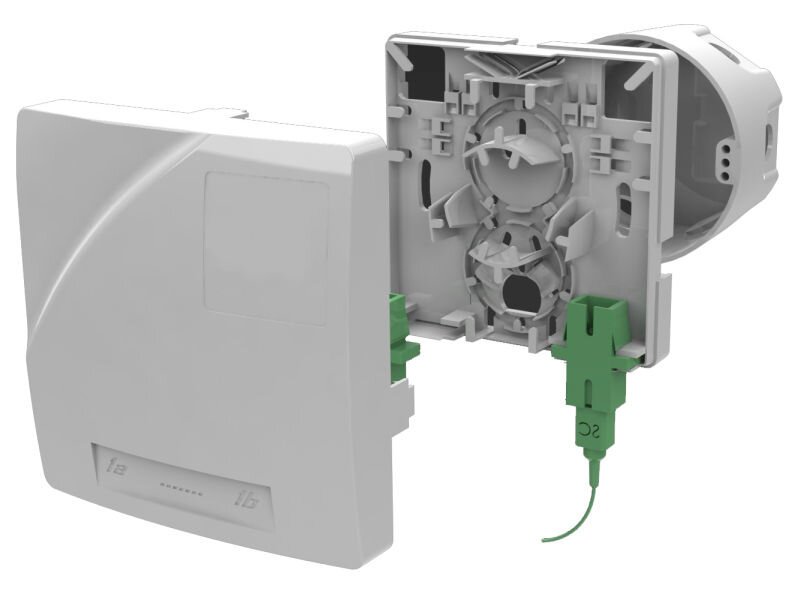

ORM1 Optical Socket 2xSCS incl. 1xSCU adaptor, pigtail and patch 0.5m

5052123

The Fiber Access Terminal Box ORM 1 is designed to terminate an optical network using 2 to 4 optical fibers at a customer terminal point. It is installed indoors on a wall. Capacity 4 optical connectors Connector holder SC simplex or LC duplex Maximum capacity is 4 optical splices, heat shrink, RECORD splice, Fiberlock Attractive design for indoor usage Installing on a surface or flush-mounting box Simple optical management Direct fiber termination by a connector Standard socket dimensions Input possibility of fiber with connector Use only for fibers G657a, b   Ingress Protection IP30 / IP54 (under special conditions) Impact Protection IK07 Flammability Degree HB Material ABS Color RAL 9003 Dimensions (H × W × D) 116 × 81 × 25 mm / extended cover 81 × 81 × 25 mm / short cover Weight 0.08 kg Environment indoor Number of Splices 1–4 Number of Connectors 1–4 Connector Type SC/UPC

Fiber Optical outlet for DIN mounting 2xSCS/LCS WHITE

5052192

Fiber optic socket 2xSCS/LCD (G657) for mounting on DIN rail. Fits cable with outer diameter 2-4mm. Capacity: 2 fiber G657 Material: ABS plastic Flammability standard: V2 (UL94) Color: White RAL 9003 Outer dimensions: 100x60x17.5mm

ORM1 Optical Socket 2xSCS/LCD

5053106

The Fiber Access Terminal Box ORM 1 is designed to terminate an optical network using 2 to 4 optical fibers at a customer terminal point. It is installed indoors on a wall. Capacity 4 optical connectors Connector holder SC simplex or LC duplex Maximum capacity is 4 optical splices, heat shrink, RECORD splice, Fiberlock Attractive design for indoor usage Installing on a surface or flush-mounting box Simple optical management Direct fiber termination by a connector Standard socket dimensions Input possibility of fiber with connector Use only for fibers G657a, b   Ingress Protection IP30 / IP54 (under special conditions) Impact Protection IK07 Flammability Degree HB Material ABS Color RAL 9003 Dimensions (H × W × D) 116 × 81 × 25 mm / extended cover 81 × 81 × 25 mm / short cover Weight 0.08 kg Environment indoor Number of Splices 1–4 Number of Connectors 1–4 Connector Type LC or SC

CTB PTO ONE Optical Outlet 2xSCS/LCD

5053110

The PTO One has been developed to fulfill all the requirements of FTTH and FTTO networks. Its compact (80 x 80 x 20mm) and neat design allows to fit into any type of installation environment. It also enables the storage of the fibre at two independent levels, bare and sheathed fibre. This offers a robust mechanical protection of the inner splices and makes the product easy to use. The PTO ONE can adapt to all homes and offices configurations. With integrated protective flaps into the outlet. Dimensions (L x D x H) : 80 x 80 x 20mm Capacity: 1FO or 2FO (900µm) Cable entries: 2 at the left bottom, 1 at the top right and 1 at the rear side  Bend radius: ≥ 15mm Ingress protection: IP40 Shock resistance: IK05 Mounting plane: spacing 60mm  Material: ABS-PC Color: RAL 9010 UV resistant

CTB PTO ONE Optical Outlet 2xSCS incl. 1xSCU adaptor

5053111

The PTO One has been developed to fulfill all the requirements of FTTH and FTTO networks. Its compact (80 x 80 x 20mm) and neat design allows to fit into any type of installation environment. It also enables the storage of the fibre at two independent levels, bare and sheathed fibre. This offers a robust mechanical protection of the inner splices and makes the product easy to use. The PTO ONE can adapt to all homes and offices configurations. With integrated protective flaps into the outlet. Dimensions (L x D x H) : 80 x 80 x 20mm Capacity: 1FO or 2FO (900µm) Cable entries: 2 at the left bottom, 1 at the top right and 1 at the rear side  Bend radius: ≥ 15mm Ingress protection: IP40 Shock resistance: IK05 Mounting plane: spacing 60mm  Material: ABS-PC Color: RAL 9010 UV resistant

CTB PTO ONE Optical Outlet 2xSCS incl. 1xSCU adapter and pigtail

5053112

The PTO One has been developed to fulfill all the requirements of FTTH and FTTO networks. Its compact (80 x 80 x 20mm) and neat design allows to fit into any type of installation environment. It also enables the storage of the fibre at two independent levels, bare and sheathed fibre. This offers a robust mechanical protection of the inner splices and makes the product easy to use. The PTO ONE can adapt to all homes and offices configurations. With integrated protective flaps into the outlet. Dimensions (L x D x H) : 80 x 80 x 20mm Capacity: 1FO or 2FO (900µm) Cable entries: 2 at the left bottom, 1 at the top right and 1 at the rear side  Bend radius: ≥ 15mm Ingress protection: IP40 Shock resistance: IK05 Mounting plane: spacing 60mm  Material: ABS-PC Color: RAL 9010 UV resistant

CTB PTO ONE Optical Outlet 2xSCS incl. 1xSCA adapter

5053113

The PTO One has been developed to fulfill all the requirements of FTTH and FTTO networks. Its compact (80 x 80 x 20mm) and neat design allows to fit into any type of installation environment. It also enables the storage of the fibre at two independent levels, bare and sheathed fibre. This offers a robust mechanical protection of the inner splices and makes the product easy to use. The PTO ONE can adapt to all homes and offices configurations. With integrated protective flaps into the outlet. Dimensions (L x D x H) : 80 x 80 x 20mm Capacity: 1FO or 2FO (900µm) Cable entries: 2 at the left bottom, 1 at the top right and 1 at the rear side  Bend radius: ≥ 15mm Ingress protection: IP40 Shock resistance: IK05 Mounting plane: spacing 60mm  Material: ABS-PC Color: RAL 9010 UV resistant

CTB PTO ONE Optical Outlet 2xSCS incl. 1xSCA adaptor and pigtail

5053114

The PTO One has been developed to fulfill all the requirements of FTTH and FTTO networks. Its compact (80 x 80 x 20mm) and neat design allows to fit into any type of installation environment. It also enables the storage of the fibre at two independent levels, bare and sheathed fibre. This offers a robust mechanical protection of the inner splices and makes the product easy to use. The PTO ONE can adapt to all homes and offices configurations. With integrated protective flaps into the outlet. Dimensions (L x D x H) : 80 x 80 x 20mm Capacity: 1FO or 2FO (900µm) Cable entries: 2 at the left bottom, 1 at the top right and 1 at the rear side  Bend radius: ≥ 15mm Ingress protection: IP40 Shock resistance: IK05 Mounting plane: spacing 60mm  Material: ABS-PC Color: RAL 9010 UV resistant Optical performances (IEC-61300-3-4) : IL < 0.3dB RL < -60dB

Mini-Socket Optical Outlet 2xSCD

5053125

FTB-2Q Optical Outlet 2xSCS/LCD

5053126

FTB-2Q Optical Outlet 2xSCS incl. 1xSCU adaptor, pigtail and patch

5053127

Download Data sheet
