Fibre Termination Boxes indoor

Easy indoor distribution box 24F

The Fiber Optic Box MTeH EASY is designed as a simple box for indoor installation. It supports especially FTTH networks. It can be used for storage of a pre-connectorized cable or blown cable reserves, which can be spliced when connecting the customer. It can also be used as a distribution box in small buildings or as a floor box. Easy installation Wide portfolio of accessories - see datasheet below Flat base with mounting holes Space for cable reserve before connecting customer Possibility to use the box for splicing or patching Two positions for adaptor plate Capacity up to 6x SC duplex, or 6x LC quad Gradiated rubber gland for cable  Ø 3-10mm (on each side) Breakable outputs on back side (connection through the wall directly to customer) Possibility to use loop-through cable Splice holder (max. capacity 24 splices, for fibres G.652d a G.657a,b) Possibility to place PLC splitter   Coverage Degree IP 20 to EN 60529 Self-Extinguishing Degree V2 to UL94 Impact protection degree IK 5 to EN 50102 Color White RAL 9003 Dimensions 205x157x60 Weight 0,350 kg Material – distribution box ABS - Halogen free, flame retardant (V2) Environment Indoor Number of splices 1-12 splices, 13-24 splices Number of connectors 1-12 connectors, 13-24 connectors Connector type SC, LC

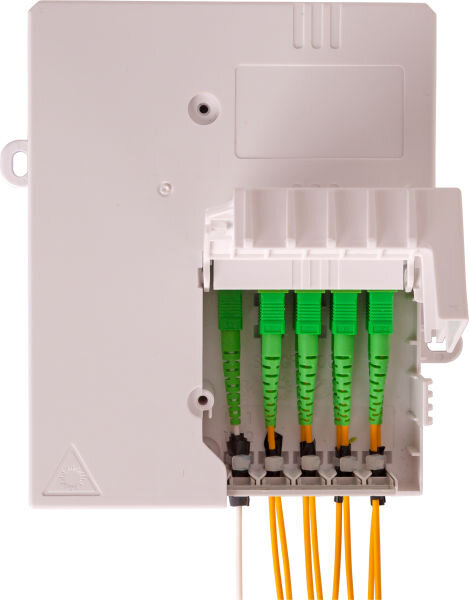

MTeH Mini indoor distribution box 12F

TeH MINI, the next-generation indoor wall-mounted Fiber Optic Box. Its unique compact design and factory connectorized options help reduce assembly time and installation costs by up to 50%. MTeH MINI finds its application as a floor or a main fiber distribution box in apartment buildings /MDUs or single-family houses. It supports all cable applications (riser cables, buffered tubes, microtubes and ribbon cables) and it can be used for GPON networks with a pre-installed splitter. MTeH MINI enables termination of connectors and splicing of optical fibers It can be pre-installed with adapters, pigtails or splitters from manufacturing Compact size makes installation in small spaces possible Two screw-lock doors – a larger one for a technician with professional skills, who works with splitters, splices and pigtails, and a smaller one for a technician without professional skills, who connects customer drop cables Capacity up to 14 splices Capacity up to 12x SC / 24x LC connectors (in case of a pre-connected cable) Capacity up to 10x SC / 12x LC connectors (in case of termination by splicing on pigtails) Integrated holder to support 2 splices in the base of the box, possibility to place a holder for 12 splices  Supporting use of PLC splitters – 1:2, 1:4, 1:8, 1:16 with LC connectors Suitable for GPON Multiple cable or tube entry ports placed on all sides of the box increasing installation flexibility Capability to support vertical mid-span cable applications Pre-moulded holes in the base for routing a cable through a wall Two screw-lock doors – a larger one for a technician with professional skills, who works with splitters, splices and pigtails, and a smaller one for a technician without professional skills, who connects customer drop cables Dedicated place for a company logo on the door of the box   Inputs 2x 1-16 mm Outputs 32x 1-5 mm Coverage Degree IP 20 to EN 60529 Self-Extinguishing Degree V0 according to UL 94 Impact protection degree IK 08 to EN 50102 Color White RAL 9003 Material Plastic PC/ABS Dimensions 150 × 140 × 40 mm Weight 0,14 kg

UNI indoor distribution box

MTeH UNI is designed to be a very versatile Fiber Optic Box, which can realize a wide range of configurations and interconnect fibers in many ways. The box is primarily suitable as a distribution box in FTTH networks. It includes two types of a connector panel and two large Fiber Optic Trays KM 4. Its unique design and factory connectorized options help reduce assembly time and installation costs Easy installation Removable cover Cable reserves brackets Cable management Ability to splice in the bottom of the box Optional splicing or splitter boxes Removable connector panel for 12x SC simplex or 12xSC duplex Connector plate protected with a cover Gradual grommet Ø 3-14 mm for cable entry from all sides Input for 12 microducts  up to Ø 7 mm Preparation for the side entrance of Wall rails Optional wall through installation Mid-span access 2x splice tray KM4 – total capacity 48 splices Maximum capacity 72 splices using splice section in the bottom of the box Duplex adapter point to connect PLC splitter   Coverage Degree IP 20 to EN 60529 Self-Extinguishing Degree V2 to UL94 Impact protection degree IK 6 to EN 50102 Color White RAL 9003 Dimensions 340 x 235 x 60 mm Weight 0,8 kg Material – distribution box ABS - Halogen free, flame retardant (V2) Environment Indoor Number of splices 1-12 splices, 13-24 splices, 25-48 splices Number of connectors 1-12 connectors, 13-24 connectors, 25-48 connectors Connector type SC, LC

SOP24 optical distribution

Optical box SOP 12 (24) is designed for distribution of optical network in buildings by usage of optical cables or microduct system, for protection of optical connections and for interconnection of optical cables. It enables to install two standard splice trays for connection of optical fibers. The box could be placed as necessary in respective etages where the needed number of optical fibers from backbone path is terminated. It is wall mounting in indoor climate. Optical distribution box is designed for the placement of 12 (24) optical splices. The placement of optical fiber reserve up to 4 m The reel for cable reserves Easy assembly On-wall installation Break-out side plate   Coverage Degree IP 30 to EN 60529 Self-Extinguishing Degree V0 according to UL 94 Impact protection degree IK 10 to EN 50102 Color Light gray RAL 7035 Dimensions 296 × 206 × 108 mm Weight 2 kg Material – distribution box PC/ABS Inputs / Outputs 4 pre-moulded knockouts 161 × 60 mm, 4 pre-moulded knockouts 40 × 40 mm or rubber bushing ø 25 mm Environment Indoor Number of splices 1-12 splices, 13-24 splices Number of connectors Only splicing

SOP24 rubber bushing 40x40mm
