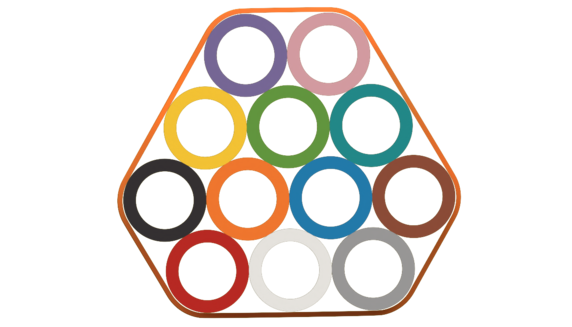

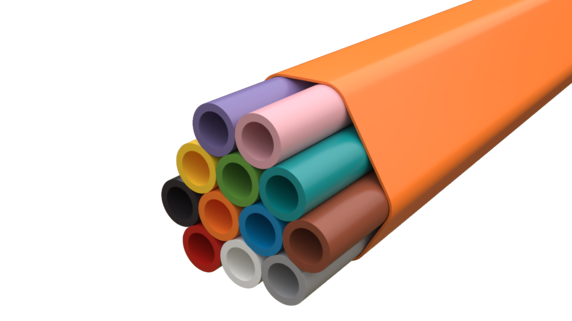

Microduct 12way Bundle 7-3.5mm

7/3.5mm bundles of microducts are designed for long term protection of fiber optical cables and are especially suitable for installation of micro cables. Direct Bury type of microducts are thick wall products that attain their mechanical robustness and functional performance through their intrinsic thick walls and need no further protection in underground installations. The microduct are made of high-density virgin polyethylene (HDPE). Every microduct has a permanent, co-extruded silicone compound inner liner giving a coefficient of friction of less than 0,1.

8 variants

Product number Product name Duct Colour Sheath Colour (Bundle) Tube Colour Sequence Compare
Product number 5043086
Product name 12way 7/3,5mm HDPE YELLOW Code Skanova, smooth, 1000m/dr
Duct Colour
Sheath Colour (Bundle) Yellow
Tube Colour Sequence EIA/TIA-598A
Product number 5043087
Product name 12way 7/3,5mm HDPE RED Code Skanova, smooth, 1000m/dr
Duct Colour
Sheath Colour (Bundle) Red
Tube Colour Sequence EIA/TIA-598A
Product number 5043088
Product name 12way 7/3,5mm HDPE VIOLET Code Skanova, smooth, 1000m/dr
Duct Colour
Sheath Colour (Bundle) Violet
Tube Colour Sequence EIA/TIA-598A
Product number 5043089
Product name 12way 7/3,5mm HDPE BLUE Code Skanova, smooth, 1000m/dr
Duct Colour
Sheath Colour (Bundle) Blue
Tube Colour Sequence EIA/TIA-598A
Product number 5043090
Product name 12way 7/3,5mm HDPE PINK Code Skanova, smooth, 1000m/dr
Duct Colour
Sheath Colour (Bundle) Pink
Tube Colour Sequence EIA/TIA-598A
Product number 5044264
Product name 12way 7/3,5mm HDPE Transparent Code Skanova, smooth, 1000m/dr
Duct Colour
Sheath Colour (Bundle) White
Tube Colour Sequence EIA/TIA-598A
Product number 5044265
Product name 12way 7/3,5mm HDPE ORANGE Code Skanova, smooth, 1000m/dr
Duct Colour
Sheath Colour (Bundle) Orange
Tube Colour Sequence EIA/TIA-598A
Product number 5044266
Product name 12way 7/3,5mm HDPE GREEN Code Skanova, smooth, 1000m/dr
Duct Colour
Sheath Colour (Bundle) Green
Tube Colour Sequence EIA/TIA-598A

Download Data sheet
