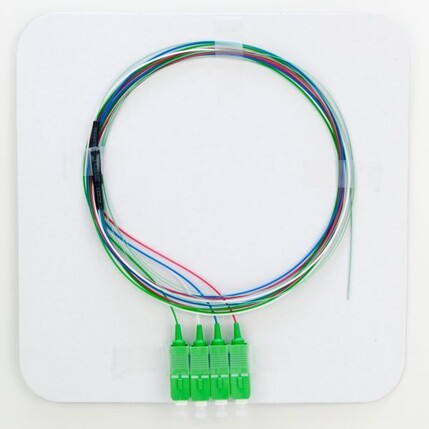

Fanout Singlemode G652D

Fibreoptic ribbon fanouts, singlemode G652A1 with pre-terminated connector. To be used for splicing on a fibreoptic ribbon cable. Halogen-free according to EN 60754-1/2 and flame retardant according to IEC 60332-2-2. Meets the requirements of IEC 61300, EN186000-1, EIA/TIA-455 and TELCORDIA GR-326-CORE/GR-63. ID marked with a unique serial number for full traceability to component-level. Each package comes with individual measurement protocols.

12 variants

Product number Product name Connector Type Fibre Count Fibre Colour Sequence Compare
Product number 11104002
Product name Fanout SM 2xSC/UPC-APC 1.5m G652D 0.5+1.0m=1.5m STD
Connector Type sc/upc & sc/apc
Fibre Count 2
Fibre Colour Sequence EIA/TIA-598A
Product number 11124015
Product name Fanout SM 2xSC/APC G652D 1.5m G652D 0.5+1.0m=1.5m STD
Connector Type SC/APC
Fibre Count 2
Fibre Colour Sequence EIA/TIA-598A
Product number 11125015
Product name Fanout SM 4xSC/APC G652D 1.5m G652D 0.5+1.0m=1.5m STD
Connector Type SC/APC
Fibre Count 4
Fibre Colour Sequence S12
Product number 5074405
Product name Fanout SM 4xLC/APC G652D 2m G652D 0.8+1.2m=2.0m STD
Connector Type LC/APC
Fibre Count 4
Fibre Colour Sequence S12
Product number 5074407
Product name Fanout SM 8xLC/APC G652D 2m G652D 0.8+1.2m=2.0m STD
Connector Type LC/APC
Fibre Count 8
Fibre Colour Sequence S12
Product number 5075440
Product name Fanout SM 4xSC/UPC G652D 2m G652D 0.8+1.2m=2.0m STD
Connector Type SC/UPC
Fibre Count 4
Fibre Colour Sequence S12
Product number 5075442
Product name Fanout SM 4xSC/APC G652D 2m G652D 0.8+1.2m=2.0m STD
Connector Type SC/APC
Fibre Count 4
Fibre Colour Sequence S12
Product number 5075444
Product name Fanout SM 2xSC/UPC G652D 2m G652D 0.8+1.2m=2m STD
Connector Type SC/UPC
Fibre Count 2
Fibre Colour Sequence EIA/TIA-598A
Product number 5075445
Product name Fanout SM 2xSC/UPC G652D 1.5m G652D 0.5+1.0m=1.5m STD
Connector Type SC/UPC
Fibre Count 2
Fibre Colour Sequence EIA/TIA-598A
Product number 5075446
Product name Fanout SM 4xSC/UPC-UPC-APC-APC G652D 0.8+1.2m=2.0m STD
Connector Type sc/upc & sc/apc
Fibre Count 4
Fibre Colour Sequence S12
Product number 5075447
Product name Fanout SM 4xLC/UPC G652D 2m G652D 0.8+1.2m=2.0m STD
Connector Type LC/UPC
Fibre Count 4
Fibre Colour Sequence S12
Product number 5075448
Product name Fanout SM 4xSC/UPC-APC-UPC-APC G652D 0.8+1.2m=2.0m STD
Connector Type sc/upc & sc/apc
Fibre Count 4
Fibre Colour Sequence S12

Download Data sheet
