MDB-FA 144F optical distribution box IP65 incl. trays, 4xPG9, midspan

Product code 84011108 Copy
Sales unit Pcs Copy
ETIM-Class EC002067 Copy
  • Product specifications

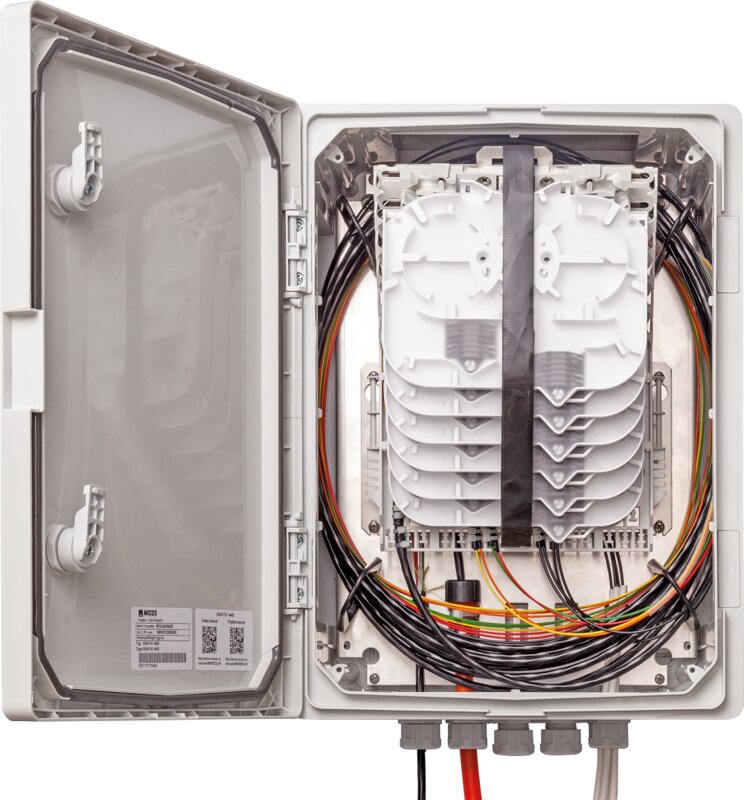

    Optical distribution box MDB FA 144 is designed for the placement of 144 optical splices indoors and outdoor. The distribution box can be extended by a pole holder. A very suitable solution for spliced GPON networks.

    • Maximum capacity of 144 splices
    • Cable rings
    • Placement of a large slack inside the cable management
    • Removable splicing part
    • Possibility of placing PLC splitters inside the management (outside the trays)
    • 6x splice tray KM4 for 24 splices
    • Possibility of using ribbon fibers


    Inputs / Outputs (quantity × range) 4× 5.0-8.5 mm and midspan
    Grommets (type and number of used grommets) 4× PG9 and oval
    Ingress Protection IP65
    Impact Protection IK08
    Material ABS
    Color light gray RAL 7035
    Dimensions (H × W × D) 400 × 300 × 165 mm
    Weight 4 kg
    Environment indoor / outdoor
    Number of Splices 144
    Number of Connectors only splicing
  • Measurements
    Length 165 mm Copy
    Height 400 mm Copy
    Width 300 mm Copy
    Weight 4,000 g Copy
