MDB-FA 192F optical distribution box IP65 incl. trays, 6xPG9, midspan

Product code 84011109 Copy
Sales unit Pcs Copy
ETIM-Class EC002067 Copy
  • Product specifications

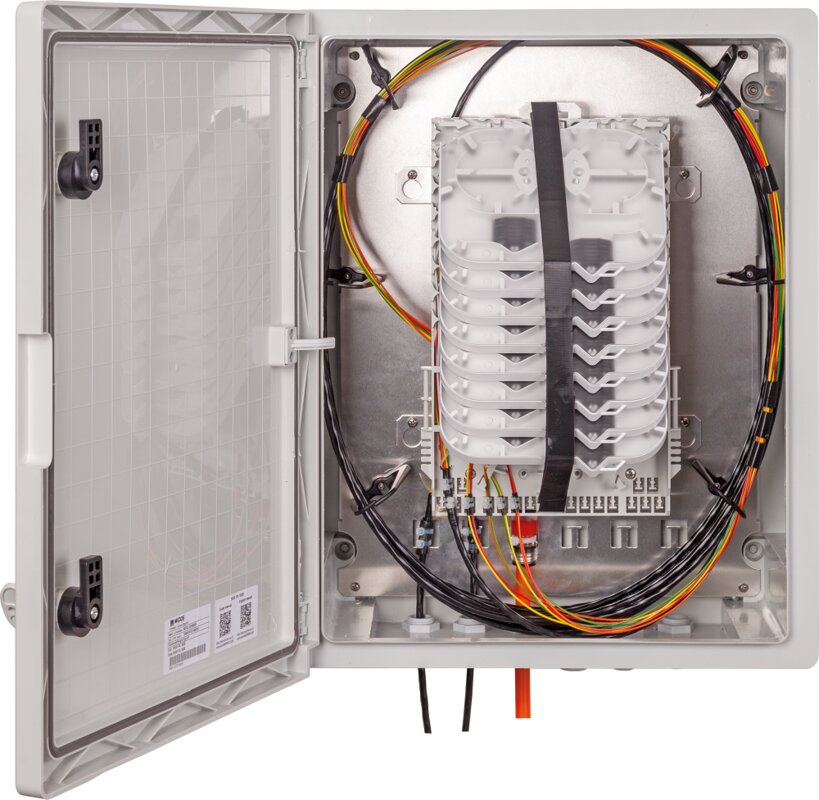

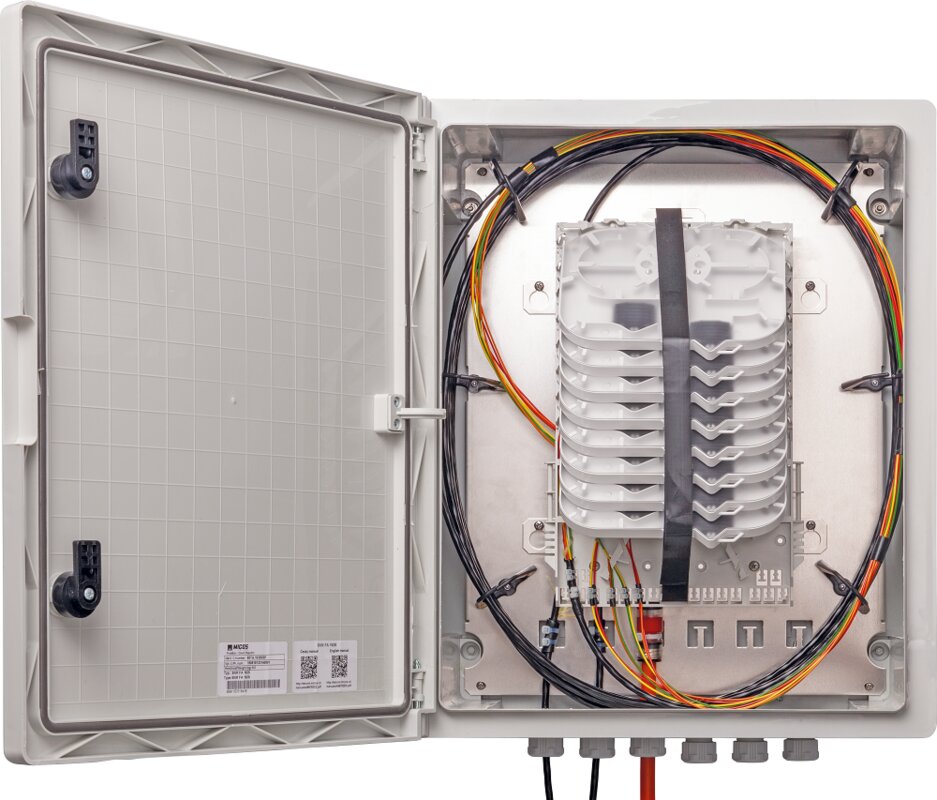

    Optical distribution box MDB FA 192 is designed for the placement of 144 optical splices indoors and outdoor. The distribution box can be extended by a pole holder. A very suitable solution for spliced GPON networks.

    • Maximum capacity of 192 splices
    • Cable rings
    • Placement of a large slack inside the cable management

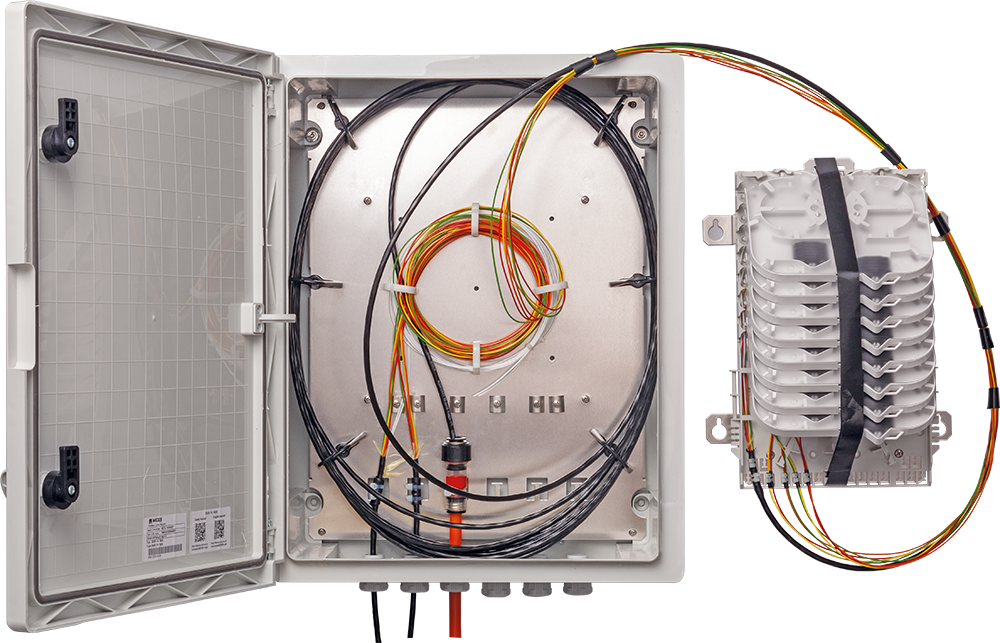

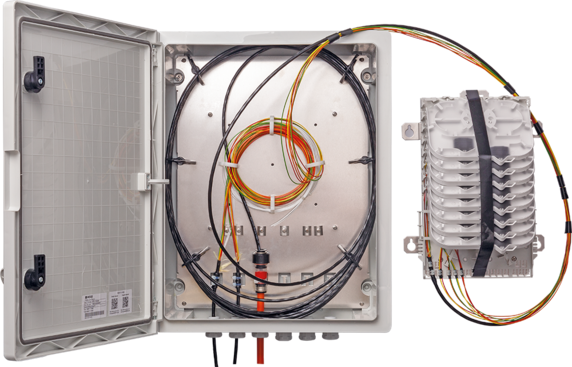

    • Removable splicing part
    • Possibility of placing PLC splitters inside the management (outside the trays)
    • 8x splice tray KM4 for 24 splices
    • Possibility of using ribbon fibers



    Inputs / Outputs (quantity × range) 6× 5.0-8.5 mm and midspan
    Grommets (type and number of used grommets) 6× PG9 and oval
    Ingress Protection IP65
    Impact Protection IK08
    Material ABS
    Color light gray RAL 7035
    Dimensions (H × W × D) 500 × 400 × 175 mm
    Weight 5.5 kg
    Environment indoor / outdoor
    Number of Splices 192
    Number of Connectors only splicing
  • Measurements
    Length 175 mm Copy
    Height 500 mm Copy
    Width 400 mm Copy
    Weight 5,500 g Copy
  • Documents
    Data Sheets
    84011109-EN-FDV.pdf
