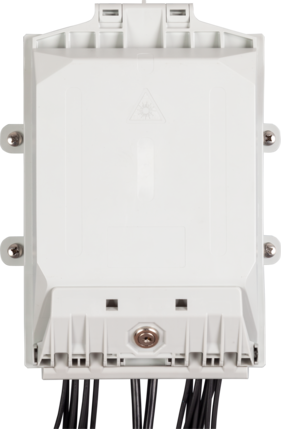

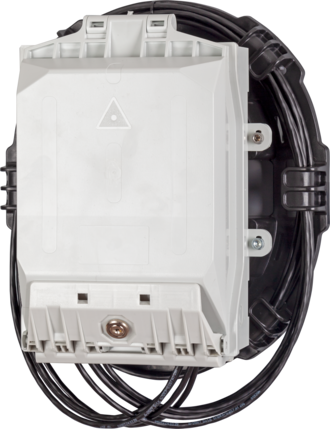

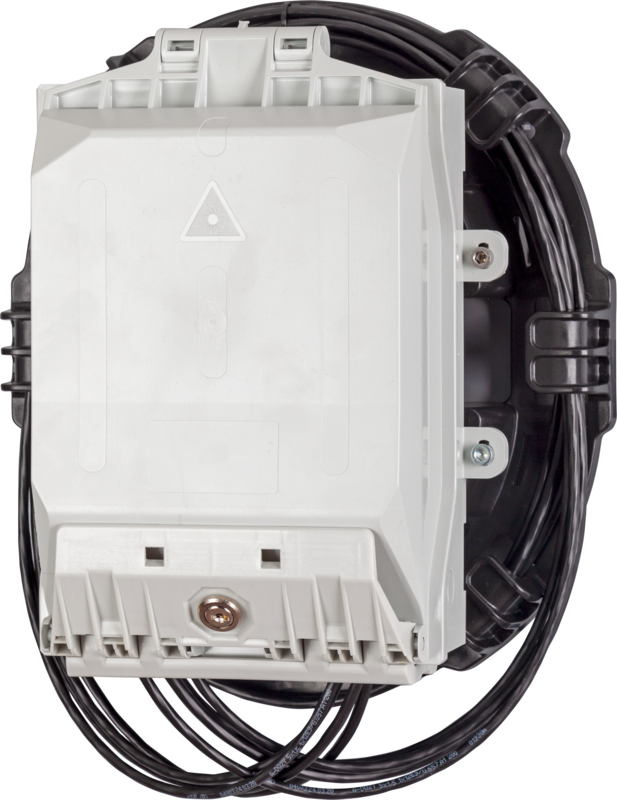

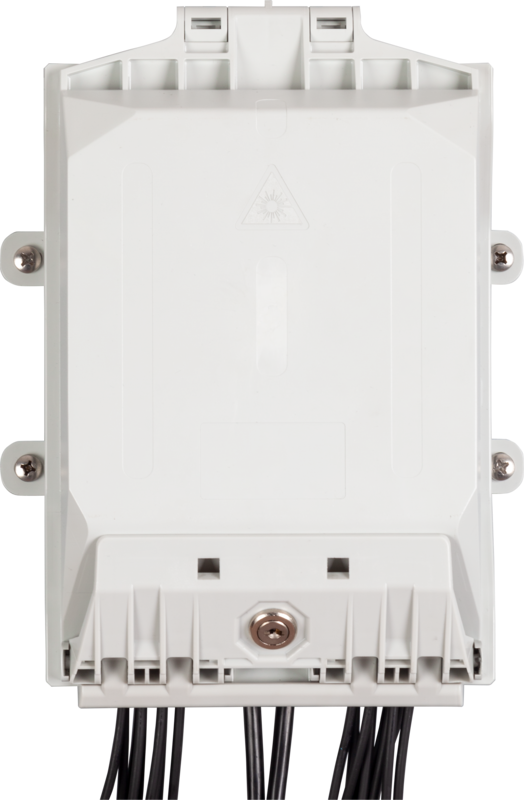

MDB-S optical distribution box IP65

The Fiber Optic Box MDB-S is a durable fiber optic box, designed for various fiber organizers inside. The box can be configured to address a wide range of fiber optic splice and/or connectivity applications for PON, GPON and 5G networks. The engineered design provides IP65 protection from water / dust ingress and IK10 impact resistance to keep your critical network connections safe inside. The MDB S provides the ideal splicing solution for multi dwelling unit fiber distribution points or outdoor pole mounted splice applications.

  • Capacity of up to 96 splices
  • Capacity of up to 24× SC / 48× LC connector
  • Multiple cable or tube entry ports on all sides of the box to increase installation flexibility
  • Top outputs – PG grommets for using outdoors, Grommets System for using indoors
  • Support for various fiber organizers
  • Fiber Optic Tray KM 6 for up to 24 splices (4 pcs max.)
  • Holder for 12 pcs of adapters (Simplex, Duplex or LC Quad)
  • Optional placing of PLC Splitters in the management (outside a tray)
  • Removable internal fiber management chassis to enable maximum access
  • Support for ribbon fibers
  • Increased durability, impact protection and water / dust ingress resistance (IP65, IK10)

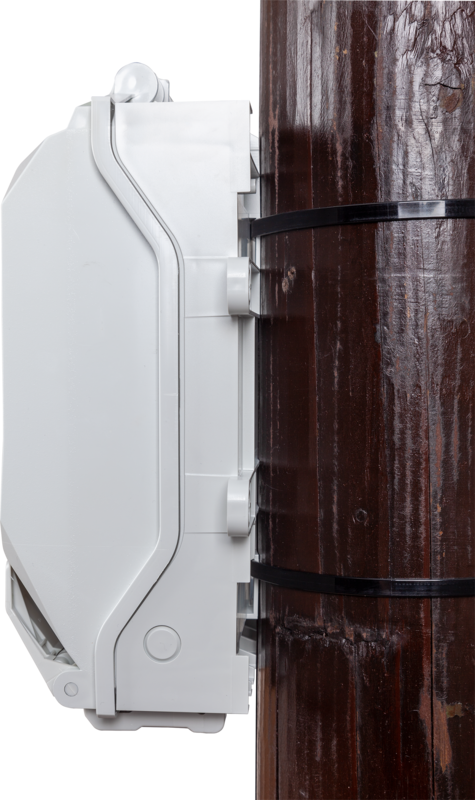

  • Integrated pole bracket
  • Suitable for all types of networks

3 variants
