ODF 19 1U 24xSCD blownfiber Comb for 48 5mm microducts

Product code 5057749 Copy
Sales unit Pcs Copy
ETIM-Class EC001130 Copy
  • Product specifications

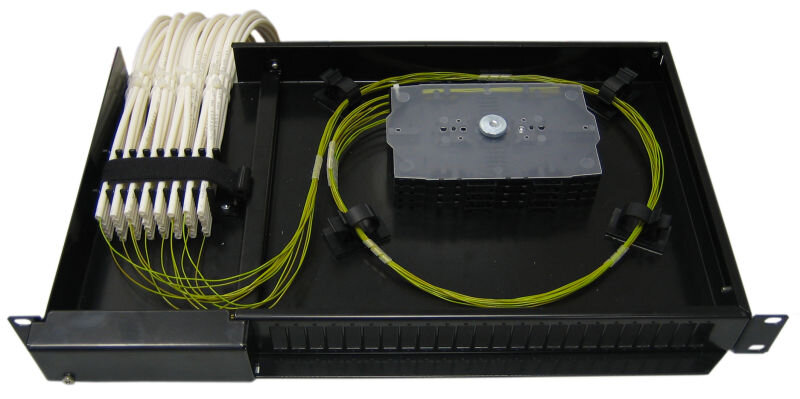

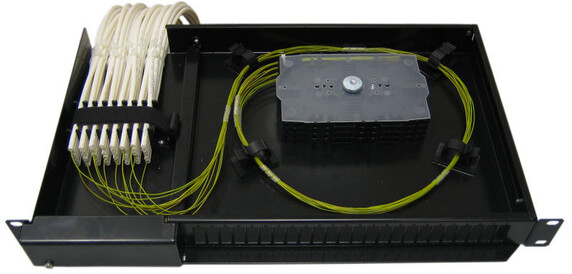

    The draw-out-type ABF ODF (optical distribution frame) is designed for the placement of up to 48 optical SC connectors or 96 LC connectors and 48 microtubes indoors. Divided into two sections, one section handles the microtubes and the other handles fibre and termination. The solution provides full access from the front for easy installation and future expansions.

    • Design: For air blown fiber (APF) installation
    • Capacity fibre: Up to 48 SC or 96 LC optical connectors (24 SCD or 48 LCQ adaptors)

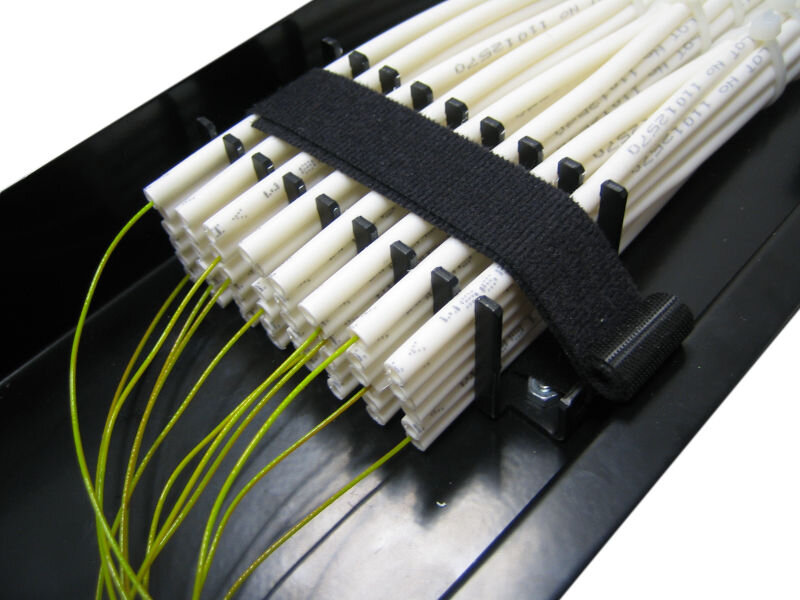

    • Capacity microtubes: Up to 48 microtubes 5 mm
    • Needle holder for optical splice trays
    • Installation into a 19" base
    • Height: 1U
    • Depth: 290 mm
    • Material: Black metal
    • Option: Tube clamp 24 microtubes 7 mm (ordered separately)
  • Measurements
    Length 285 mm Copy
    Height 43.6 mm Copy
    Width 482.5 mm Copy
    Weight 4,915 g Copy
  • Documents
    Data Sheets
    5057749-EN-FDV.pdf
  • Technical Specifications - ODFs
    Fibre Count 48 Copy
    Adapter Plate 24xsc duplex Copy
    Micro Duct Bracket 48x5mm Copy
    Sliding Enclosure Yes Copy
    Mounting Type 19” rack Copy
    Number of Rack Spaces 1 U Copy
    Colour Black RAL 9005 Copy
    Material Powder Coated Steel Sheet Copy
    Environment Indoor Copy
