SOP24 optical distribution
| Product code | 5062825 | |
|---|---|---|
| Sales unit | Pcs | |
| ETIM-Class | EC002067 |
-
Product specifications

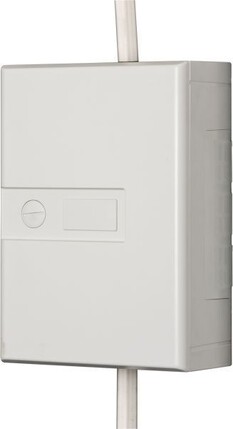

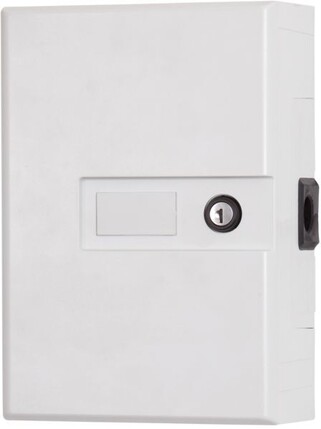

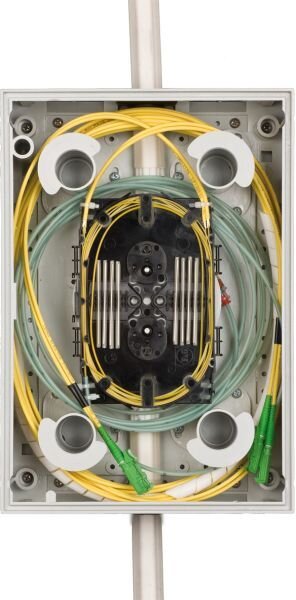

Optical box SOP 12 (24) is designed for distribution of optical network in buildings by usage of optical cables or microduct system, for protection of optical connections and for interconnection of optical cables. It enables to install two standard splice trays for connection of optical fibers. The box could be placed as necessary in respective etages where the needed number of optical fibers from backbone path is terminated. It is wall mounting in indoor climate. Optical distribution box is designed for the placement of 12 (24) optical splices.
- The placement of optical fiber reserve up to 4 m
- The reel for cable reserves
- Easy assembly
- On-wall installation

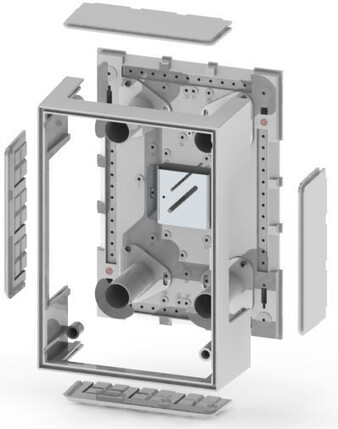

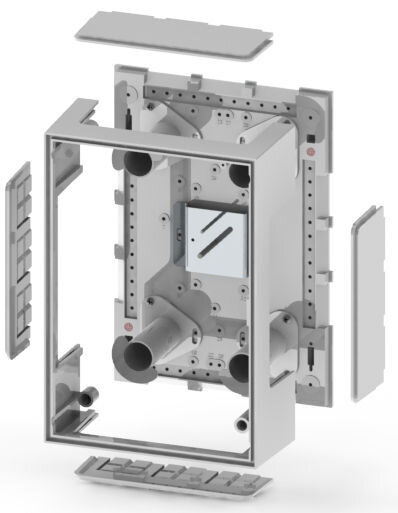

- Break-out side plate
Coverage Degree IP 30 to EN 60529 Self-Extinguishing Degree V0 according to UL 94 Impact protection degree IK 10 to EN 50102 Color Light gray RAL 7035 Dimensions 296 × 206 × 108 mm Weight 2 kg Material – distribution box PC/ABS Inputs / Outputs 4 pre-moulded knockouts 161 × 60 mm, 4 pre-moulded knockouts 40 × 40 mm or rubber bushing ø 25 mm Environment Indoor Number of splices 1-12 splices, 13-24 splices Number of connectors Only splicing -
Measurements
Length 322 mm Height 112 mm Width 220 mm Weight 1,300 g -
