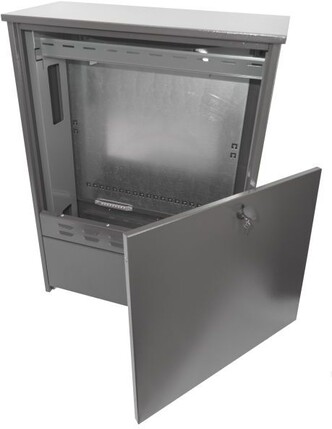

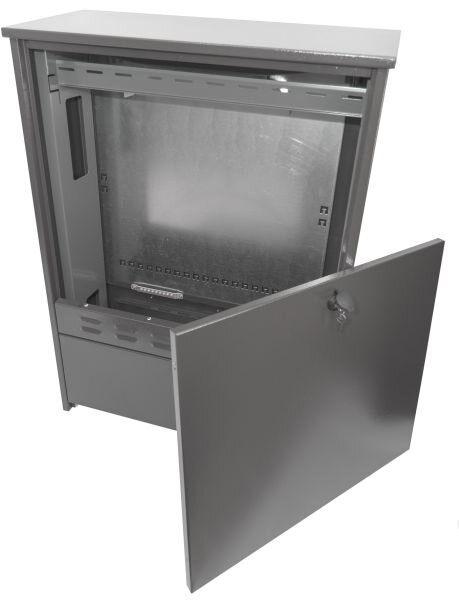

Street side cabinet, GRAY RAL 7037, 931x767x314

Product code 5060577 Copy
Sales unit Pcs Copy
ETIM-Class EC002501 Copy
  • Product specifications

    Outdoor street side cabinet designed as access point for copper and fiber optic communication networks. High quality sheet steel construction for extended durability. This cabinet is a perfect solution for use in construction of FTTx or similar type of communication networks. The extended underground base with length of 900 mm allows for direct burial or cementing.

    Front doors are removable without additional tools for easy and quick access. Cabinets are equipped with standard cylinder type lock. Supplied with adjustable underground base, metal mounting plate, lock, ventilation flanges, coiling for cable/duct and cable guide cross rail.

    • Dimensions: 931 x 768 x 314 mm
    • Installation depth: 271 mm
    • Mounting plate HxW: 700 x 690 mm
    • Protection class (EN 60529): IP44
    • Impact strength (EN 50102): IK 10
    • Corrosivity class (EN ISO 9223 and 12944-2): C3
    • Cabinet material: Electrolyte galvanized steel 1.5mm
    • Material underground base: Hot-dip galvanized steel 1.5-2mm
    • Surface: Two layers of powder coating
    • Color: Gray RAL 7037
  • Measurements
    Weight 47,000 g Copy
  • Documents
    Data Sheets
    5060577-EN-FDV.pdf
  • Technical Specifications - Street Cabinets
    Environment Outdoor Copy
    Lockable Yes Copy
    IP Codes IP44 Copy
    Corrosivity class (EN ISO 9223 och 12944-2) C3 Copy
    Colour Gray RAL 7037 Copy
    Total height incl root 1,903 mm Copy
    Housing depth inside 271 mm Copy
    Material - Housing Elektrolyttforsinket stål Copy
    Material thickness - Housing 1.5 mm Copy
    Material - Root/Riser Varmforsinket stål Copy
    Material thickness - Root/Riser 2 mm Copy
    Protection finish Two Layers Powder Coating Copy
    Coilframe incl Yes Copy
    Mounting plate incl Yes Copy
    Mounting plate dimensions (HxW) 700x690 mm Copy
    Root incl Yes Copy
    Document Holder incl No Copy
    Ventilation Yes Copy
