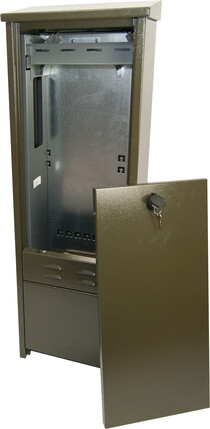

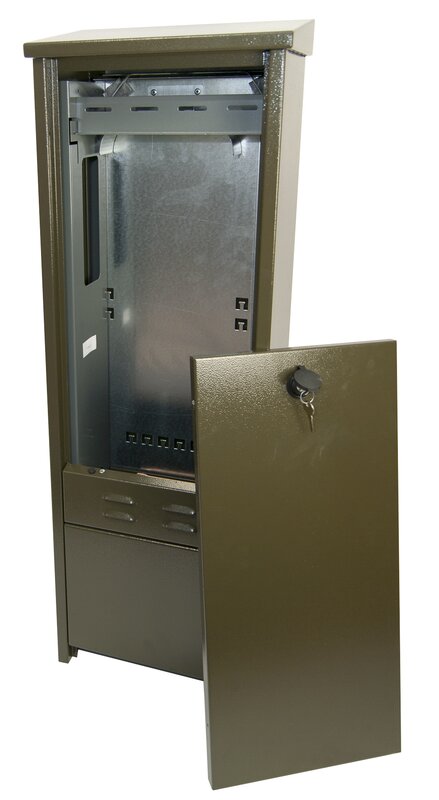

Street side cabinet, green 931x362x214

Product code 5060071 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC002501 Copy
  • Product specifications

    Outdoor street side cabinet designed as access point for copper and fiber optic communication networks. High quality sheet steel construction for extended durability. This cabinet is a perfect solution for use in construction of FTTx or similar type of communication networks. The extended underground base with length of 900 mm allows for direct burial or cementing.

    Front doors are removable without additional tools for easy and quick access. Cabinets are equipped with standard cylinder type lock. Supplied with adjustable underground base, metal mounting plate, lock, ventilation flanges, coiling for cable/duct and cable guide cross rail.

    • Dimensions: 931 x 362 x 214 mm
    • Installation depth: 171 mm
    • Mounting plate HxW: 700 x 285 mm
    • Protection class (EN 60529): IP44
    • Impact strength (EN 50102): IK 10
    • Corrosivity class (EN ISO 9223 and 12944-2): C3
    • Cabinet material: Electrolyte galvanized steel 1.5mm
    • Material underground base: Hot-dip galvanized steel 1.5-2mm
    • Surface: Two layers of powder coating
    • Color: Green RAL 6014
  • Measurements
    Length 1,100 mm Copy
    Height 280 mm Copy
    Width 420 mm Copy
    Weight 27,000 g Copy
  • Documents
    Data Sheets
    5060071-EN-FDV.pdf
  • Technical Specifications - Street Cabinets
    Environment Outdoor Copy
    Lockable Yes Copy
    IP Codes ip44 Copy
    Corrosivity class (EN ISO 9223 och 12944-2) c3 Copy
    Colour Green RAL 6014 Copy
    Total height incl root 1,903 mm Copy
    Housing depth inside 171 mm Copy
    Material - Housing Electrolyte galvanized steel Copy
    Material thickness - Housing 1.5 mm Copy
    Material - Root/Riser Hot-dip galvanized steel Copy
    Material thickness - Root/Riser 2 mm Copy
    Protection finish Two Layers Powder Coating Copy
    Coilframe incl Yes Copy
    Mounting plate incl Yes Copy
    Mounting plate dimensions (HxW) 700x285 mm Copy
    Root incl Yes Copy
    Document Holder incl No Copy
    Ventilation Yes Copy
