DI Seals Divisible 10-20mm

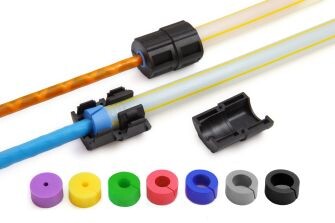

Easy to install gas and watertight seal for cables in micro ducts. The duct seal is easy to install on new and existing installations. Thanks to the clever design you no longer need to slide a seal all the way along the fibre cable to seal it against gas and water. Due to the compact design, the seals can be installed in all situations, even in locations with difficult access. Easy-to-use product, providing quick and efficient sealing of the end of the micro duct and thereby long-term protection of the installation from water, moisture and dirt entering the duct.
28 variants
Product number
5044424
Product name
Divisible duct seal 10mm Cable with OD 1.5-2.5mm.
For Duct Size
10mm
For Cable Diameter
1.5 - 2.5 mm
Product number
5044425
Product name
Divisible duct seal 10mm Cable with OD 2.5-3.5mm
For Duct Size
10mm
For Cable Diameter
2.5 - 3.5 mm
Product number
5044426
Product name
Divisible duct seal 10mm Cable with OD 3.5-5.0mm
For Duct Size
10mm
For Cable Diameter
3.5 - 5.0 mm
Product number
5044427
Product name
Divisible duct seal 10mm Cable with OD 5.0-6.5mm
For Duct Size
10mm
For Cable Diameter
5.0 - 6.5 mm
Product number
5044428
Product name
Divisible duct seal 10mm Cable with OD 6.5-8.0mm
For Duct Size
10mm
For Cable Diameter
6.5 - 8.0 mm
Product number
5044429
Product name
Divisible duct seal 12mm Cable with OD 1.5-2.5mm
For Duct Size
12mm
For Cable Diameter
1.5 - 2.5 mm
Product number
5044430
Product name
Divisible duct seal 12mm Cable with OD 2.5-3.5mm
For Duct Size
12mm
For Cable Diameter
2.5 - 3.5 mm
Product number
5044431
Product name
Divisible duct seal 12mm Cable with OD 3.5-5.0mm
For Duct Size
12mm
For Cable Diameter
3.5 - 5.0 mm
Product number
5044432
Product name
Divisible duct seal 12mm Cable with OD 5.0-6.5mm
For Duct Size
12mm
For Cable Diameter
5.0 - 6.5 mm
Product number
5044433
Product name
Divisible duct seal 12mm Cable with OD 6.5-8.0mm
For Duct Size
12mm
For Cable Diameter
6.5 - 8.0 mm
Product number
5044434
Product name
Divisible duct seal 12mm Cable with OD 7.0-8.5mm
For Duct Size
12mm
For Cable Diameter
7.0 - 8.5 mm
Product number
5044435
Product name
Divisible duct seal 14mm Cable with OD 1.5-2.5mm
For Duct Size
14mm
For Cable Diameter
1.5 - 2.5 mm
Product number
5044436
Product name
Divisible duct seal 14mm Cable with OD 2.5-3.5mm
For Duct Size
14mm
For Cable Diameter
2.5 - 3.5 mm
Product number
5044437
Product name
Divisible duct seal 14mm Cable with OD 3.5-5.0mm
For Duct Size
14mm
For Cable Diameter
3.5 - 5.0 mm
Product number
5044438
Product name
Divisible duct seal 14mm Cable with OD 5.0-6.5mm
For Duct Size
14mm
For Cable Diameter
5.0 - 6.5 mm
Product number
5044439
Product name
Divisible duct seal 14mm Cable with OD 6.5-8.0mm
For Duct Size
14mm
For Cable Diameter
6.5 - 8.0 mm
Product number
5044440
Product name
Divisible duct seal 14mm Cable with OD 8.0-10.0mm
For Duct Size
14mm
For Cable Diameter
8.0 - 10.0 mm
Product number
5044441
Product name
Divisible duct seal 16mm Cable with OD 1.5-2.5mm
For Duct Size
16mm
For Cable Diameter
1.5 - 2.5 mm
Product number
5044442
Product name
Divisible duct seal 16mm Cable with OD 2.5-3.5mm
For Duct Size
16mm
For Cable Diameter
2.5 - 3.5 mm
Product number
5044443
Product name
Divisible duct seal 16mm Cable with OD 3.5-5.0mm
For Duct Size
16mm
For Cable Diameter
3.5 - 5.0 mm
Product number
5044444
Product name
Divisible duct seal 16mm Cable with OD 5.0-6.5mm
For Duct Size
16mm
For Cable Diameter
5.0 - 6.5 mm
Product number
5044445
Product name
Divisible duct seal 16mm Cable with OD 6.5-8.0mm
For Duct Size
16mm
For Cable Diameter
6.5 - 8.0 mm
Product number
5044446
Product name
Divisible duct seal 16mm Cable with OD 8.0-10.0mm
For Duct Size
16mm
For Cable Diameter
8.0 - 10.0 mm
Product number
5044573
Product name
Divisible duct seal 20mm Cable with OD 3.5-5.0mm.
For Duct Size
20mm
For Cable Diameter
3.5 - 5.0 mm
Product number
5044574
Product name
Divisible duct seal 20mm Cable with OD 5.0-6.5mm.
For Duct Size
20mm
For Cable Diameter
5.0 - 6.5 mm
Product number
5044575
Product name
Divisible duct seal 20mm Cable with OD 6.5-8.0mm.
For Duct Size
20mm
For Cable Diameter
6.5 - 8.0 mm
Product number
5044576
Product name
Divisible duct seal 20mm Cable with OD 8.0-10.0mm.
For Duct Size
20mm
For Cable Diameter
8.0 - 10.0 mm
Product number
89007646
Product name
Divisible duct seal 20mm Cable with OD 9.4-12.0mm.
For Duct Size
20mm
For Cable Diameter
9.4 - 12.0 mm
