MICROSCOPE FIBER 400X W/STD 2.5mm ADAPTOR
| Product code | 1649567 | |
|---|---|---|
| Sales unit | Pcs | |
| ETIM-Class | EC001685 |
-
Product specifications

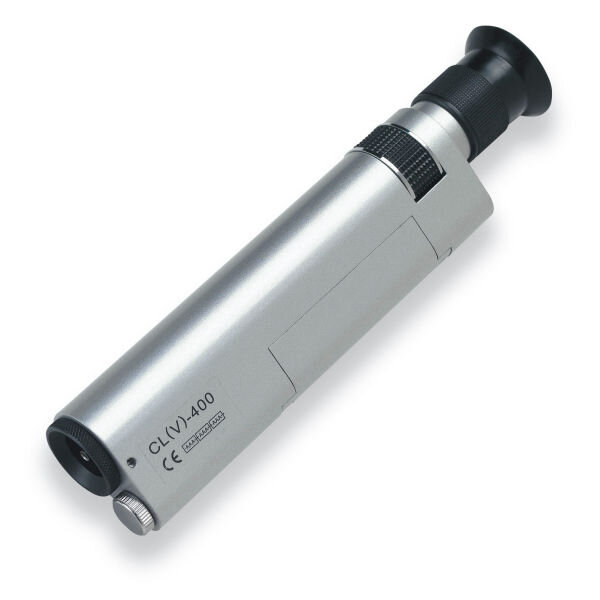

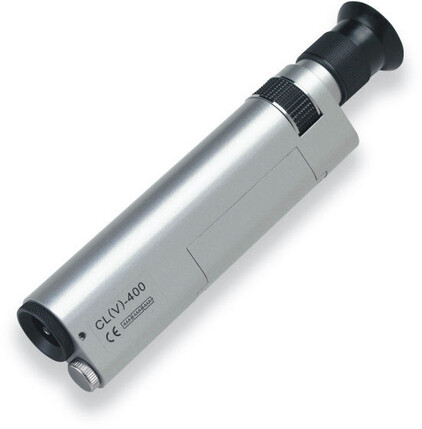

Fiber Inspection Microscope
400X Inspection Microscope For Inspecting Fiber Optic Cable
- LED-powered 400x microscope illuminates coaxial for fiber optic inspection
- Equipped with a focus wheel & achromatic glass objective to provide optimum image quality
- Integrated laser safety filters for viewing unlit fibers & side illumination port provides back-lighting as a fault finder to inspect jumpers
- Features a universal adapter for most 2.5 mm connector ferrules including ST, SC & FC
- Tool includes (3) AAA batteries & padded storage case
Material Aluminum Length 230 mm Weight 550 g -
Measurements
Length 275 mm Height 110 mm Width 105 mm Weight 676 g -
Documents
Data Sheets
-
Technical Specifications - Test & Measurement Equipment
Fibre Type Singlemode, Multimode Magnification 400 X Data Storage No Connector Type SC Average Laser Life Expectancy 100,000 h -
Physical Specifications - Test & Measurement Equipment
Weight 550 g Length 230 mm - Other variants
