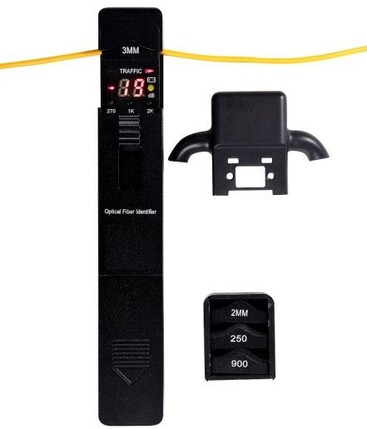

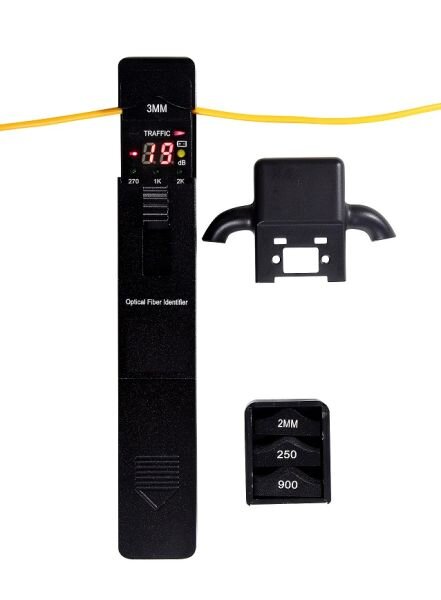

OPTIC FIBER IDENTIFIER 250um/900um/2mm/3mms fibre
| Product code | 16705001 | |
|---|---|---|
| Product type | OFI-20A | |
| Sales unit | Pcs | |
| ETIM-Class | EC000305 |
-
Product specifications
OFI-20A can detect optical signal presence, type and direction anywhere on fibers during a optical network deployment, maintenance or troubleshooting. With non-destructive macro-bend detection technology, it introduces no damage to tested fiber or interference to the service on fiber. OFI-20A is capable of identifying wide-spectrum signals (such as signals in CATV system) and can be used in SONET/SDH & DWDM systems tests.
●Fiber types: 250μm, 900μm, 2mm/3mm jacketed fiber
●Non-destructive detection
●Indication of signal presence, strength and direction
●CW/MOD tones detection
●Buzzer indication
● Handheld & sturdy
● CE, FCC certificates
-
Measurements
Length 250 mm Height 55 mm Width 80 mm Weight 415 g -
Documents
Data Sheets
-
Technical Specifications - Test & Measurement Equipment
Detector type InGaAs Battery Tye 9V Alkaline Battery Battery Life 6 h Power Save Feature No -
Physical Specifications - Test & Measurement Equipment
Weight 235 g Length 195 mm Width 35 mm Height 30 mm Relative Humidity 95 % Temperature ranges for Operation -20 ~ 50℃ Temperature ranges for transport and storage -40 ~70℃ - Other variants
