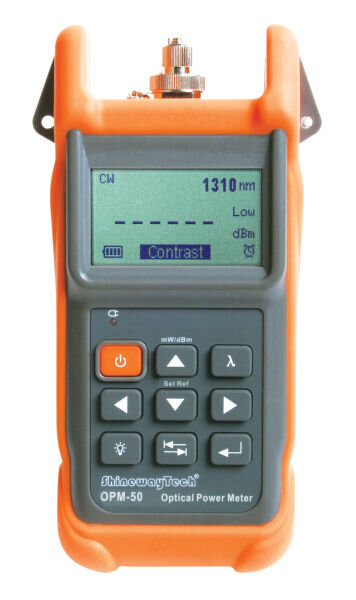

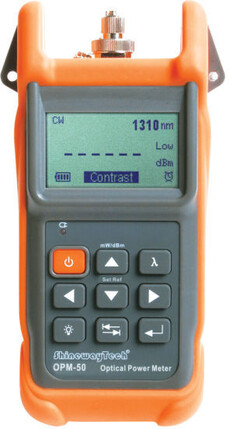

Optical Power Meter -50/+27 M Memory, Soft case, Software

Product code 16405004 Copy
Sales unit Pcs Copy
ETIM-Class EC000305 Copy
  • Product specifications

    OPM-50 paired with SLS-50 Intelligent Stabilized Laser Source can be used to identify fiber, measure attenuation and loss, verify continuity and evaluate fiber link transmission quality.
    Automatic Wavelength Identification:
    Compatible with the digital encryption protocols of SLS-50, OPM-50 can automatically identify the wavelength of the optical signals transmitted from SLS-50 and switch to the corresponding test mode, which greatly reduces the workload at both ends and avoids potential error.
    Remote Reference Value Setting:
    OPM-50 can receive the power parameters of digital-encrypted signal transmitted from SLS-50 as reference for precise link loss measurement even when the two units are far apart.
    Internal Clock & Fiber S/N Editable:
    Internal clock enables OPM-50 to save test data with time and editable fiber SN information.
    Compatible with FTTx Test:
    OPM-50 can be applied to measure Triple-play signals (1310nm, 1490nm and 1550nm) on Passive Optical Network (PON).

    ●Automatic wavelength identification

    ● Remote reference value setting

    ●FTTx applicable

    ●Internal clock & fiber S/N editable

    ●Memory of 1000 test records

    ● Data Transfer to PC via USB

    ●SB power charging

    ●No warm-up, quick start


    ●70 hours continuous operation

    ●Pocketsize, lightweight and easy-to-use

    ●CE FCC certificates

  • Measurements
    Length 240 mm Copy
    Height 55 mm Copy
    Width 55 mm Copy
    Weight 220 g Copy
  • Documents
  • Technical Specifications - Test & Measurement Equipment
    Fibre Type Singlemode, Multimode Copy
    Calibrated Wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm Copy
    Auto Wavelength Identification  Yes Copy
    Power Range -50 ~ +27dbm Copy
    Detector type InGaAs Copy
    Resolution 0.01 dB Copy
    Number Of Sampling Points 1000 Copy
    Data Storage Yes Copy
    Connectivity USB Copy
    Connector Type SC/UPC Copy
    Output Connector SC Copy
    Battery Tye Li-Ion Copy
    Battery Life 70 h Copy
    Power Save Feature Yes Copy
    Power Supply 230 vac Copy
  • Physical Specifications - Test & Measurement Equipment
    Weight 315 g Copy
    Length 177 mm Copy
    Width 80 mm Copy
    Height 44 mm Copy
    Relative Humidity 95 % Copy
    Temperature ranges for Operation 0ºc ~ 50ºc Copy
    Temperature ranges for transport and storage -20ºc ~ 70ºc Copy
