Miller 3 Hole Fiber Optic Stripper FO 103-T-250-J
| Product code | 1661939 | |
|---|---|---|
| Count | 1 | |
| Sales unit | Pcs | |
| ETIM-Class | EC000385 |
-
Product specifications

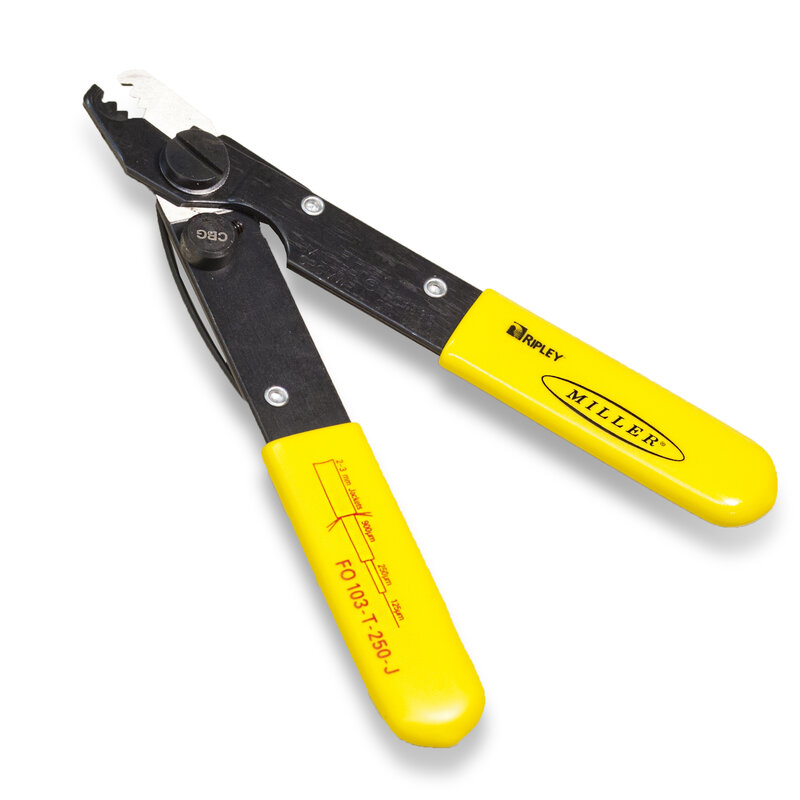

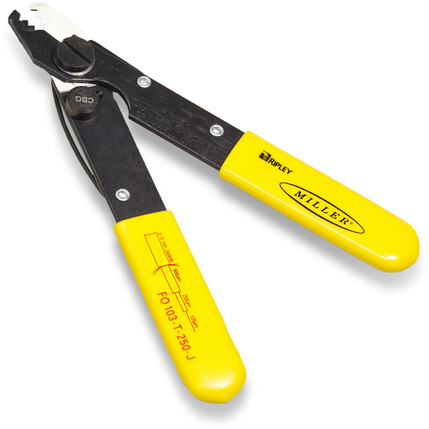

3 Hole Fiber Optic Stripper
- Three hole design efficiently removes 1.6 mm to 3 mm fiber jackets & buffers down to the 125 micron bare fiber in one compact tool that is factory-set & requires no adjustment
- Manufactured to precise tolerances, its diameter holes & V-openings in blade allow for accurate & clean stripping without scratching or nicking the bare fiber
- Pivot pin, spring & precision handles with printed stripping reference enhance the functionality & durability of the tool.
1st Hole Application 1.6 - 3 mm Jacket → 600 - 900 µm Tight Buffer 2nd Hole Application 900 µm Tight Buffer → 250 µm Buffer Coating 3rd Hole Application 250 µm Buffer Coating → 125 µm Bare Fiber Length 5.375ʺ (137 mm) Weight 2.5 oz (71 g) -
Measurements
Length 140 mm Height 15 mm Width 65 mm Weight 97 g -
