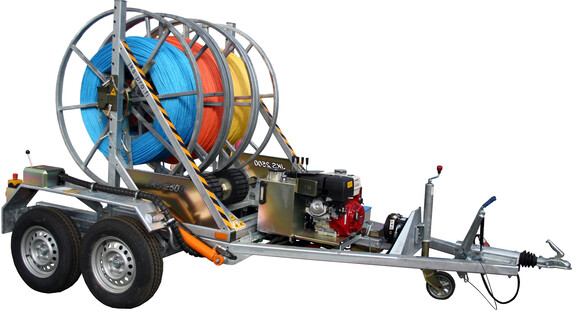

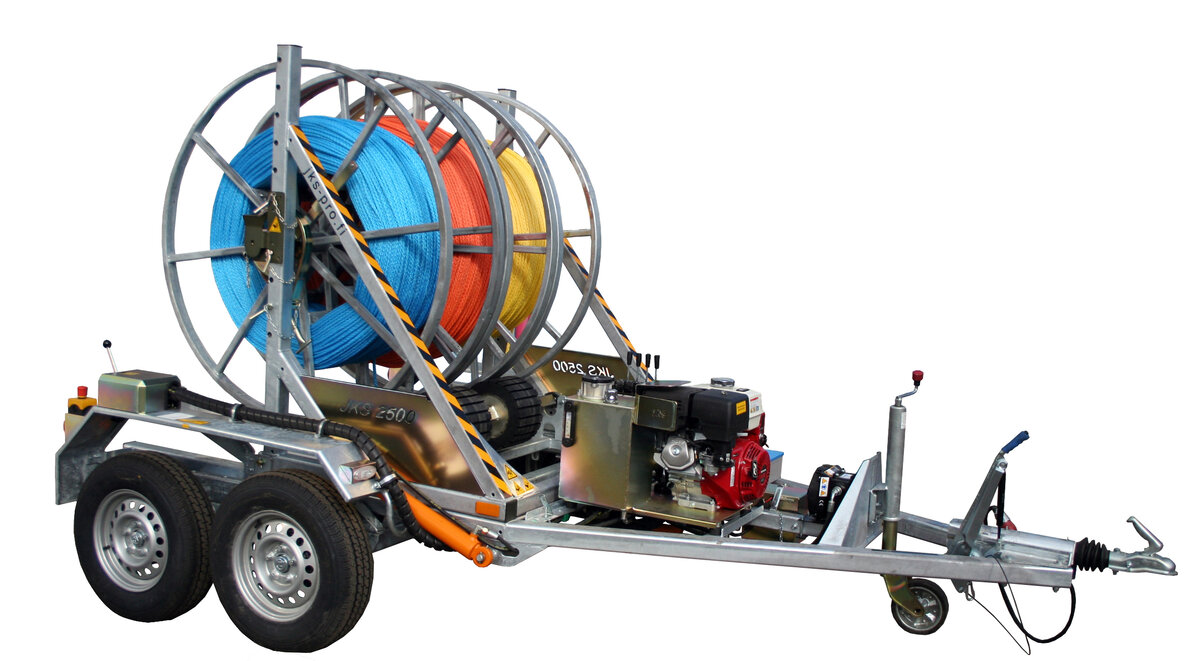

JKS2500 cable trailer

Product code 1188007 Copy
Product type JKS2500 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC001203 Copy
  • Product specifications

    Standard equipment:

    • Bogie AL-KO axles

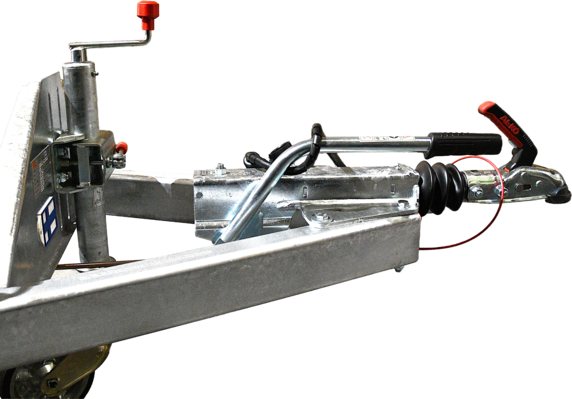

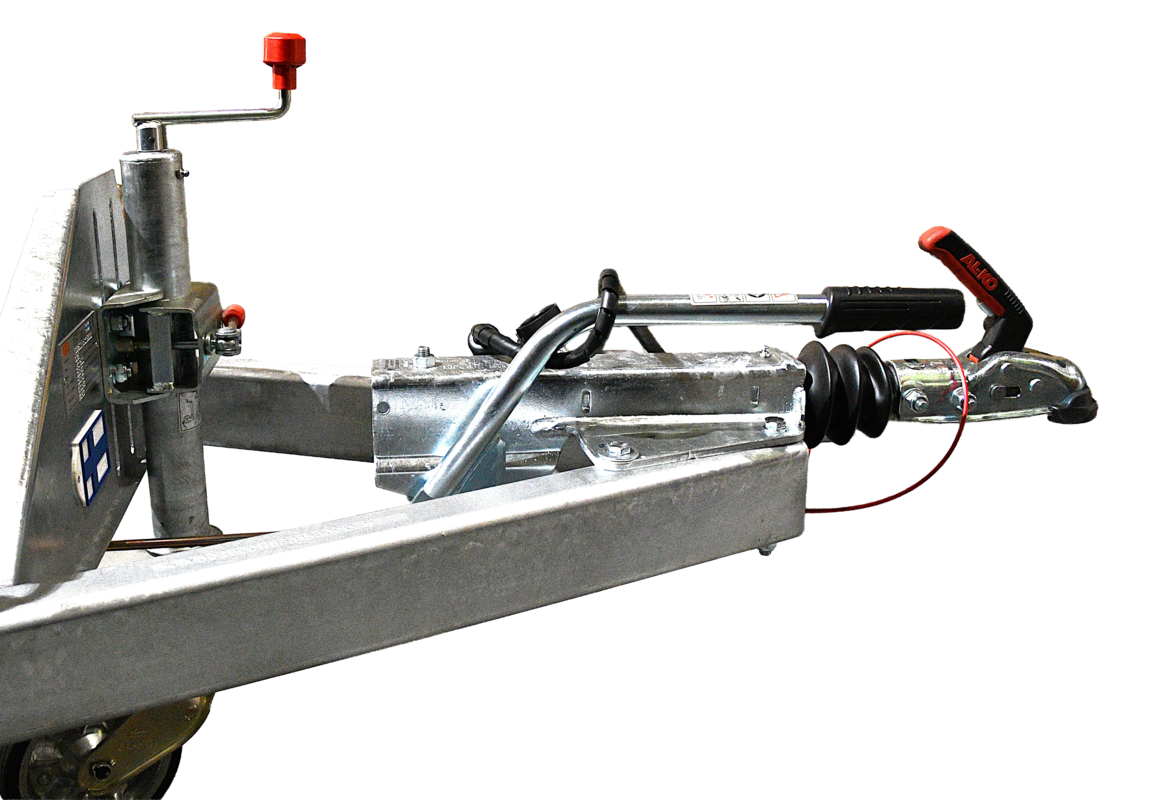

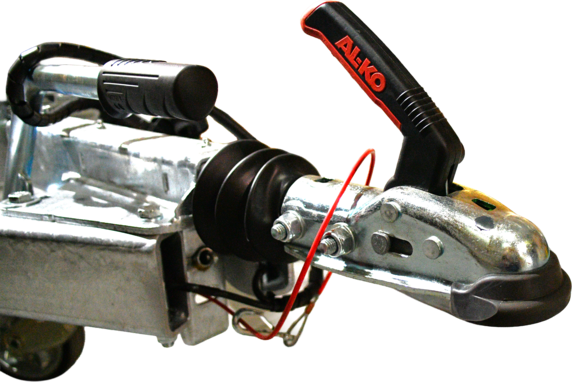

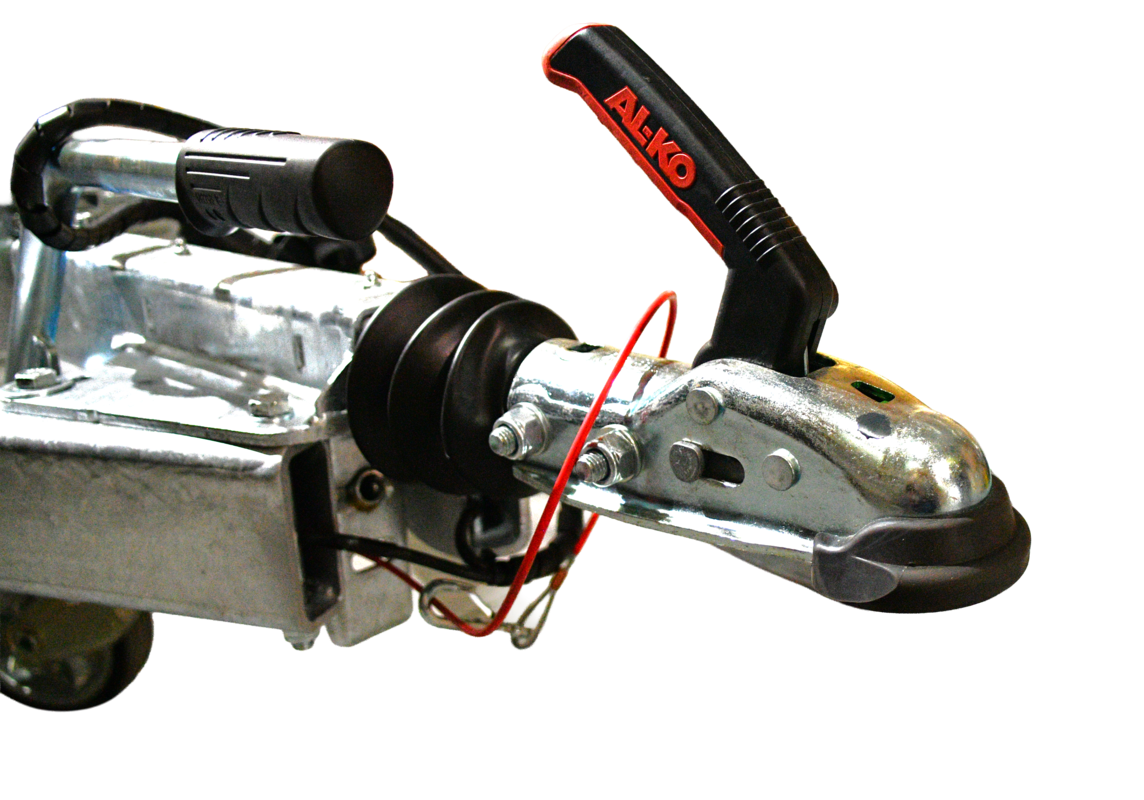

    • Overrun brakes with automatic reverse and parking brake

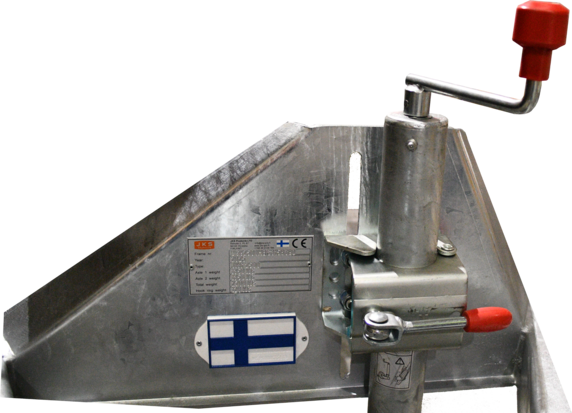

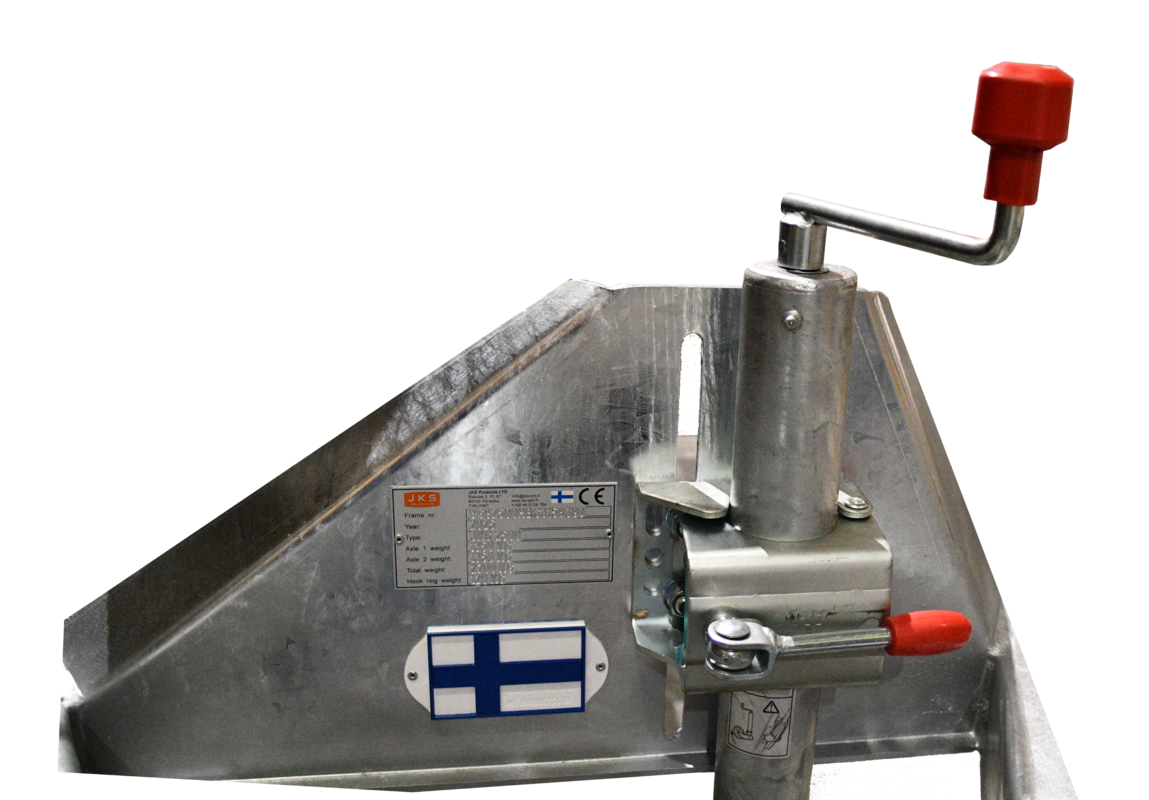

    • Adjustable jockey wheel
    • Automatic locking system for drum stand

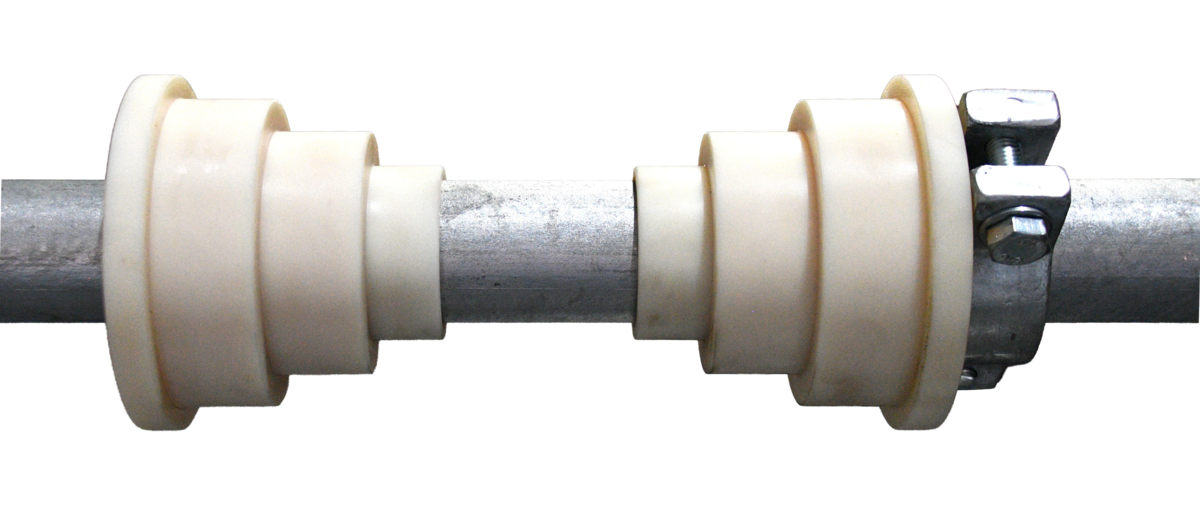

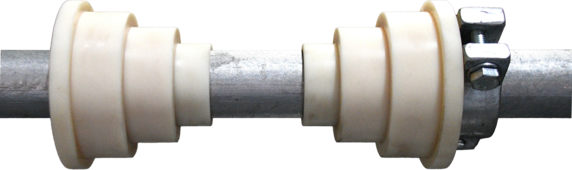

    • Drum axle w/ nylon cones for hole Ø -dia 77,107,133mm

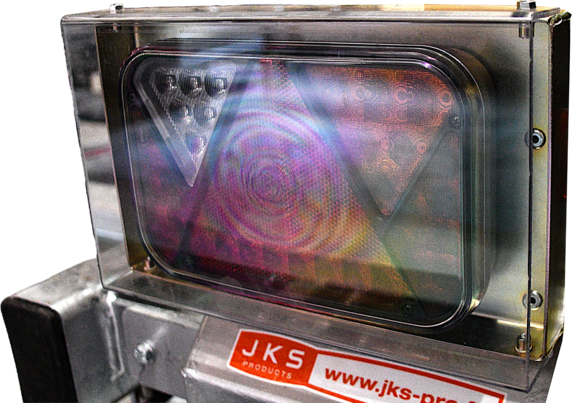

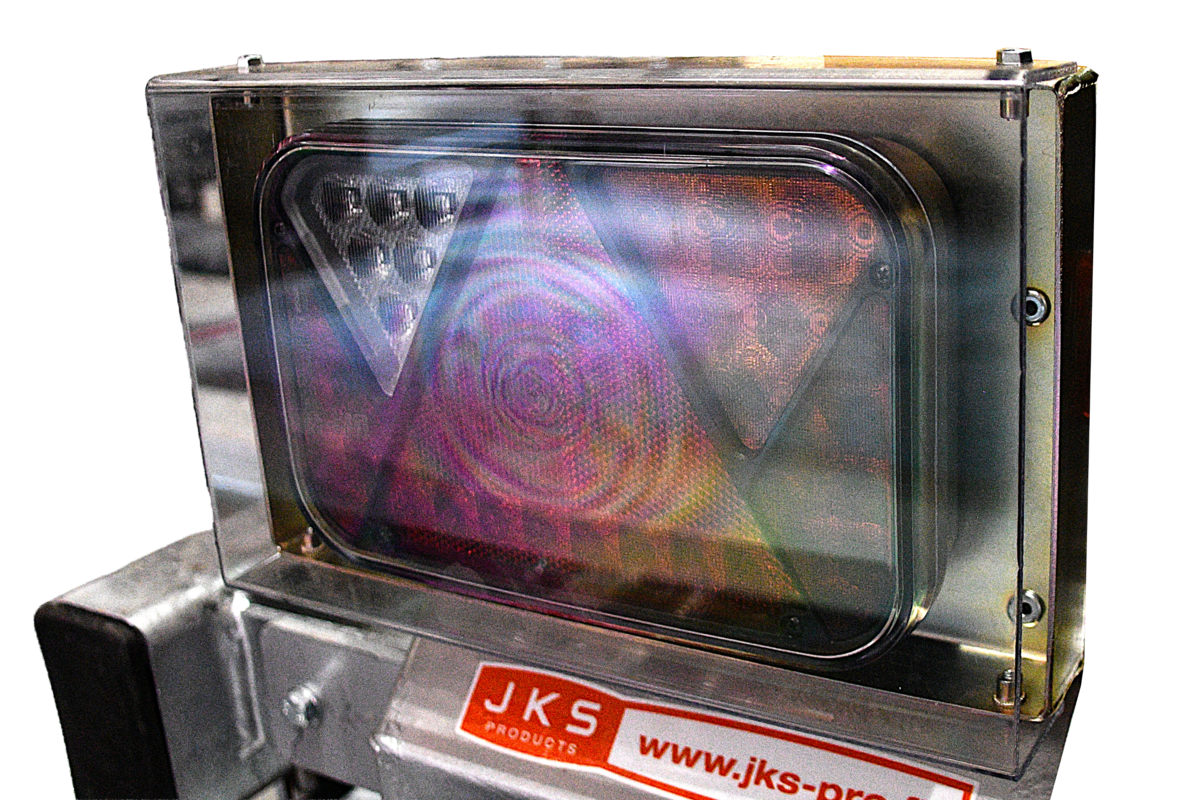

    • 12v led-light system
    • Turnable licence plate holder w/lights

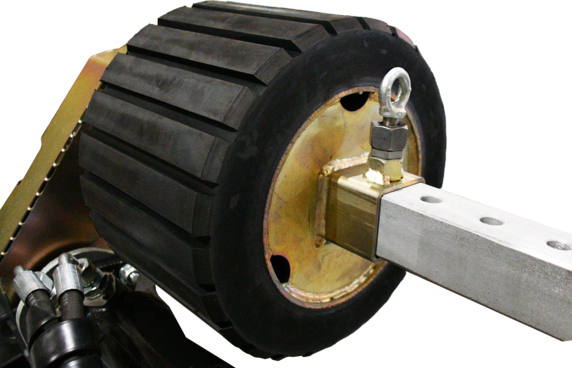

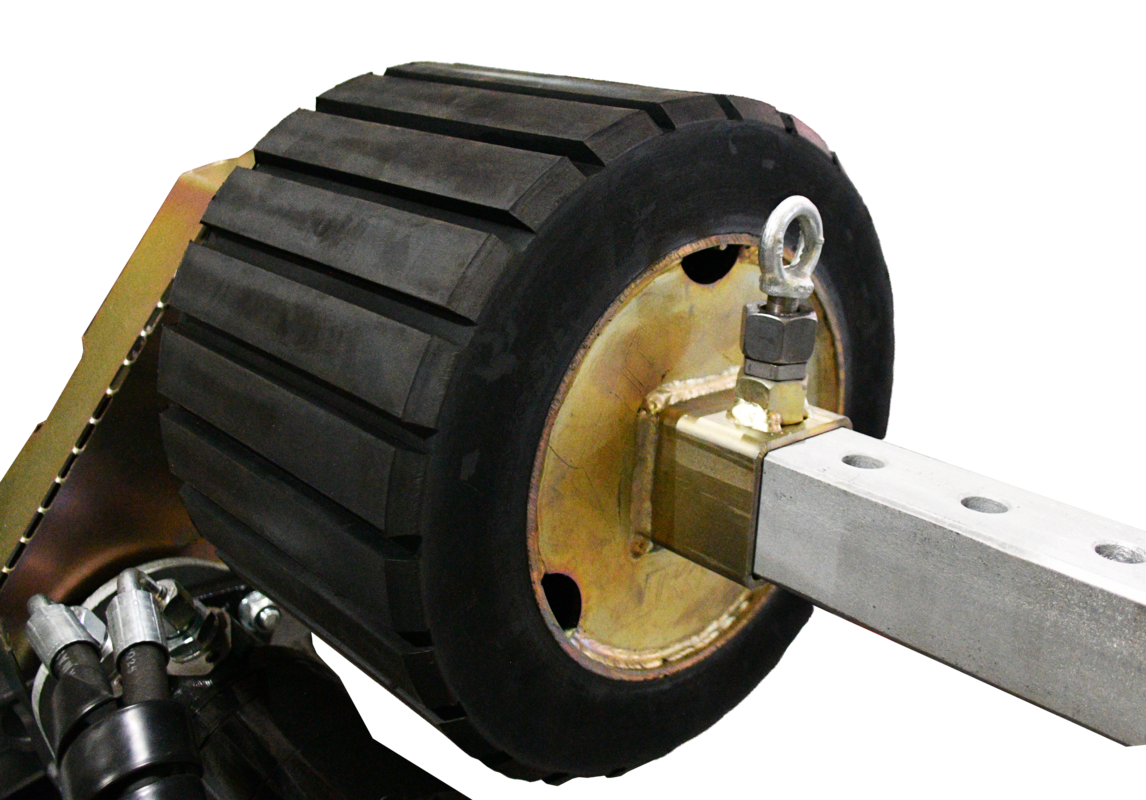

    • Drum spinning device with 200mm wide solid rubber tires and fast locking mechanism

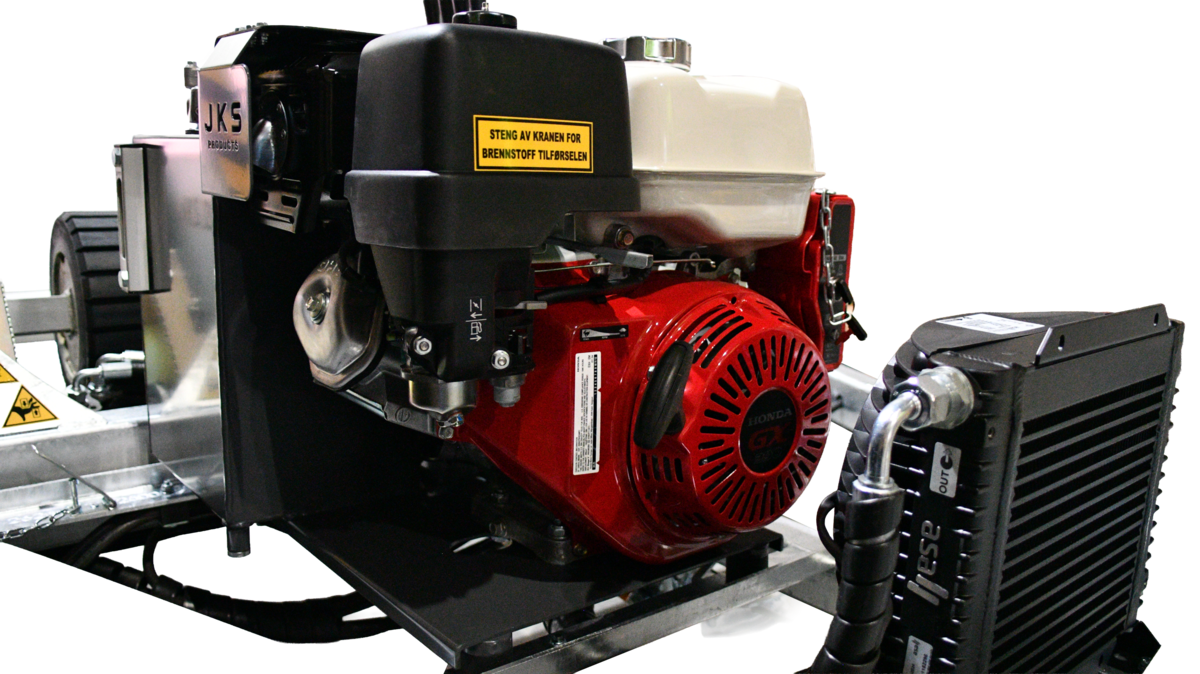

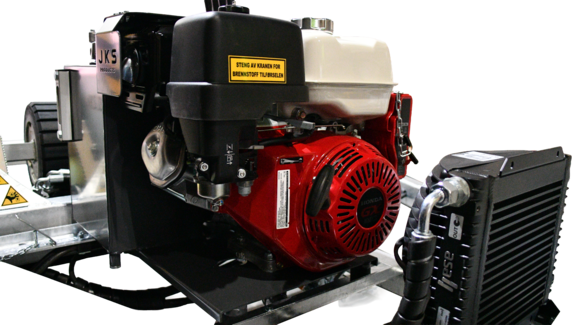

    • Honda 13HK gasoline engine

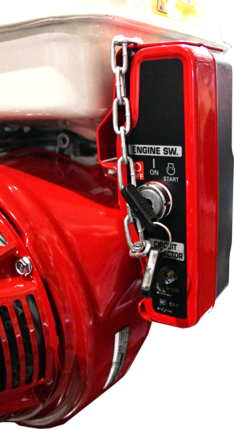

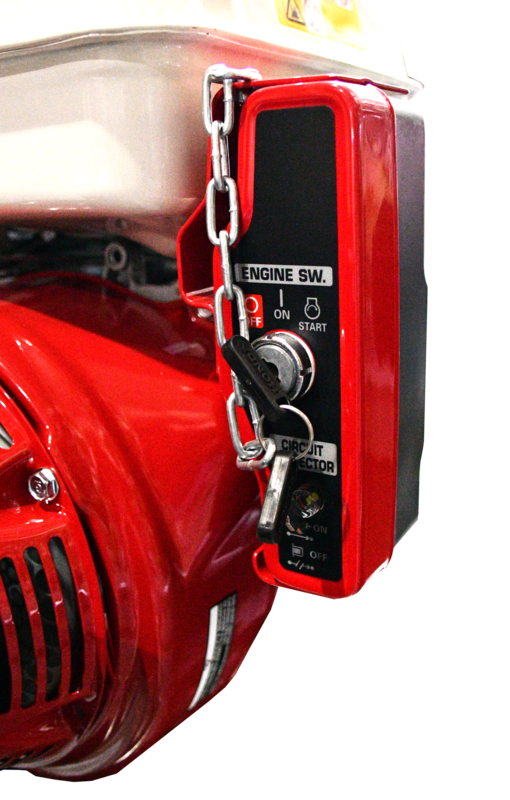

    • Electric start

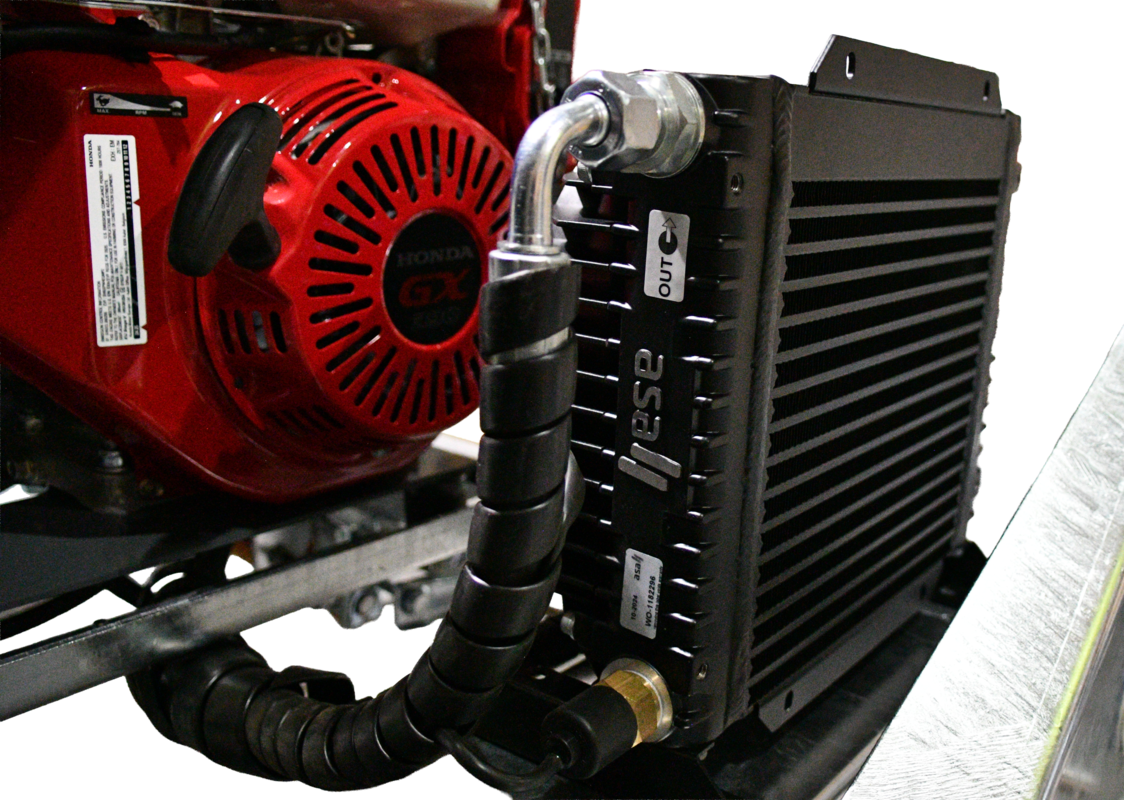

    • EC hydraulic oil cooler 12V
    • drum spinning with brake motor
    • Hydraulic drum lift
    • Hydraulic back support
    • hydraulic transfer for drum spinning machinery

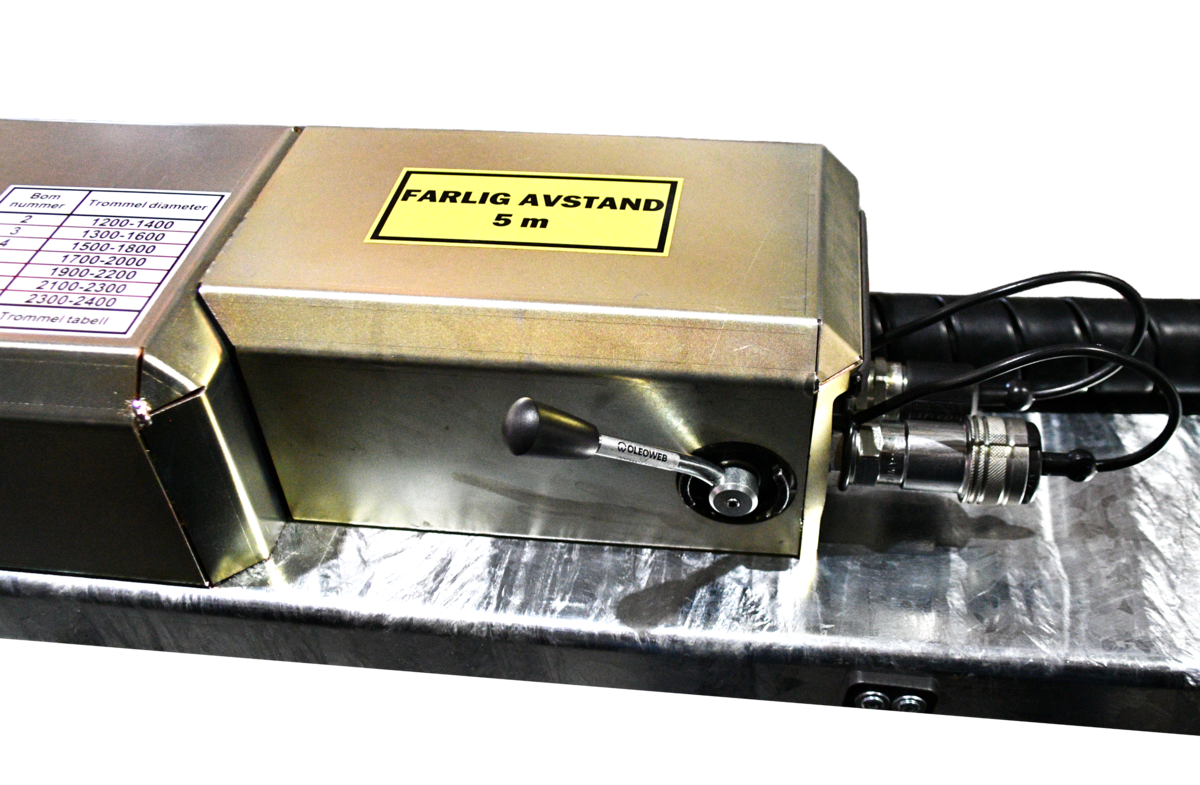

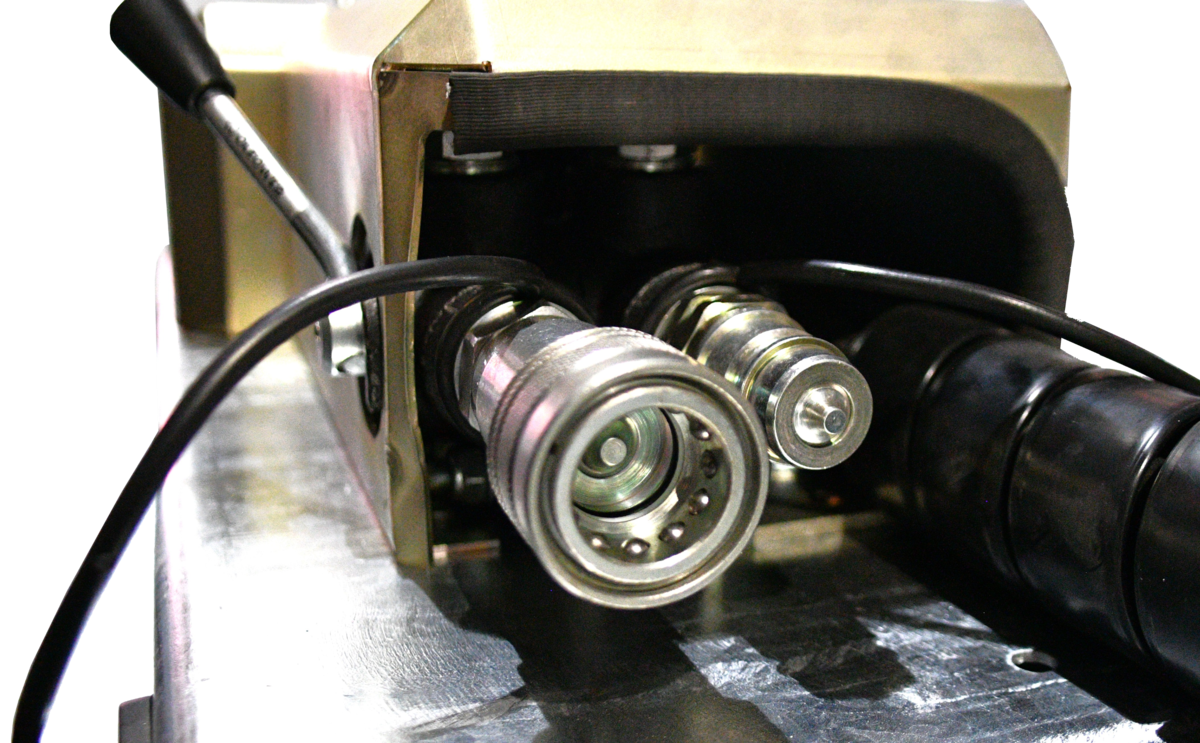

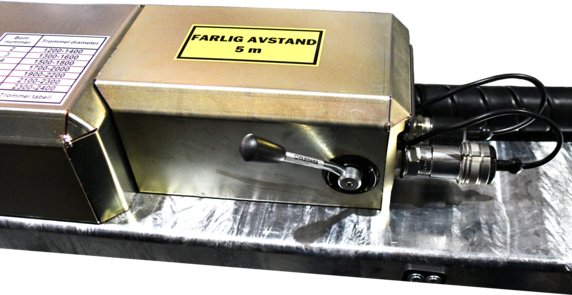

    • Extra hydraulisc outlet
    • 12V outlet





  • Measurements
    Length 4,300 mm Copy
    Height 2,200 mm Copy
    Width 2,300 mm Copy
    Weight 960,000 g Copy
  • Documents
    Data Sheets
    1188007-EN-FDV.pdf
    Instructions for Use
    BA-Kabelvogn-JKS-2500-02-15.pdf
  • Cable Trailers
    Max Drum Size k24 / 2400mm Copy
    cable_trailers_max_drum_width 1430 mm Copy
    Reel Lifter Hydraulic Copy
    Max Load Capacity 2000 kg Copy
    Max Total Load 2700 kg Copy
