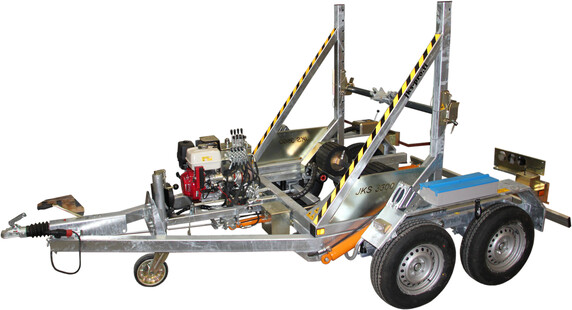

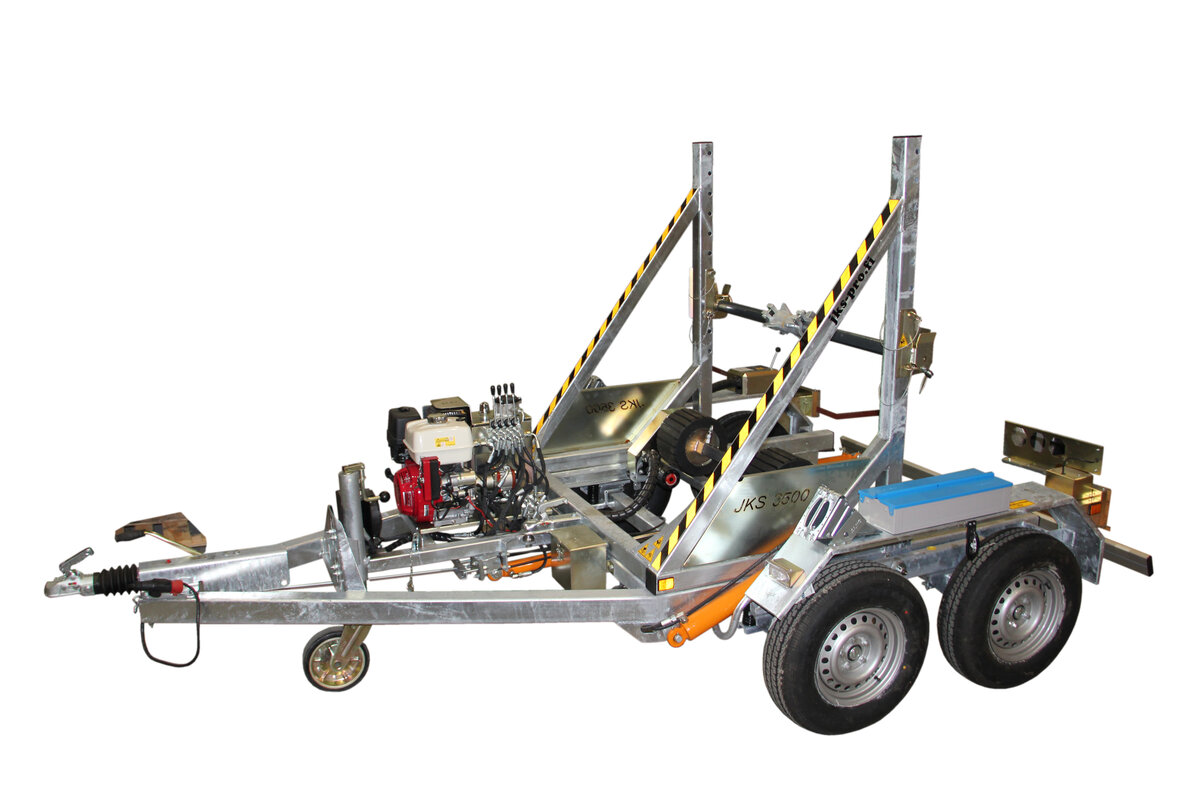

JKS3500 cable trailer

Product code 1188008 Copy
Product type JKS3500 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC001203 Copy
  • Product specifications

    Standard equipment:

    • Bogie AL-KO axles

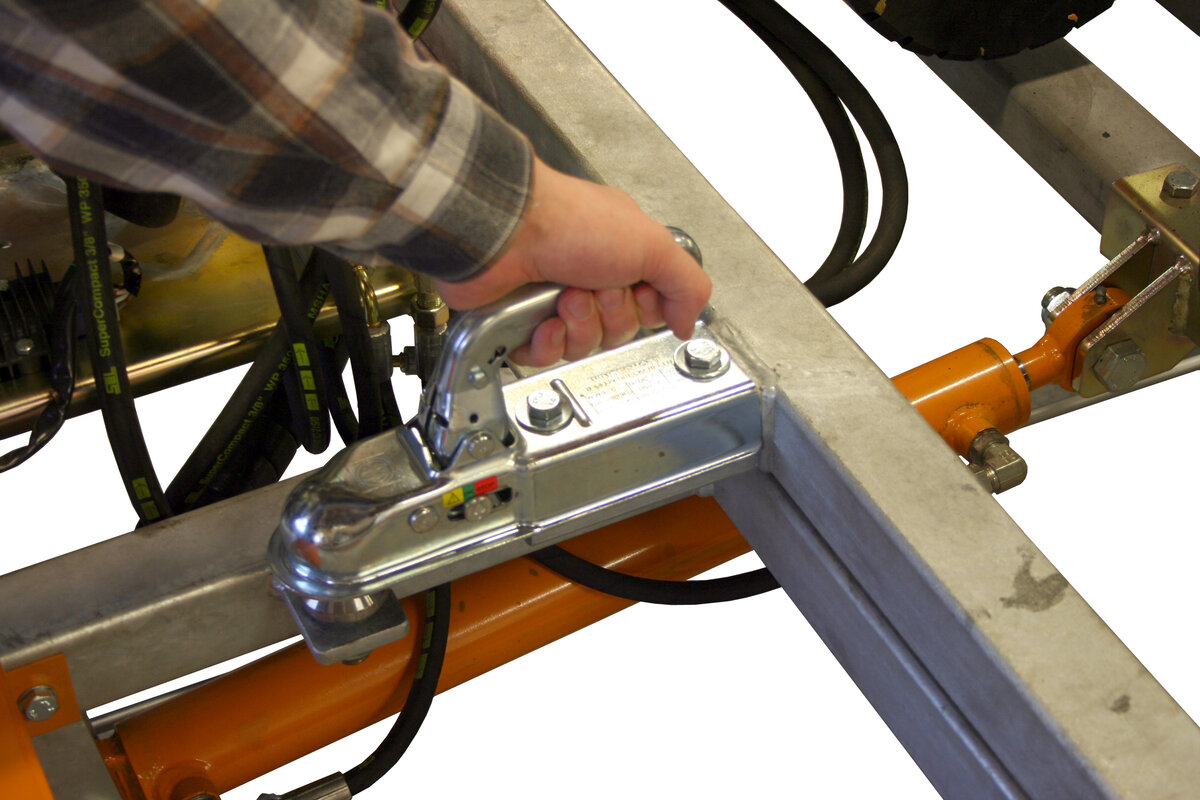

    • Overrun brakes with automatic reverse and parking brake

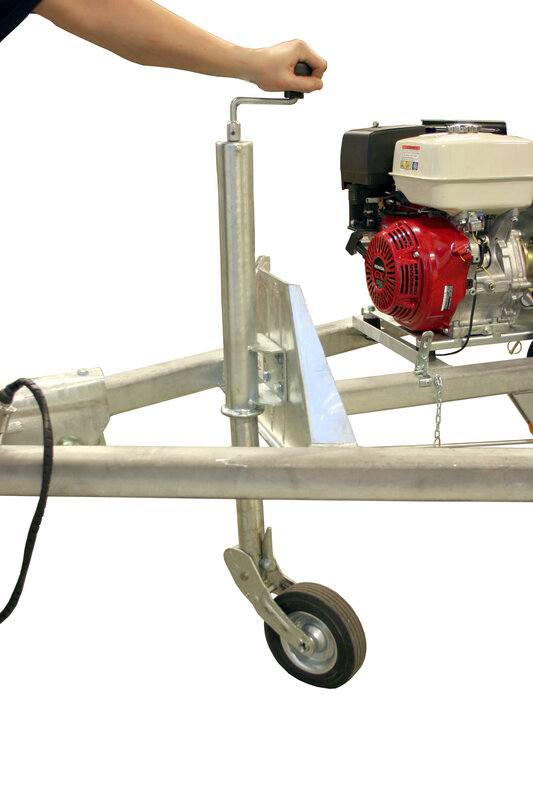

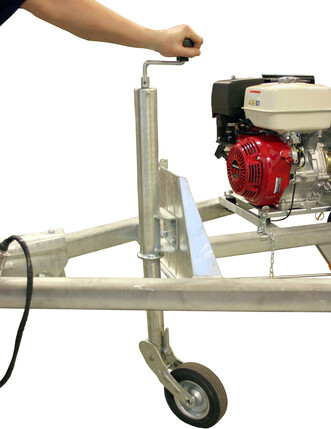

    • Adjustable jockey wheel
    • Automatic locking system for drum stand

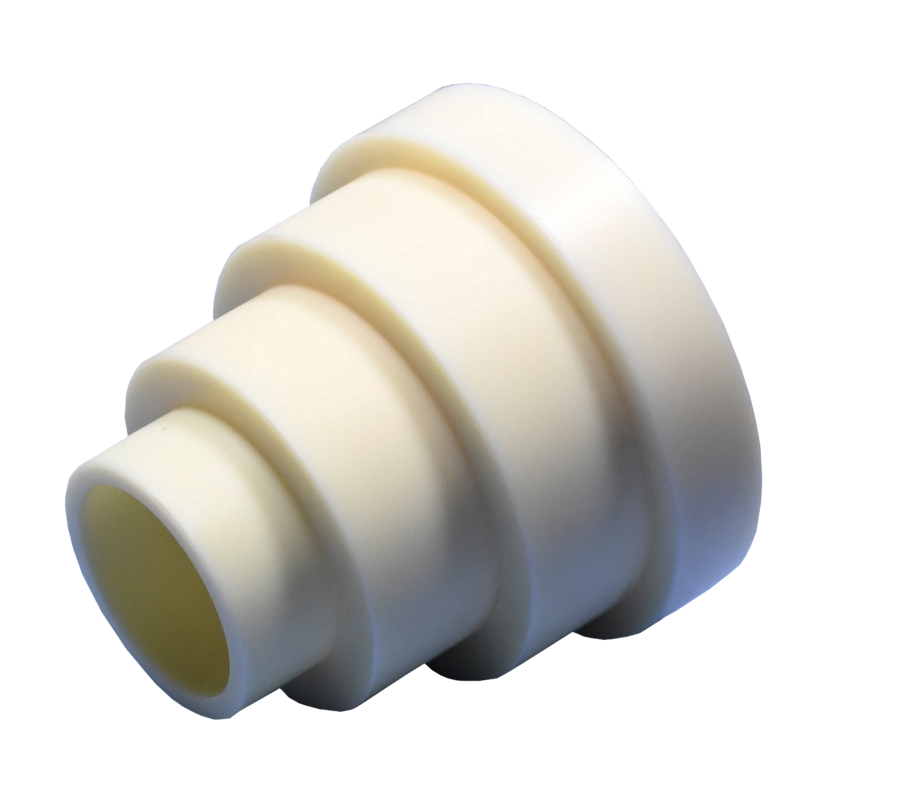

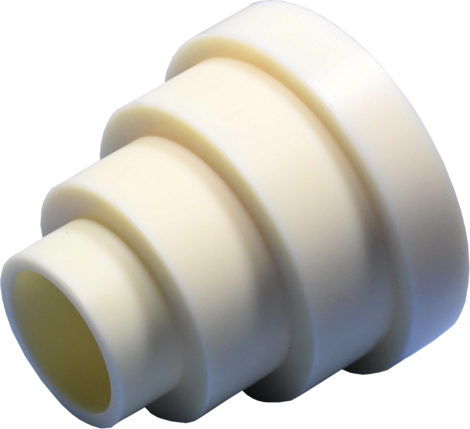

    • Drum axle w/ nylon cones for hole Ø -dia 77,107,133mm

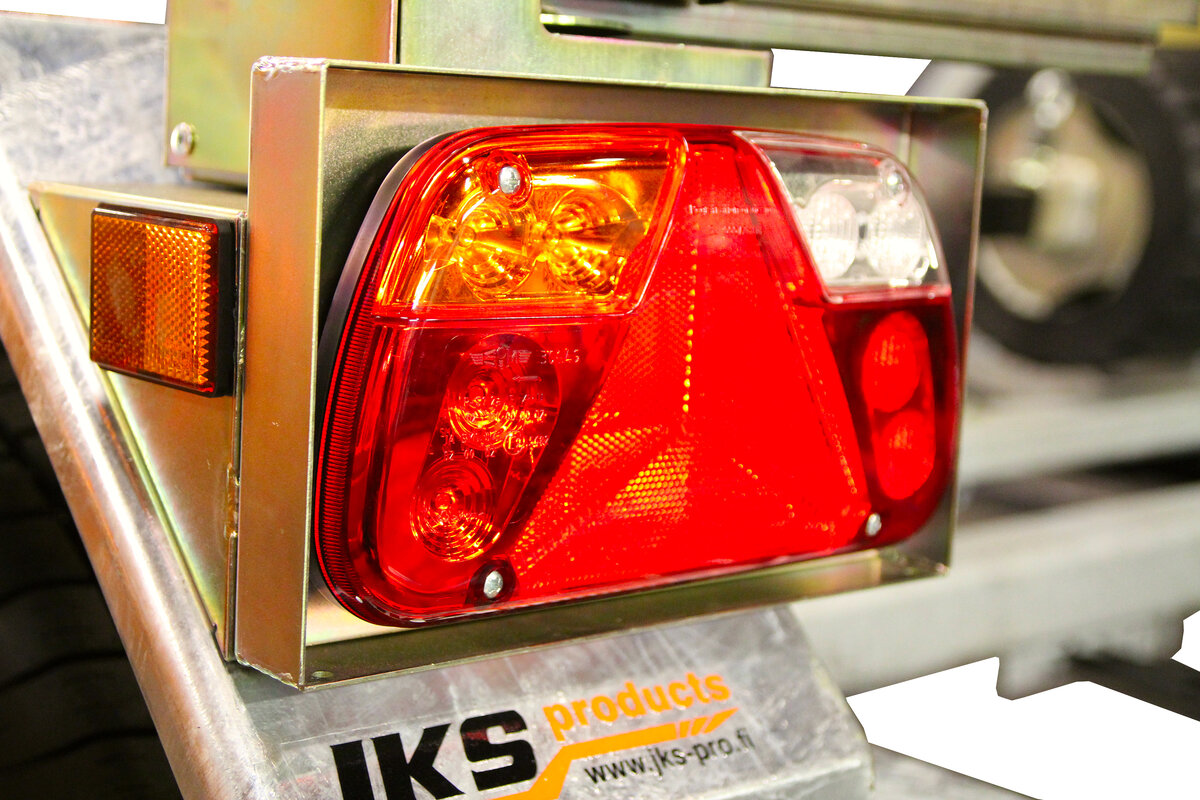

    • 12v led-light system
    • Turnable licence plate holder w/lights

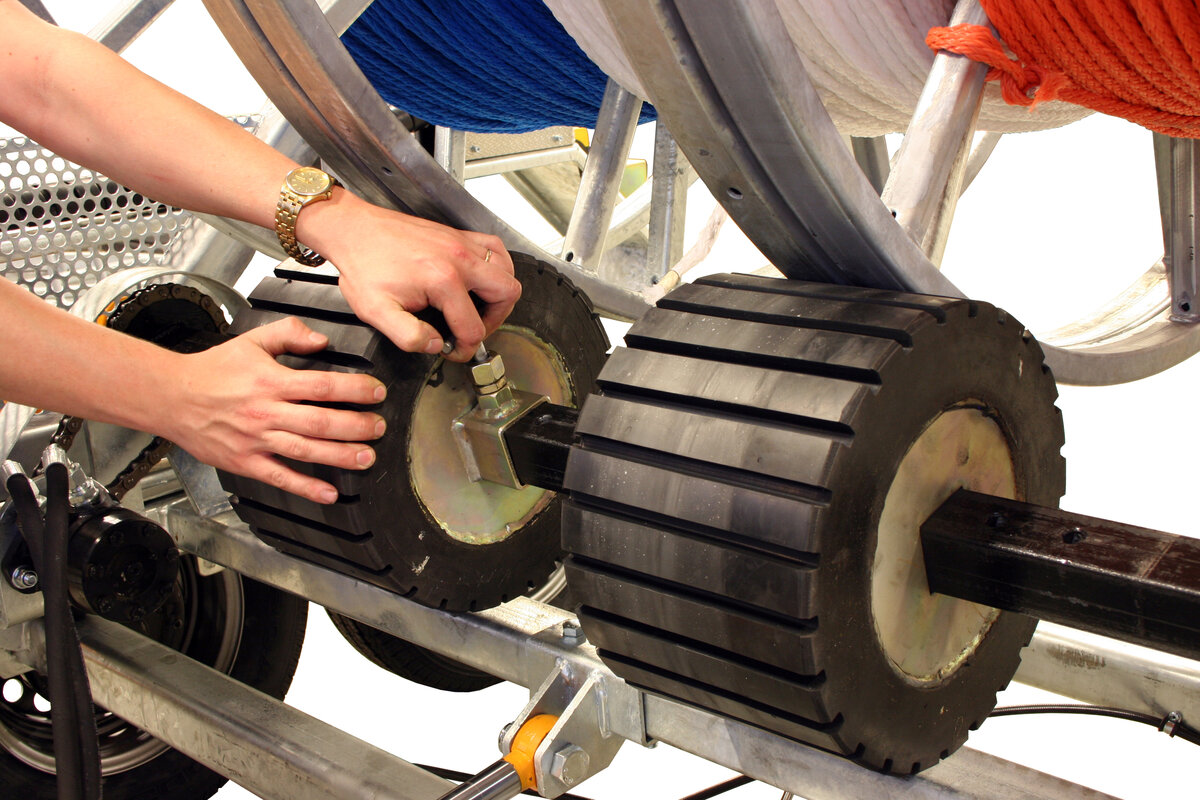

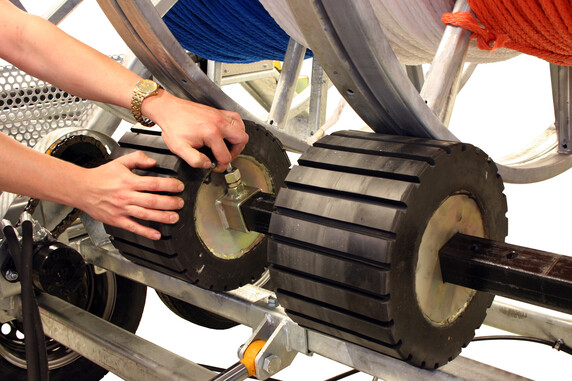

    • Drum spinning device with 200mm wide solid rubber tires and fast locking mechanism

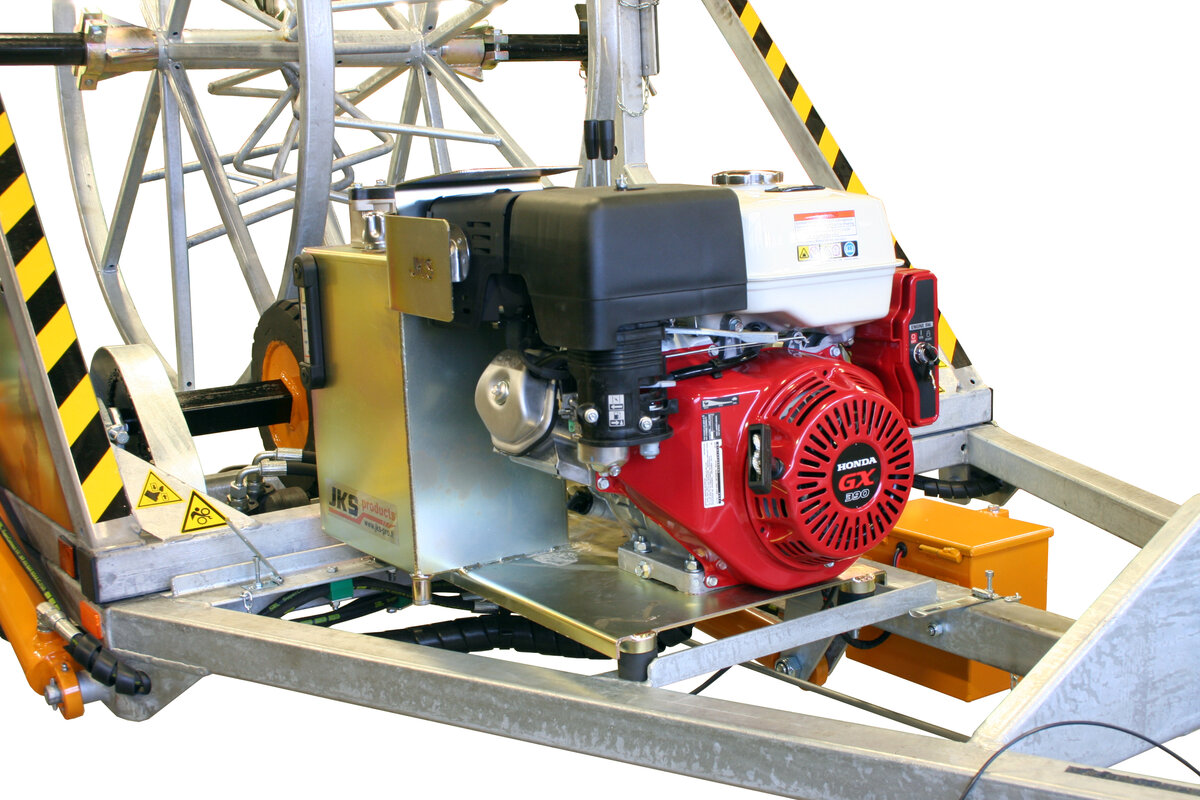

    • Honda 13HK gasoline engine
    • Electric start
    • EC hydraulic oil cooler 12V
    • drum spinning with brake motor
    • Hydraulic drum lift
    • Hydraulic back support
    • hydraulic transfer for drum spinning machinery
    • Extra hydraulisc outlet
    • 12V outlet
  • Measurements
    Length 4,300 mm Copy
    Height 2,200 mm Copy
    Width 2,300 mm Copy
    Weight 1,070,000 g Copy
  • Documents
    BA-Kabelvogn-JKS-3500-02-15.pdf BA-Kabelvogn-JKS-3500-02-15.pdf
  • Cable Trailers
    Max Drum Size k24 / 2400mm Copy
    cable_trailers_max_drum_width 1430 mm Copy
    Reel Lifter Hydraulic Copy
    Max Load Capacity 2500 kg Copy
    Max Total Load 3500 kg Copy
