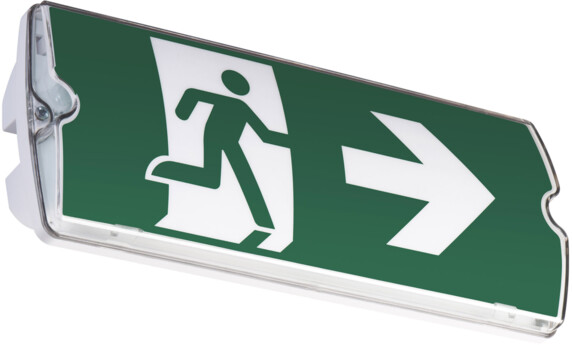

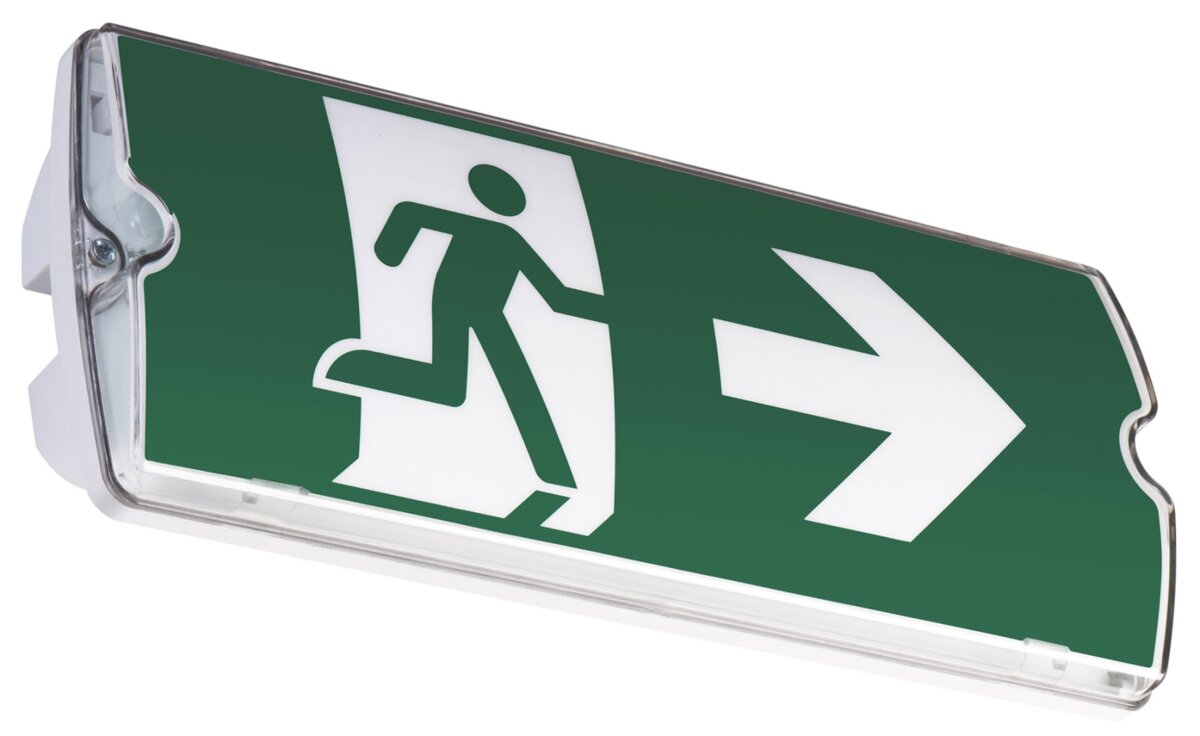

Emergency light SolidLed Slim Heated with self-test and LiFePO4 bat.
Product code | 7346482 | |
---|---|---|
Product type | SLD612ST-LF-CD | |
Sales unit | Pcs | |
ETIM-Class | EC001957 |
-
Product specifications
Solidled Slim Heated is equipped with Self-Test and LiFoPO4 battery The luminaire is also equipped with a smart multichannel charging (HCM). The control module keeps the internal temperature in the luminaire around 25°C. The battery can be discharged in cold conditions but will not start charging the battery until the internal temperature has reached 5°C using the heating element. This means that the luminaire will work safely for many years.
· for temperatures down to -20°C
· Autotest
· Pictograms for all directions included
· LongLife Batteries LiFePO4
· Adjustable plug for use as reference or emergency light fixture
Important to note!
After connecting mains voltage for the first time, the LED indicator will flash green at short intervals for 24h as the luminaire fast-charges the battery. After this, the luminaire will do a full battery test for 1h. After the test, the luminaire will again fast charge the battery for 24h. This means that the LED will blink for 49 hours after connection. Should the supply to the luminaire be interrupted during these hours, the luminaire will restart the process again.
-
Measurements
Length 71 mm Height 130 mm Width 280 mm Weight 850 g -
