48F G652D ADSS MLT Black HDPE 15kN OD 15,7mm 4km/dr
| Product code | 4965267 | |
|---|---|---|
| Count | 1 | |
| Sales unit | Meter | |
| ETIM-Class | EC000034 |
slide 3 of 2
-
Product specifications

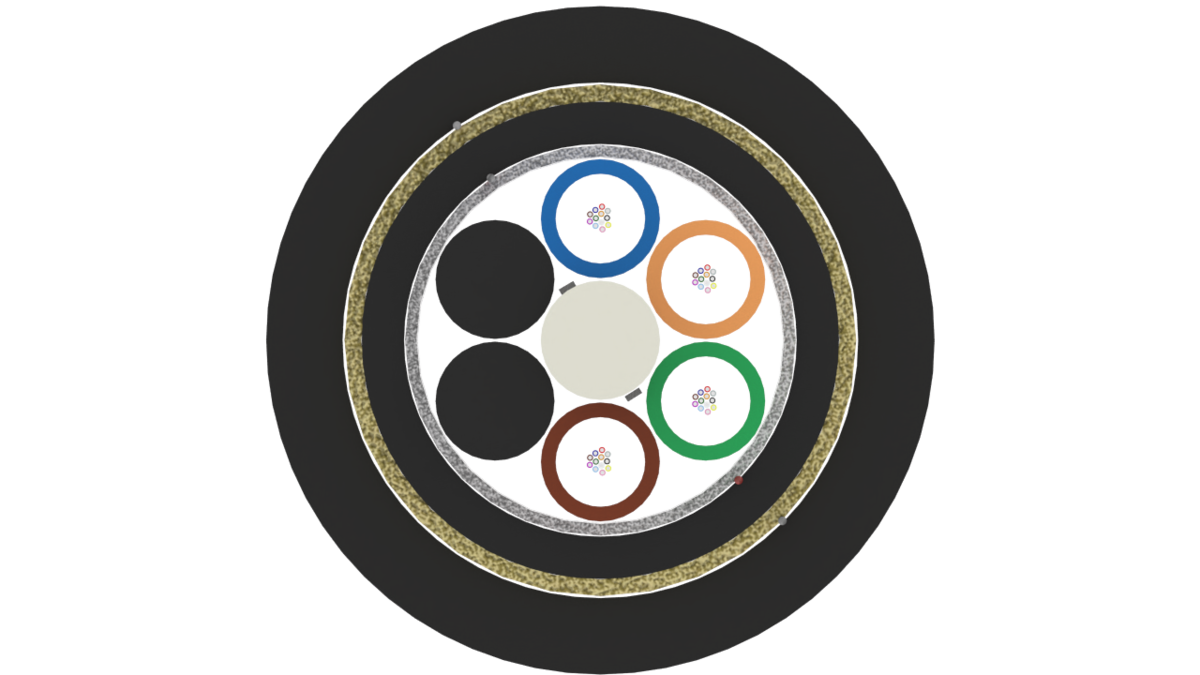

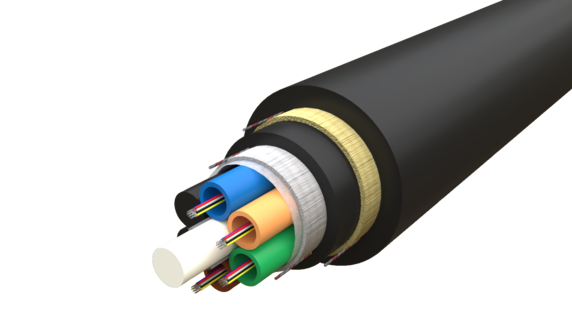

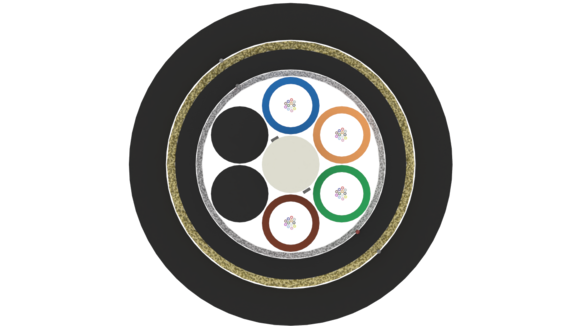

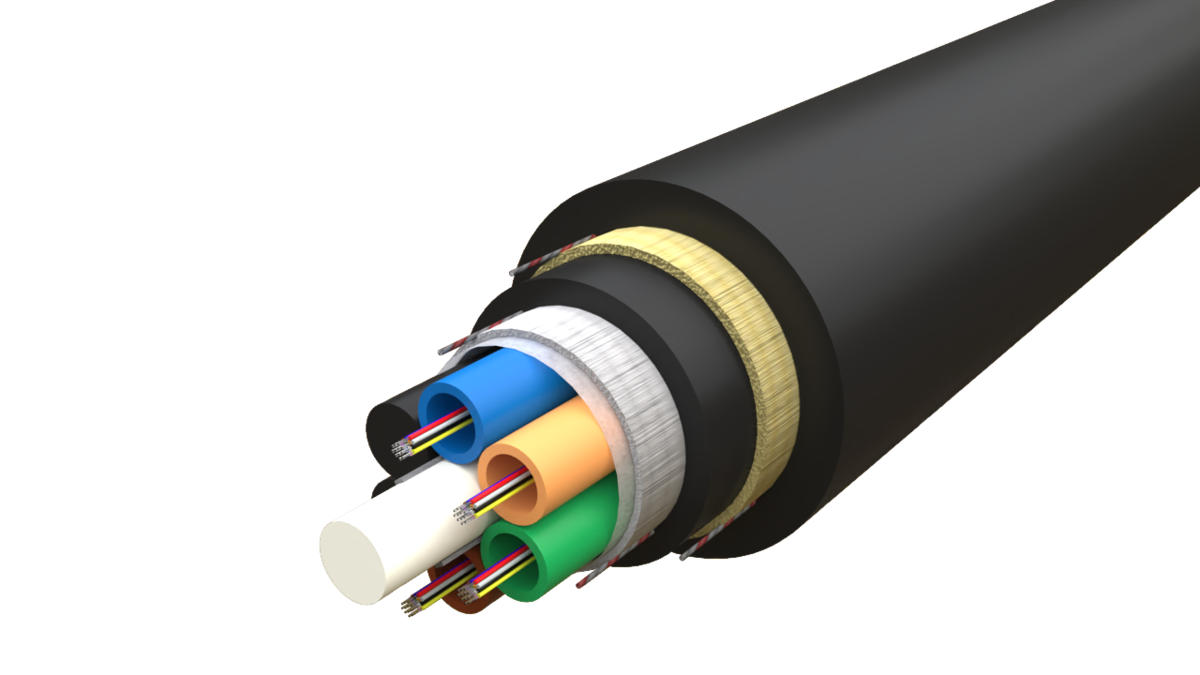

48F G652D ADSS cable designed for a maximum of 150m span lengths (distance between poles) under ice and wind conditions according to NESC heavy. The cable is based on a multi loose tube construction with SZ design around a central strength member of fiberglass-reinforced plastic (FRP) which facilitates mid-span access.
-
Measurements
Length 1,000 mm Height 15.7 mm Width 15.7 mm Weight 175 g -
Documents
Data Sheets
-
Physical Characteristics
-
Mechanical & Environmental Characteristics
-
Other variants
Product number Product name Fibre Count Cable Diameter CompareProduct number 4965257Product name 24F G652D ADSS MLT Black HDPE 15kN OD 15,7mm 4km/drFibre Count 24Cable Diameter 15.7 mmProduct number 4965267Product name 48F G652D ADSS MLT Black HDPE 15kN OD 15,7mm 4km/drFibre Count 48Cable Diameter 15.7 mmProduct number 4965277Product name 96F G652D ADSS MLT Black HDPE 16kN OD 16mm 4km/drFibre Count 96Cable Diameter 16 mmProduct number 4965287Product name 144F G652D ADSS MLT Black HDPE 18kN OD 19,5mm 4km/drFibre Count 144Cable Diameter 19.5 mmProduct number 4965297Product name 192F G652D ADSS MLT Black HDPE 20kN OD 21,8mm 4km/drFibre Count 192Cable Diameter 21.8 mmProduct number 4965307Product name 288F G652D ADSS MLT Black HDPE 20kN OD 22mm 4km/drFibre Count 288Cable Diameter 22 mm
