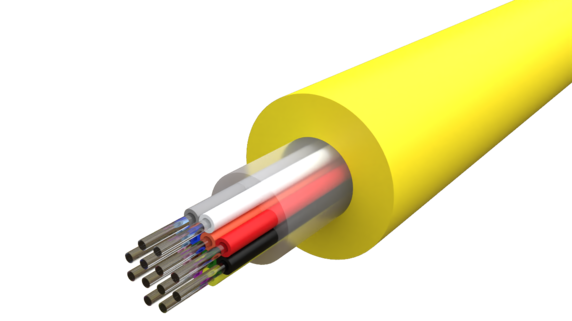

12F Blown fiber EPSU SM G657A1 Yellow HDPE 1,6mm 4km/pan, TIA/S12

Product code	5042437
Count	1
Sales unit	Meter
ETIM-Class	EC000034

Compare

Product specifications

12F SM G657A1 EPSU air blown optical fibre is typically used in micro duct installation applications. ABF can utilize in existing and new duct systems more effectively by accommodating more fibres in given subduct network. The fiber units is suitable for air-blown installation. Cable parameters such as cable diameter, stiffness and sheath friction is optimized for best installation performance. The expected service life in normal use exceeds 30 years.

Length	1,000 mm
Height	1.6 mm
Width	1.6 mm
Weight	1.9 g

Documents

Data Sheets

5042437-EN-FDV.pdf

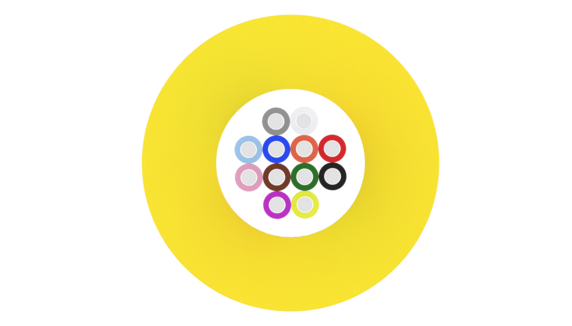

Physical Characteristics

Fibre Count	12
Cable Construction	Acrylat
Fibre Type	ITU-T G.657 A1
Fibre Colour Sequence	EIA/TIA-598A
Outer Sheath Material	HDPE (High Density Polyethene)
Colour of Cable Sheath	Yellow
Cable Diameter	1.6 mm
Cable Diameter Tolerance	+/- 0.2 mm
Nominal Cable Weight	2 kg/km

Mechanical & Environmental Characteristics

Halogen Free	Yes
Metal free	Yes
Tensile Strength (N) IEC-60794-1-21-E1	19
Crush Resistance - IEC- 60794-1-21-E3	100 N/10cm
Min. Bend Radius (During Installation) IEC-60794-1-21-E11	60 mm
Temperature Performance Installation IEC-60794-1-22-F1	-15°C till +50°C*
Temperature Performance Operation IEC-60794-1-22-F1	-40°C till +60°C
Temperature Performance Storage IEC-60794-1-22-F1	-40°C till +60°C

Other variants

Product number Product name Fibre Count Cable Diameter Central Strength Member Compare

Product number 5042434

Product name 2F Blown fiber EPSU SM G657A1 Yellow HDPE 1,2mm 6km/pan, S12

Fibre Count 2

Cable Diameter 1.2 mm

Central Strength Member

Product number 4989487

Product name 2F Blown fiber TESU B ARAMID G657A2 Yellow HDPE 1.6mm 3km/pan, S12

Fibre Count 2

Cable Diameter 1.6 mm

Central Strength Member Aramid Yarn

Product number 5042435

Product name 4F Blown fiber EPSU SM G657A1 Yellow HDPE 1,2mm 6km/pan, S12

Fibre Count 4

Cable Diameter 1.2 mm

Central Strength Member

Product number 4989497

Product name 4F Blown fiber TESU B ARAMID G657A2 Yellow HDPE 1.6mm 3km/pan, S12

Fibre Count 4

Cable Diameter 1.6 mm

Central Strength Member Aramid Yarn

Product number 5042436

Product name 8F Blown fiber EPSU SM G657A1 Yellow HDPE 1,4mm 4km/pan, S12

Fibre Count 8

Cable Diameter 1.4 mm

Central Strength Member

Product number 5042437

Product name 12F Blown fiber EPSU SM G657A1 Yellow HDPE 1,6mm 4km/pan, TIA/S12

Fibre Count 12

Cable Diameter 1.6 mm

Central Strength Member

Product number 5045319

Product name 24F Blown fiber EPSU SM G657A1 200µm Yellow HDPE 2.1mm TIA 3km/pan

Fibre Count 24

Cable Diameter 2.1 mm

Central Strength Member
