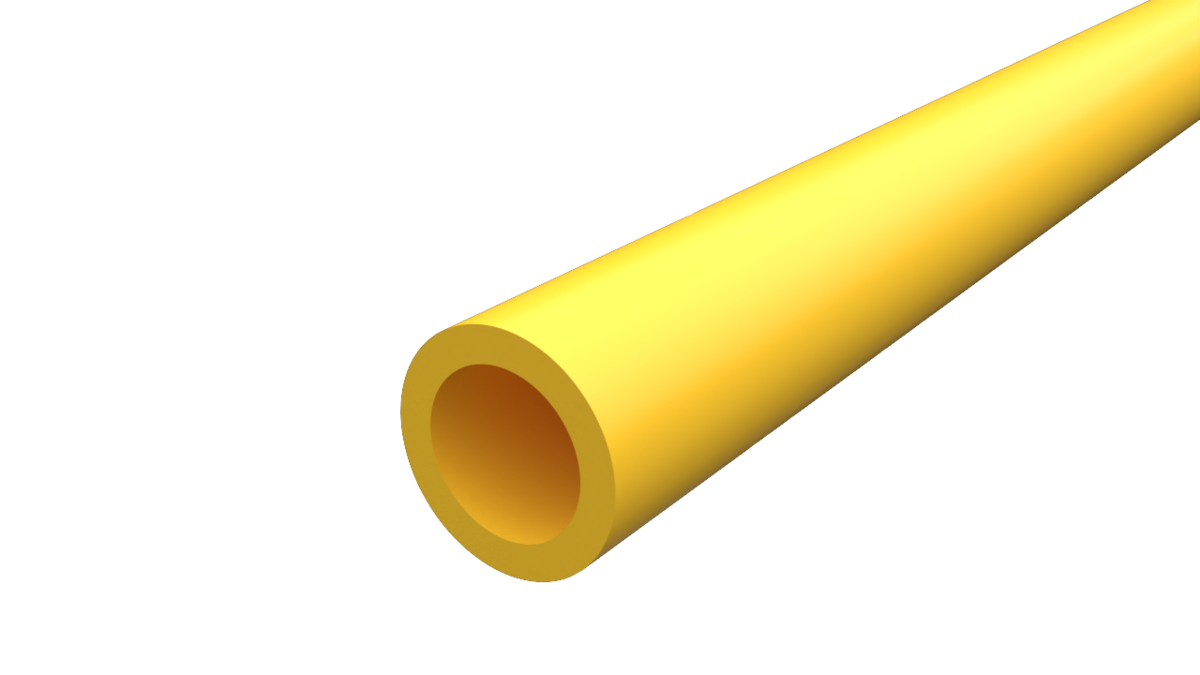

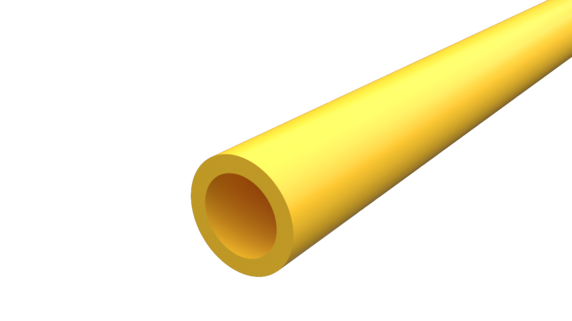

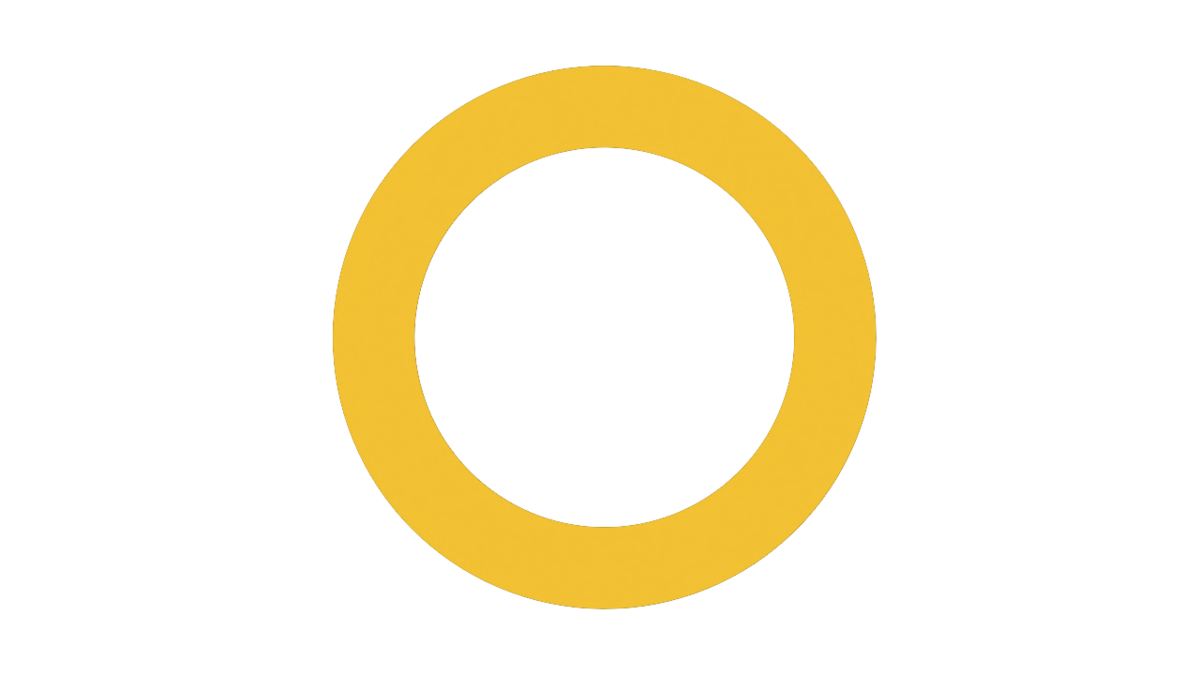

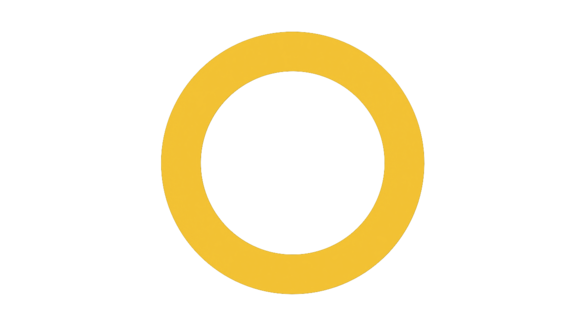

Microduct 14/12mm HDPE yellow Smooth, 1500m/dr
Product code | 88018014YE | |
---|---|---|
Sales unit | Meter | |
ETIM-Class | EC001474 |
slide 3 of 2
-
Product specifications
14/12mm microducts are designed for long term protection of fiber optical cables and are especially suitable for installation of micro cables. Thin walled microducts are suitable for sub-duct installations.. The ducts can either be blown or pulled into existing pipes to maximize the utilization of already existing infrastructure. The microduct are made of high-density virgin polyethylene (HDPE). Every microduct has a permanent, co-extruded silicone compound inner liner and longitudinal grooves giving a coefficient of friction of less than 0,1.
-
Measurements
Length 1,000 mm Height 14 mm Width 14 mm Weight 43 g -
Documents
Data Sheets
-
Technical Specifications - Single Ducts
-
Mechanical Characteristics
-
Other variants
Product number Product name Duct Colour CompareProduct number 88018014BUProduct name Microduct 14/12mm HDPE blue Smooth, 1500m/drDuct Colour BlueProduct number 88018014GNProduct name Microduct 14/12mm HDPE green Smooth, 1500m/drDuct Colour GreenProduct number 88018014OGProduct name Microduct 14/12mm HDPE orange Smooth, 1500m/drDuct Colour OrangeProduct number 88018014RDProduct name Microduct 14/12mm HDPE red Smooth, 1500m/drDuct Colour RedProduct number 88018014YEProduct name Microduct 14/12mm HDPE yellow Smooth, 1500m/drDuct Colour Yellow
