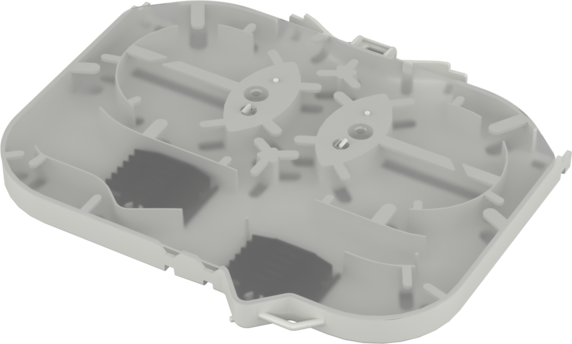

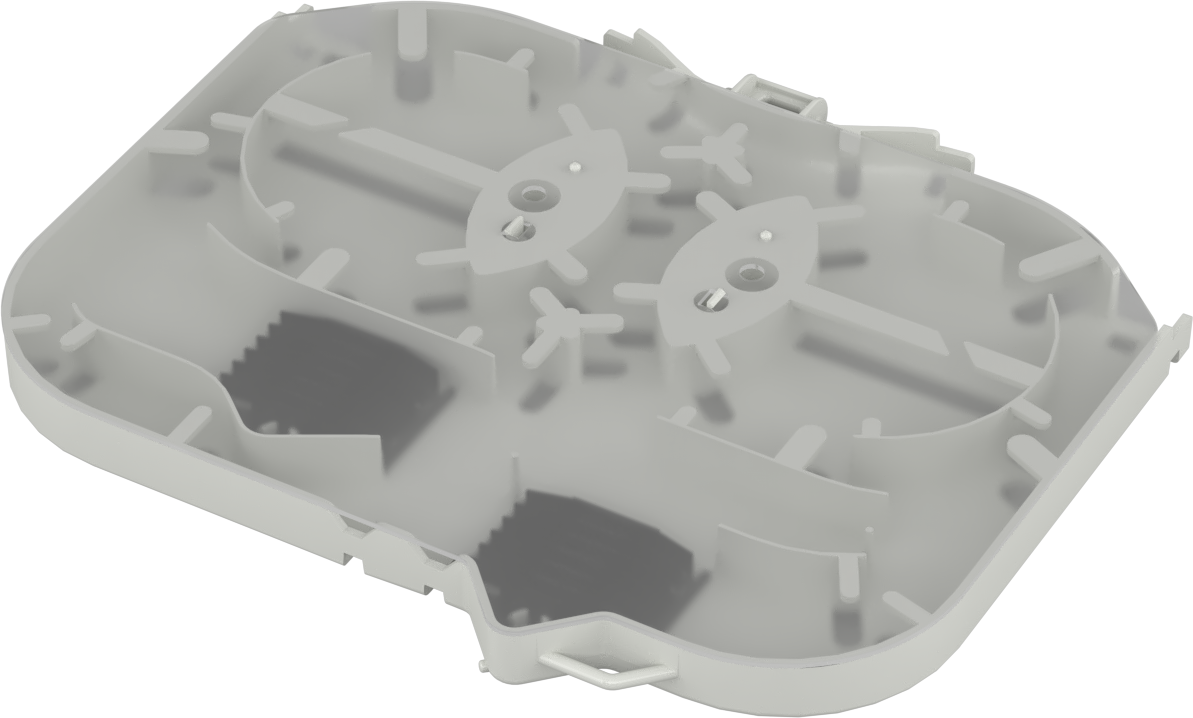

Splice tray KM4 incl spliceholder 2x12F
| Product code | 5062238 | |
|---|---|---|
| Sales unit | Pcs | |
| ETIM-Class | EC000762 |
-
Product specifications

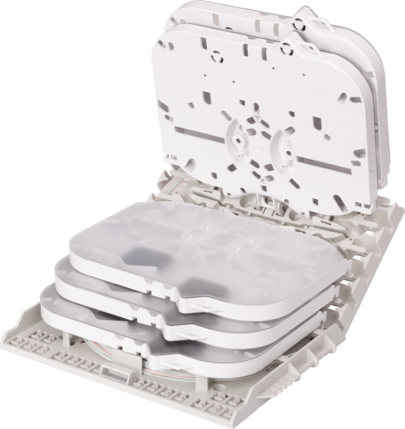

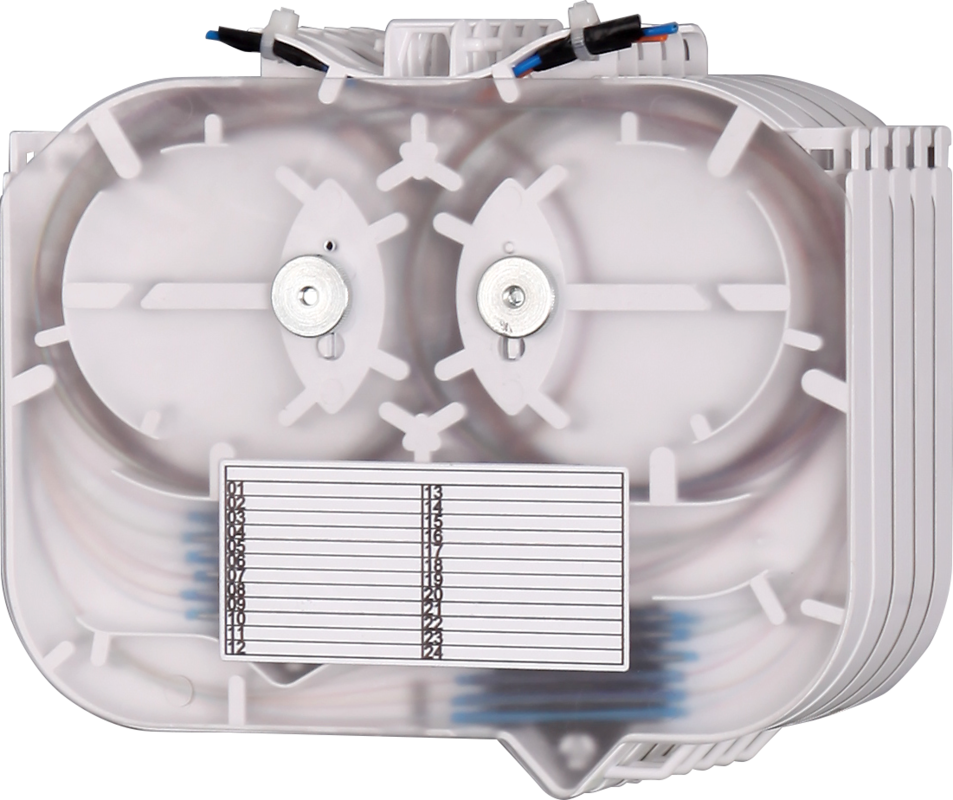

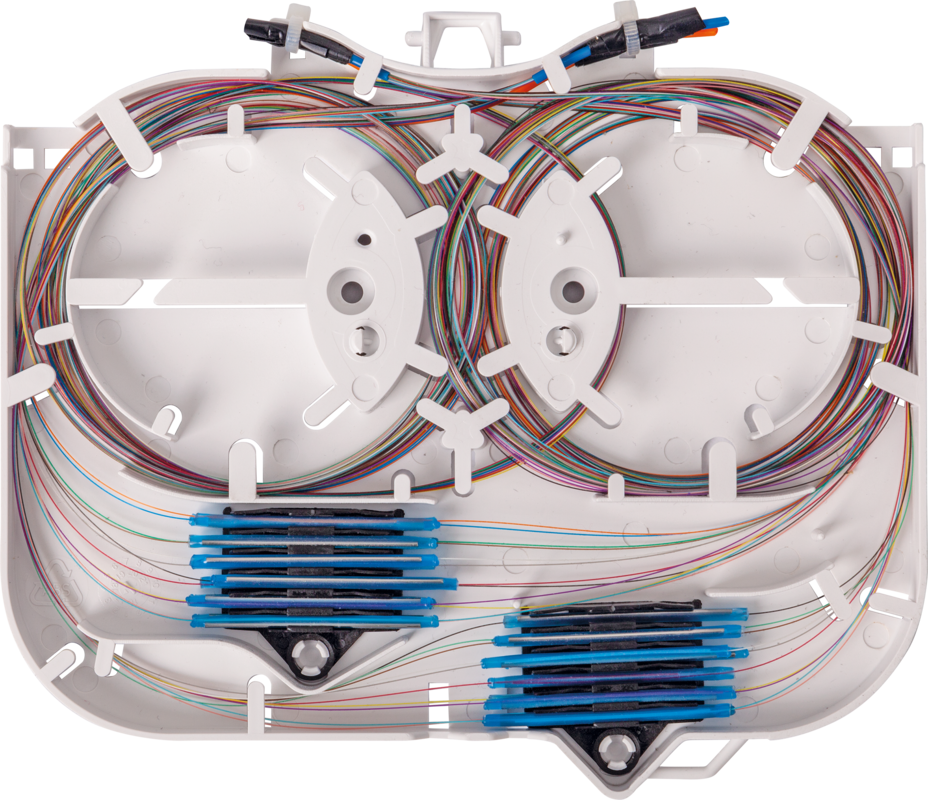

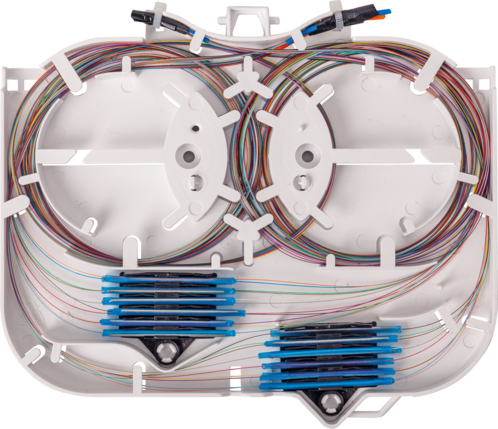

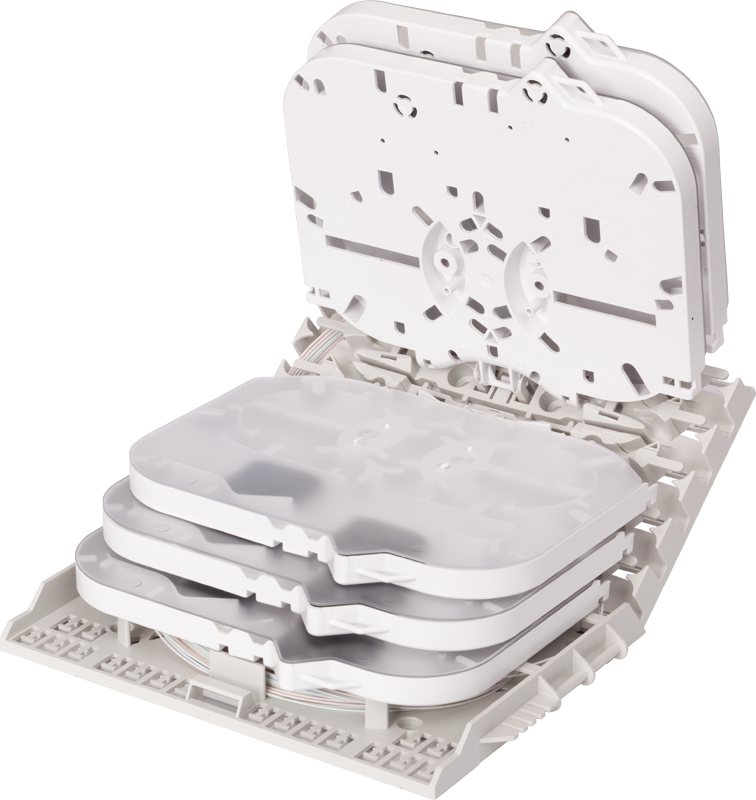

Splice trays are used to loop excess fiber, protect and fix the splice protection sleeves. The trays are available in different designs and sizes to fit different ODFs, termination boxes, closures and cabinets.
-
Measurements
Length 145 mm Height 12 mm Width 175 mm Weight 120 g -
Documents
Data Sheets
-
Technical Specifications - Splice Trays
-
Other variants
Product number Product name Max Fibre Count per tray Model CompareProduct number 5062238Product name Splice tray KM4 incl spliceholder 2x12FMax Fibre Count per tray 24Model km4Product number 5062239Product name Splice tray KM4 incl spliceholder 3xRibbonMax Fibre Count per tray 6Model km4Product number 5062246Product name Splice tray KM5 incl spliceholder 2x12F and adaptorpanel 12xSCS/LCDMax Fibre Count per tray 24Model km5Product number 5062247Product name Splice tray KM5 incl spliceholder 3xRibbon and adaptorpanel 12xSCS/LCDMax Fibre Count per tray 12Model km5Product number 5062248Product name Splice tray KM6 incl spliceholder 2x12FMax Fibre Count per tray 24Model km6Product number 5062249Product name Splice tray KM6 incl spliceholder 3xRibbonMax Fibre Count per tray 6Model km6Product number 5062251Product name Splice tray KM7 incl spliceholder 2x12F and adaptor panel 4xSCD/LCQMax Fibre Count per tray 24Model km7Product number 5062252Product name Splice tray KM7 incl spliceholder 3xRibbon and adaptor panel 4xSCD/LCQMax Fibre Count per tray 12Model km7Product number 5062286Product name Splice tray SFMS C2 short/high 12FMax Fibre Count per tray 12Model SFMS C2Product number 5062287Product name Splice tray SFMS D2 short/high 4xRibbonMax Fibre Count per tray 12Model sfms d2Product number 5062288Product name Splice tray SFMS E long/low 12FMax Fibre Count per tray 12Model sfms eProduct number 5062745Product name EC2 splice tray large 24F Incl. splice holdersMax Fibre Count per tray 24Model ec2Product number 5062747Product name DNW-SK/121 splice tray largeMax Fibre Count per tray 24Model sk121Product number 5062766Product name KM1 splice tray, black max. 16 heat shrink splicesMax Fibre Count per tray 24Model km1Product number 5062767Product name KM1 splice tray, whiteMax Fibre Count per tray 24Model km1Product number 5087700Product name LWK splice tray, blue 25pcs/bagMax Fibre Count per tray 12Model lwkProduct number 84011512Product name SK123 splice tray Inkl. splice holderMax Fibre Count per tray 12Model sk123
