24F G652D Duct cable MLT Black HDPE OD 8.5mm 4km/dr

Product code	87701024
Sales unit	Meter
ETIM-Class	EC000034

Compare

Product specifications

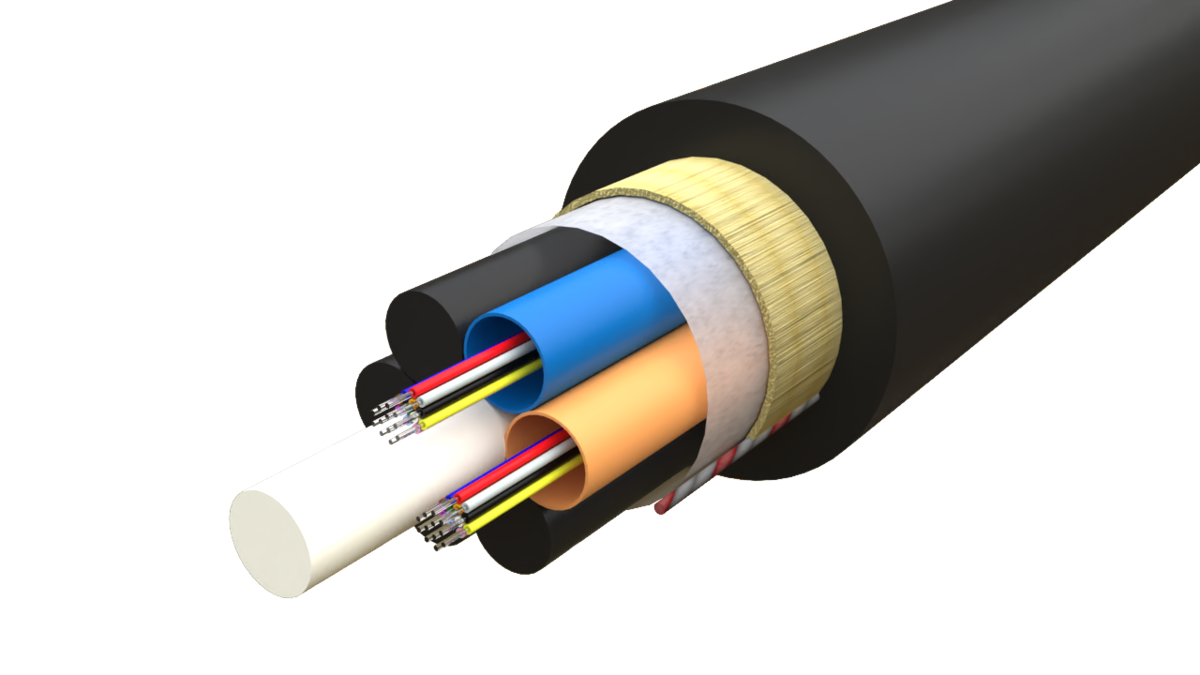

Slim loose tube fibre optical cables typically used outdoor in duct installation applications. The cable is suitable for air-blown installation as well as for pulling.

The expected service life in normal use exceeds 30 years.

Measurements

Length	1,000 mm
Height	8.5 mm
Width	8.5 mm
Weight	55 g

Documents

Data Sheets

87701024-EN-FDV.pdf

Physical Characteristics

Fibre Count	24
Cable Construction	Multi Loose Tube (MLT)
Fibre Type	ITU-T G.652 D
Fibres per Tube	12
Fibre Colour Sequence	EIA/TIA-598A
Central Strength Member	FRP
No of Tubes	2 + 4 fillers
Tube Colour Sequence	EIA/TIA-598A
Outer Sheath Material	HDPE (High Density Polyethene)
Colour of Cable Sheath	Black
Nominal Sheath Thickness	1.1 mm
No of Ripcords Below Outer Sheath	2
Cable Diameter	8.5 mm
Cable Diameter Tolerance	+/- 0.5 mm
Nominal Cable Weight	55 kg/km

Mechanical & Environmental Characteristics

Halogen Free	Yes
UV Proof	Yes
Metal free	Yes
Tensile Strength (N) IEC-60794-1-21-E1	2,000 N
Crush Resistance - IEC- 60794-1-21-E3	2,000 N/10cm
Impact Strength (Nm) IEC-60794-1-21-E4	10
Torsion IEC-60794-1-21-E7	± 360 º
Min. Bend Radius (During Installation) IEC-60794-1-21-E11	20 x d
Min. Bend Radius (After Installation) IEC-60794-1-21-E11	15 x d
Water Penetration TestIEC-60794-1-22-F5	1m waterhead, 3m samples, 24 h
Drip Test IEC-60794-1-21-E14	30 cm, 70ºc, 24 h
Temperature Performance Installation IEC-60794-1-22-F1	- 15 °C to + 85 °C
Temperature Performance Operation IEC-60794-1-22-F1	- 40 °C to + 85 °C
Temperature Performance Storage IEC-60794-1-22-F1	- 40 °C to + 85 °C

Other variants

Product number Product name Fibre Count Cable Diameter Fibre Colour Sequence Compare

Product number 4966977

Product name 12F G652D Duct lite cable MLT Black HDPE OD 9.4mm 4km/dr

Fibre Count 12

Cable Diameter 9.4 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87701012

Product name 12F G652D Duct cable MLT Black HDPE OD 8.5mm 4km/dr

Fibre Count 12

Cable Diameter 8.5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4966987

Product name 24F G652D Duct lite cable MLT Black HDPE OD 9.4mm 4km/dr

Fibre Count 24

Cable Diameter 9.4 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87701024

Product name 24F G652D Duct cable MLT Black HDPE OD 8.5mm 4km/dr

Fibre Count 24

Cable Diameter 8.5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4966997

Product name 48F G652D Duct lite cable MLT Black HDPE OD 9.4mm 4km/dr

Fibre Count 48

Cable Diameter 9.4 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87701048

Product name 48F G652D Duct cable MLT Black HDPE OD 8.5mm 4km/dr

Fibre Count 48

Cable Diameter 8.5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4967077

Product name 96F G652D Duct lite cable MLT Black HDPE OD 10.0mm 4km/d

Fibre Count 96

Cable Diameter 10 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87701096

Product name 96F G652D Duct cable MLT Black HDPE OD 10mm 4km/dr

Fibre Count 96

Cable Diameter 10 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4967087

Product name 144F G652D Duct lite cable MLT Black HDPE OD 12.7mm 4km/d

Fibre Count 144

Cable Diameter 12.7 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87701144

Product name 144F G652D Duct cable MLT Black HDPE OD 13mm 4km/dr

Fibre Count 144

Cable Diameter 13 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4967097

Product name 192F G652D Duct lite cable MLT Black HDPE OD 14.4mm 4km/d

Fibre Count 192

Cable Diameter 14.4 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4967177

Product name 288F Duct lite cable 16.0mm G652D Black HDPE, 4km/dr

Fibre Count 288

Cable Diameter 16 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 87701288

Product name 288F G652D Duct cable MLT Black HDPE OD 15mm 4km/dr

Fibre Count 288

Cable Diameter 15 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4967187

Product name 384F G652D Duct lite cable MLT Black HDPE OD 21.0mm 2km/d

Fibre Count 384

Cable Diameter 21 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4967197

Product name 480F G652D Duct lite cable MLT Black HDPE OD 19.5mm 2km/d

Fibre Count 480

Cable Diameter 19.5 mm

Fibre Colour Sequence EIA/TIA-598A

Product number 4967277

Product name 576F G652D Duct lite cable MLT Black HDPE OD 19.5mm 2km/d

Fibre Count 576

Cable Diameter 19.5 mm

Fibre Colour Sequence EIA/TIA-598A
