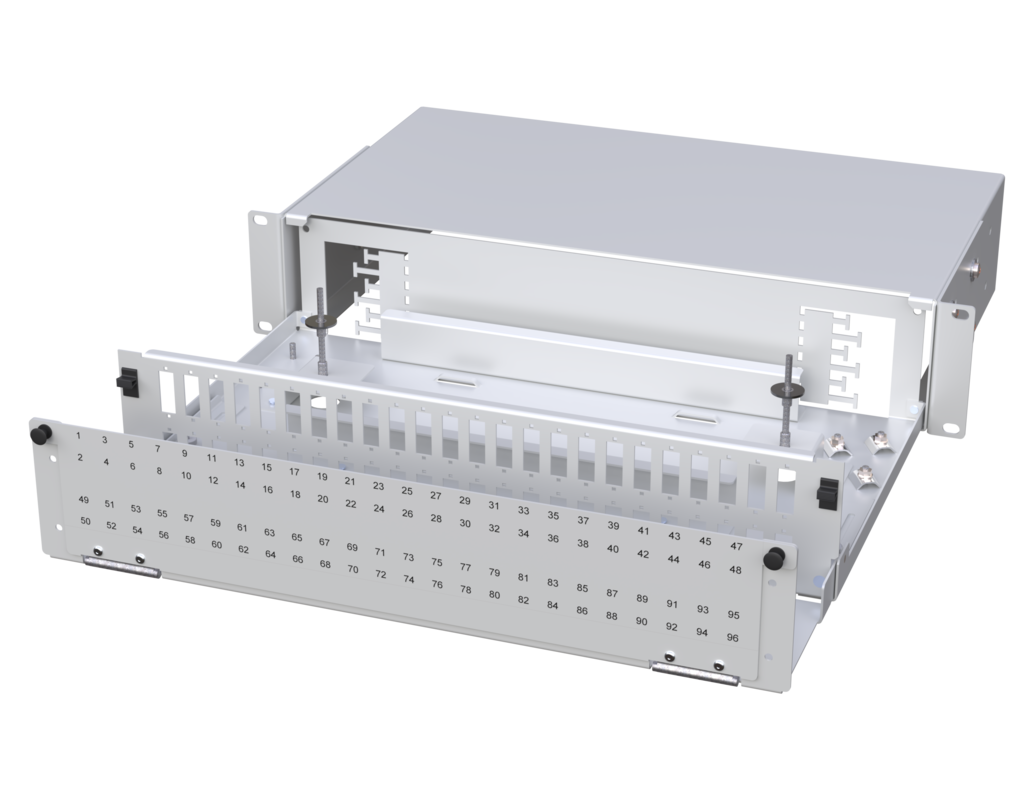

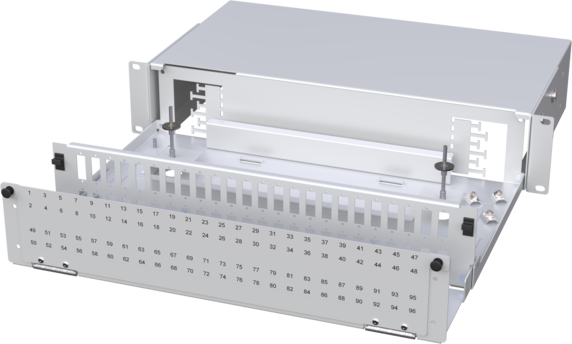

Optical Distribution Frame UHD 19`` 2U 48xLCQ/SCD GRAY

Product code	5055298
Sales unit	Pcs
ETIM-Class	EC001130

Compare

Product specifications
Fiber Optic Patch Panel Ultra High Density (UHD) 1U/2U. The patch panel is made of rugged alu-zinc metal and has a durable powder-coat finish coming in light gray color. The craft-friendly fiber optic trays and an integrated fiber storage allow comfortable assembly.
- Capacity up to 144 splices (1U version)
- Capacity up to 288 splices (2U version)
- Capacity up to 72×SC/144×LC connectors (1U version)
- Capacity up to 144×SC/288×LC connectors (2U version)
- Increased corrosion resistance (alu-zinc material)
- High connector density
- Removable patchcord support
- Depth adjustable 19" mounting brackets
- Removable Fiber Optic Trays to facilitate easy installation and maintenance
- Space for a fiber storage under the Fiber Optic Trays

Length	368 mm
Height	100 mm
Width	512 mm
Weight	6,200 g

Documents

Data Sheets

5055298-EN-FDV.pdf

Technical Specifications - ODFs

Fibre Count	192
Adapter Plate	48xLC Quad/SC Duplex
Preterminated	No
Sliding Enclosure	Yes
Mounting Type	19” rack
Number of Rack Spaces	2 U
Depth - ODF	244 mm
Depth - Front Shelf	105 mm
Colour	Light Gray RAL 7035

Other variants

Product number Product name Fibre Count Adapter Plate Compare

Product number 5055295

Product name Optical Distribution Frame UHD 19`` 1U 36xLCQ/SCD GRAY

Fibre Count 144

Adapter Plate 36xLC Quad/SC Duplex

Product number 5055296

Product name Optical Distribution Frame UHD 19`` 2U 72xLCQ/SCD GRAY

Fibre Count 288

Adapter Plate 72xLC Quad/SC Duplex

Product number 5055297

Product name Optical Distribution Frame UHD 19`` 1U 24xLCQ/SCD GRAY

Fibre Count 96

Adapter Plate 24xLC Quad/SC Duplex

Product number 5055298

Product name Optical Distribution Frame UHD 19`` 2U 48xLCQ/SCD GRAY

Fibre Count 192

Adapter Plate 48xLC Quad/SC Duplex
