Fiber Optical outlet for DIN mounting 2xSCS/LCS WHITE
| Product code | 5052192 | |
|---|---|---|
| Sales unit | Pcs | |
| ETIM-Class | EC001409 |
-
Product specifications

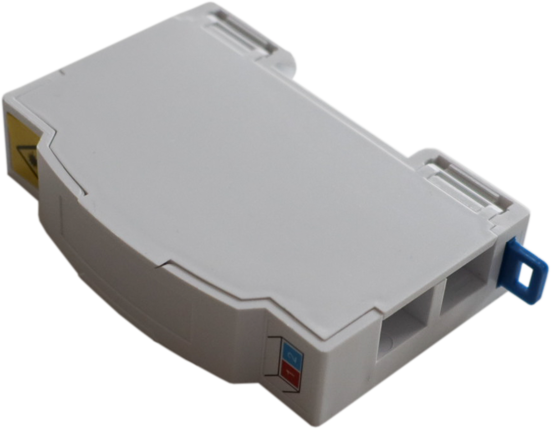

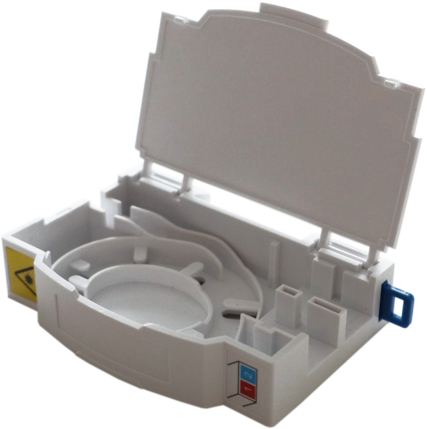

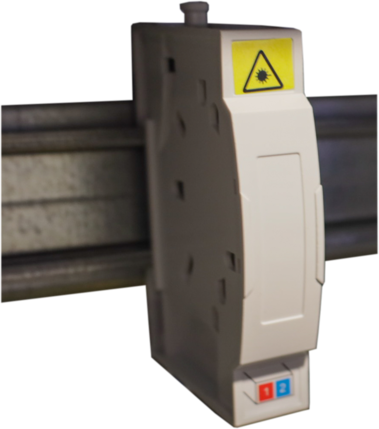

Fiber optic socket 2xSCS/LCD (G657) for mounting on DIN rail. Fits cable with outer diameter 2-4mm.
- Capacity: 2 fiber G657
- Material: ABS plastic
- Flammability standard: V2 (UL94)
- Color: White RAL 9003
- Outer dimensions: 100x60x17.5mm
-
Measurements
Length 61 mm Height 98 mm Width 17.5 mm Weight 38 g -
