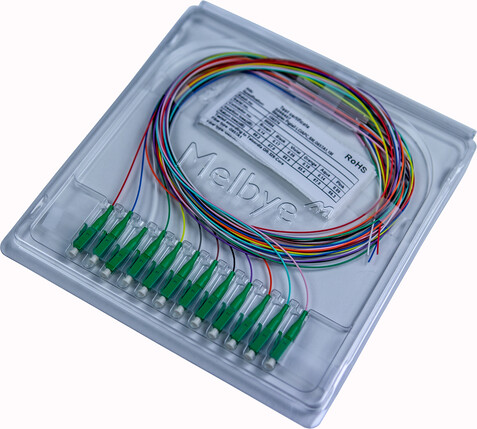

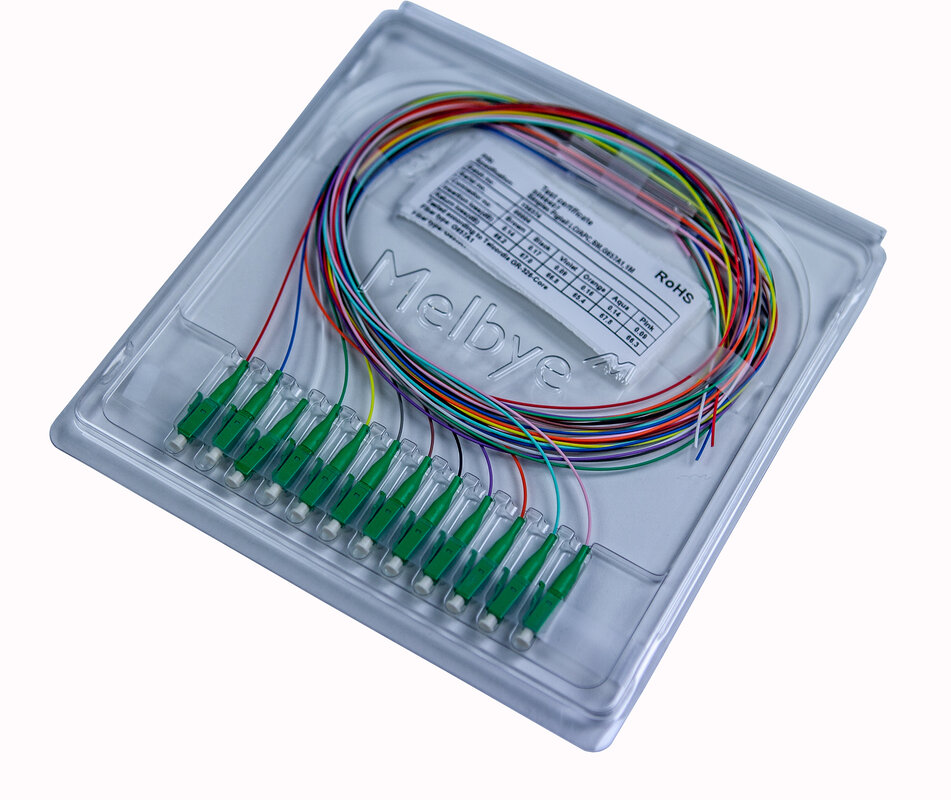

Pigtails Singlemode G657A

Fibreoptic pigtail, singlemode G657A1 900µm with one pre- terminated connector. To be used for splicing on a fibreoptic cable. Halogen-free according to EN 60754-1/2 and flame retardant according to IEC 60332-2-2. Meets the requirements of IEC 61300, EN186000-1, EIA/TIA-455 and TELCORDIA GR-326-CORE/GR-63. ID marked with a unique serial number for full traceability to component-level. Each package comes with individual measurement protocols. With pre-mounted 45 mm heat shrink sleeves.

12 variants

Product number Product name Connector Type Buffer Colour Length Compare
Product number 5066948
Product name Pigtail SM SC/UPC 2m 12-Pack G657A 12 color 900µm LSZH ES
Connector Type SC/UPC
Buffer Colour 12 Colours
Length 2 m
Product number 5066949
Product name Pigtail SM SC/APC 2m 12-Pack G657A 12 color 900µm LSZH ES
Connector Type SC/APC
Buffer Colour 12 Colours
Length 2 m
Product number 5066950
Product name Pigtail SM LC/UPC 2m 12-Pack G657A 12 color 900µm LSZH ES
Connector Type LC/UPC
Buffer Colour 12 Colours
Length 2 m
Product number 5066951
Product name Pigtail SM LC/APC 2m 12-Pack G657A 12 color 900µm LSZH ES
Connector Type LC/APC
Buffer Colour 12 Colours
Length 2 m
Product number 5068404
Product name Pigtail SM SC/UPC 1.0m 12-Pack G657A 12 color LSZH w, Splice protector
Connector Type SC/UPC
Buffer Colour 12 Colours
Length 1 m
Product number 5068405
Product name Pigtail SM SC/APC 1.0m 12-Pack G657A 12 color LSZH w, Splice protector
Connector Type SC/APC
Buffer Colour 12 Colours
Length 1 m
Product number 5068406
Product name Pigtail SM LC/UPC 1.0m 12-Pack G657A 12 color LSZH w, Splice protector
Connector Type LC/UPC
Buffer Colour 12 Colours
Length 1 m
Product number 5068407
Product name Pigtail SM LC/APC 1.0m 12-Pack G657A 12 color LSZH w, Splice protector
Connector Type LC/APC
Buffer Colour 12 Colours
Length 1 m
Product number 5068412
Product name Pigtail SM SC/UPC 1.0m 12-Pack G657A White 900µm LSZH
Connector Type SC/UPC
Buffer Colour White
Length 1 m
Product number 5068413
Product name Pigtail SM SC/APC 1.0m 12-Pack G657A White 900µm LSZH
Connector Type SC/APC
Buffer Colour White
Length 1 m
Product number 5068414
Product name Pigtail SM LC/UPC 1.0m 12-Pack G657A White 900µm LSZH
Connector Type LC/UPC
Buffer Colour White
Length 1 m
Product number 5068415
Product name Pigtail SM LC/APC 1.0m 12-Pack G657A White 900µm LSZH
Connector Type LC/APC
Buffer Colour White
Length 1 m

Download Data sheet
