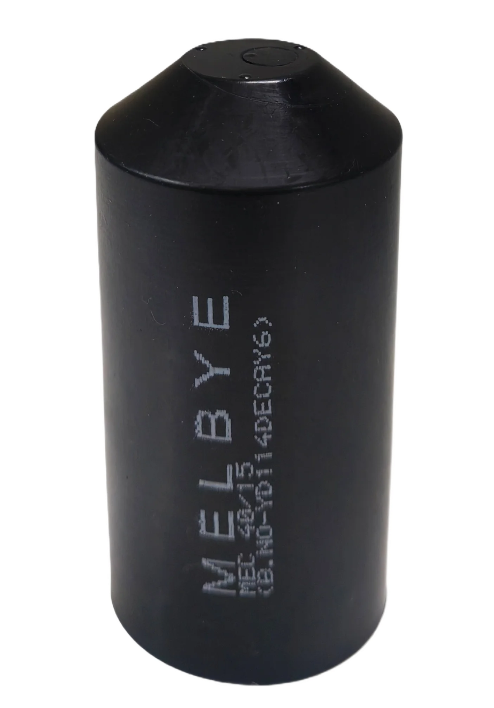

End cap 40/15mm

Product code
Sales unit	Pcs
ETIM-Class	EC000218

Compare

Product specifications

Heat shrink sleeves are designed for easy insulation and sealing of duct and cable ends. The heat shrink sleeves provide resistance to abrasion, weathering and chemicals. Each heat shrink sleeve is a moulded part which will cover a wide range of sizes and different types of ducts and cables.

Measurements

Length	110 mm
Height	40 mm
Width	40 mm
Weight	18 g

Documents

Data Sheets

-EN-FDV.pdf

Technical Specifications - End Caps

Type	End Sleeves Heat Shrink
Colour	Black
IP Codes	IP68

Technical Specifications - Shrink end cap

Type	Heat-shrink
Model	Medium-walled
Shrink rate	3:1
Inner diameter before heat-shrink	40 mm
Inner diameter after heat-shrink	15 mm
Operating temperature	-30 – 120 °C
Colour	Black
Material	Crosslinked polyolefin (XLPO)
Halogen free	Yes
With inner glue	Yes
Printable	Yes

Other variants

Product number Product name Inner diameter before heat-shrink Inner diameter after heat-shrink Compare

Product number

Product name End cap 14/4mm

Inner diameter before heat-shrink 14 mm

Inner diameter after heat-shrink 4 mm

Product number 770320

Product name END CAP 16/06-60 CTD (100pcs)

Inner diameter before heat-shrink 16 mm

Inner diameter after heat-shrink 5 mm

Product number 770321

Product name END CAP 101 CTD (20pcs)

Inner diameter before heat-shrink 20 mm

Inner diameter after heat-shrink 9 mm

Product number

Product name End cap 20/8mm

Inner diameter before heat-shrink 20 mm

Inner diameter after heat-shrink 8 mm

Product number 770322

Product name END CAP 201 CTD (5pcs)

Inner diameter before heat-shrink 35 mm

Inner diameter after heat-shrink 16 mm

Product number

Product name End cap 40/15mm

Inner diameter before heat-shrink 40 mm

Inner diameter after heat-shrink 15 mm

Product number 770323

Product name END CAP 301 CTD (5pcs)

Inner diameter before heat-shrink 55 mm

Inner diameter after heat-shrink 25 mm

Product number

Product name End cap 55/25mm

Inner diameter before heat-shrink 55 mm

Inner diameter after heat-shrink 25 mm

Product number 770324

Product name END CAP 401 CTD (5pcs)

Inner diameter before heat-shrink 75 mm

Inner diameter after heat-shrink 34 mm

Product number

Product name End cap 75/35mm

Inner diameter before heat-shrink 75 mm

Inner diameter after heat-shrink 35 mm

Product number 770327

Product name END CAP 501 CTD (5pcs)

Inner diameter before heat-shrink 100 mm

Inner diameter after heat-shrink 62 mm

Product number

Product name End cap 100/45mm

Inner diameter before heat-shrink 100 mm

Inner diameter after heat-shrink 45 mm
