24F G652D MLT CST armored 10kN Black HDPE OD 11,5mm 4000m/dr
Product code | 87405024 | |
---|---|---|
Sales unit | Meter | |
ETIM-Class | EC000034 |
-
Product specifications

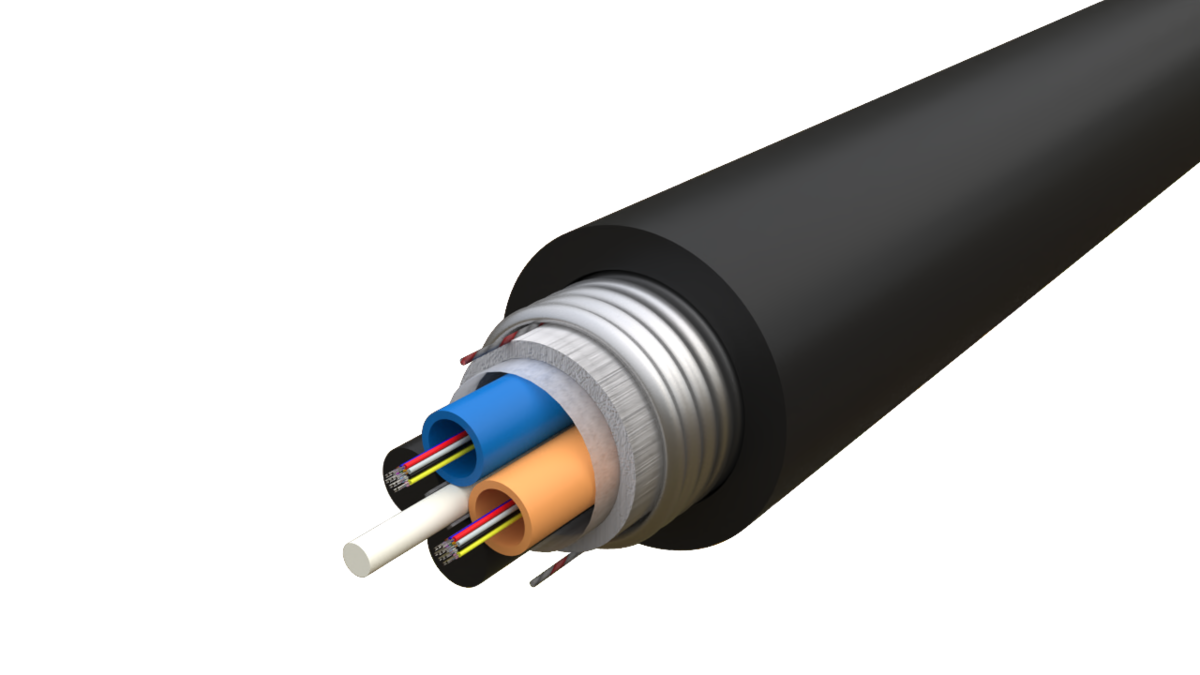

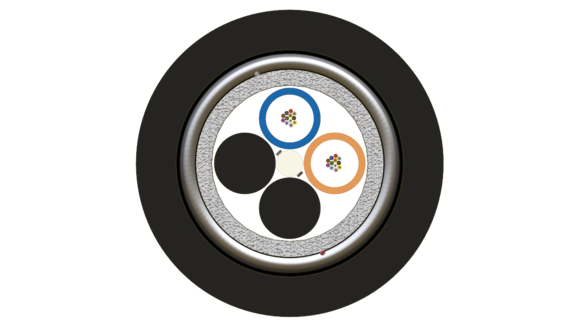

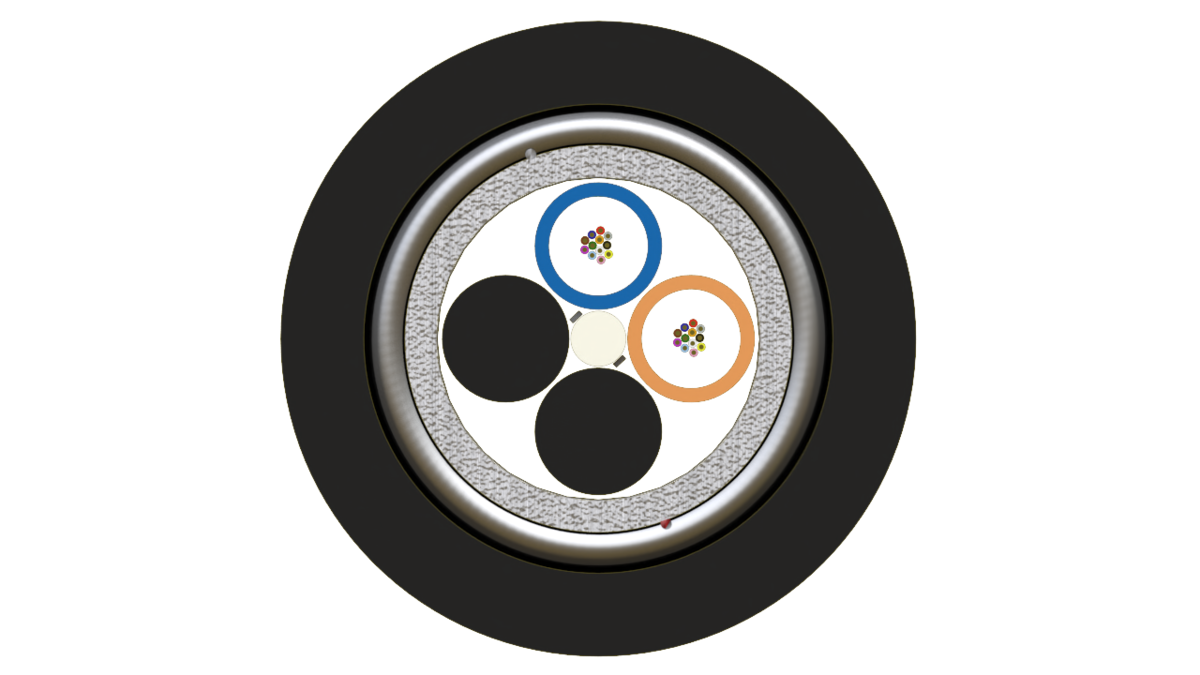

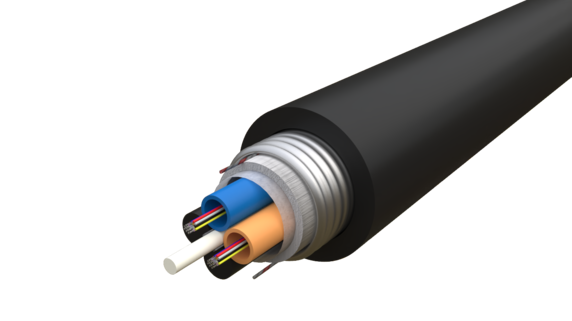

24F G652D armored cable designed for direct burial installation and has full rodent protection. It attains its mechanical robustness and functional performance through its corrugated steel tape (CST) reinforcement. Needs no further protection at underground installations. The cable is based on a multi loose tube construction with SZ design around a central strength member of fiberglass-reinforced plastic (FRP) which facilitates mid-span access.
-
Measurements
Length 1,000 mm Height 0.5 mm Width 12.5 mm Weight 144 g -
Documents
Data Sheets
-
Physical Characteristics
-
Mechanical & Environmental Characteristics
- Other variants
