Pigtails Multimode OM1

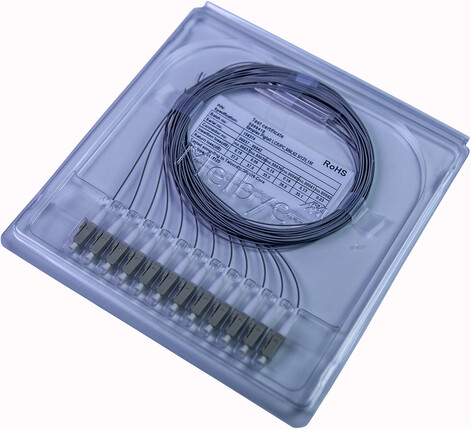

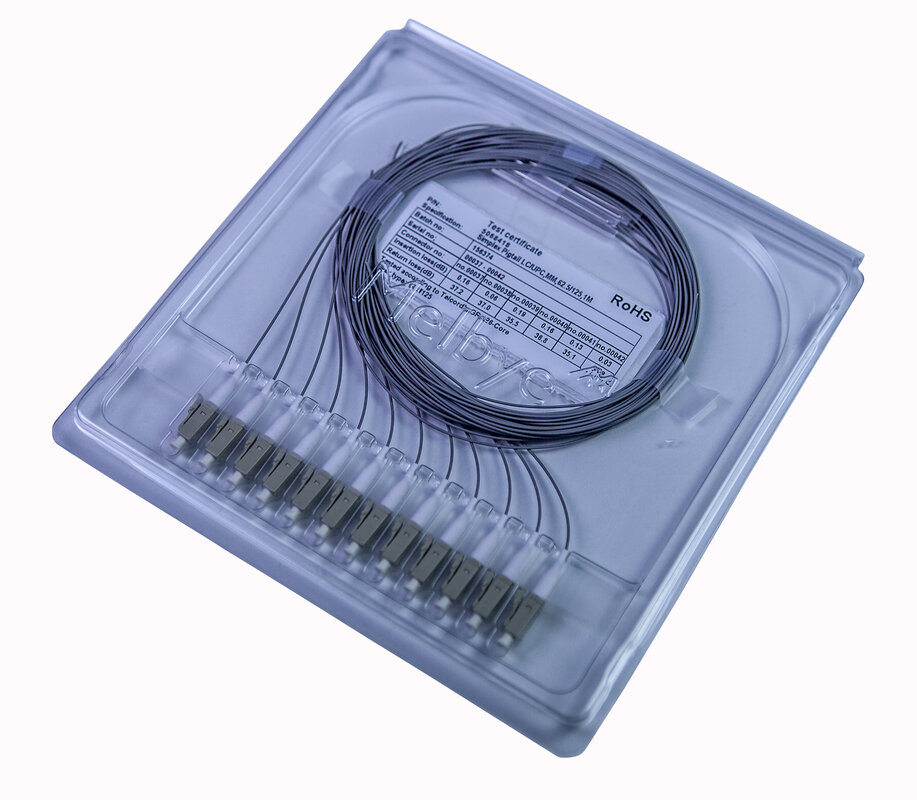

Fibreoptic pigtail, multimode OM1 900µm with one pre- terminated connector. To be used for splicing on a fibreoptic cable. Halogen-free according to EN 60754-1/2 and flame retardant according to IEC 60332-2-2. Meets the requirements of IEC 61300, EN186000-1, EIA/TIA-455 and TELCORDIA GR-326-CORE/GR-63. ID marked with a unique serial number for full traceability to component-level. Each package comes with individual measurement protocols. With pre-mounted 45 mm heat shrink sleeves.

3 variants

Product number Product name Connector Type Buffer Colour Length Compare
Product number 5068416
Product name Pigtail OM1 ST/PC 1.0m 12-Pack 62.5/125 Gray 900µm LSZH
Connector Type ST
Buffer Colour Gray
Length 1 m
Product number 5068417
Product name Pigtail OM1 SC/PC 1.0m 12-Pack 62.5/125 Gray 900µm LSZH
Connector Type SC
Buffer Colour Gray
Length 1 m
Product number 5068418
Product name Pigtail OM1 LC/PC 1.0m 12-Pack 62.5/125 Gray 900µm LSZH
Connector Type LC
Buffer Colour Gray
Length 1 m

Download Data sheet
