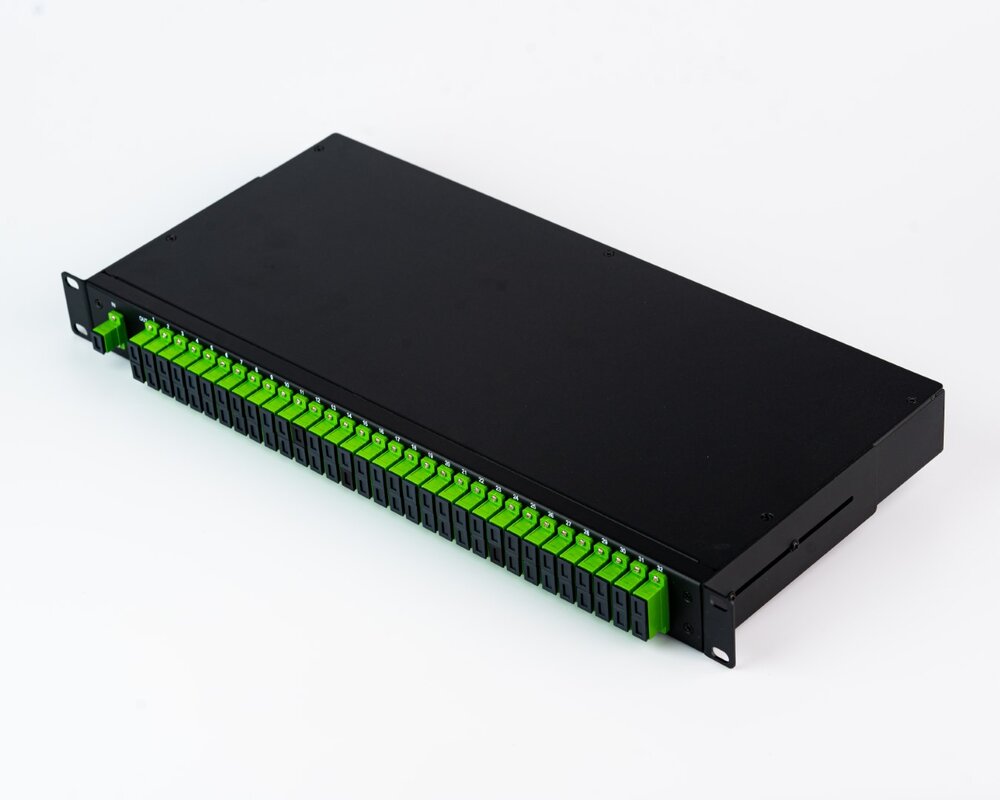

PLC Splitter 1x64 0.9mm G657A SC/APC 19" Chassi

Product code	5188593
Sales unit	Pcs
ETIM-Class	EC003870

Compare

Product specifications

Planar Lightwave Circuit (PLC) fiber optical splitters feature low IL and PDL, high isolation that suit for 1260 -1650nm optical fibre signals splitting and distributing in PON and CATV networks. Provide uniform division of an optical signal from one input fibre to multiple outgoing fibres.

Optical specifications do not include connector loss.

Height	1 mm
Weight	3,650 g

Documents

Data Sheets

5188593-FDV.pdf

Technical Specifications - Splitter

Splitter Type	PLC - 19 inch ODF
Port Configuration	1x64
Connector Type	SC/APC
Wavelengths	1260 - 1650 nm
Fibre Type	ITU-T G.657 A1
Max Insertion Loss	21 dB
Max Loss Uniformity	2.5 dB
Max Polarisation Dependant Loss	0.5 dB
Max Directivity	55 dB
Max Return Loss	55 dB
Temperature ranges for Operation	-40°c - +85°c
Temperature ranges for transport and storage	-40°c - +85°c

Other variants

Product number Product name Port Configuration Connector Type Compare

Product number 5178828

Product name PLC Splitter 1x2 0.9mm G657A SC/APC 19" Chassi

Port Configuration 1x2

Connector Type SC/APC

Product number 5178829

Product name PLC Splitter 1x4 0.9mm G657A SC/APC 19" Chassi

Port Configuration 1x4

Connector Type SC/APC

Product number 5178830

Product name PLC Splitter 1x8 0.9mm G657A SC/APC 19" Chassi

Port Configuration 1x8

Connector Type SC/APC

Product number 5178831

Product name PLC Splitter 1x16 0.9mm G657 SC/APC 19" Chassi

Port Configuration 1x16

Connector Type SC/APC

Product number 5178833

Product name PLC Splitter 1x32 + 1x2 0.9mm SC/APC 19" Chassi

Port Configuration 1x32 + 1x2

Connector Type SC/APC

Product number 5188592

Product name PLC Splitter 1x32 0.9mm G657A SC/APC 19" Chassi

Port Configuration 1x32

Connector Type SC/APC

Product number 5188593

Product name PLC Splitter 1x64 0.9mm G657A SC/APC 19" Chassi

Port Configuration 1x64

Connector Type SC/APC
