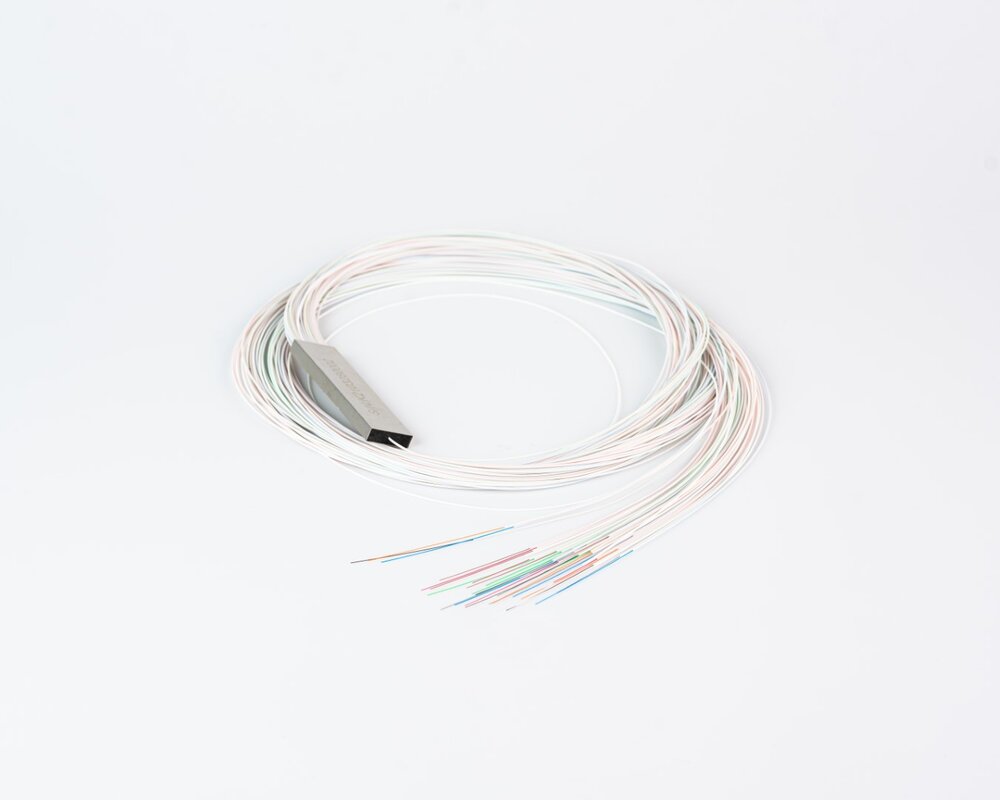

PLC Splitter 1x32 0.9mm G657A 1.5m No Connectors

Product code	5188556
Sales unit	Pcs
ETIM-Class

Compare

Product specifications

Planar Lightwave Circuit (PLC) fiber optical splitters feature low IL and PDL, high isolation that suit for 1260 -1650nm optical fibre signals splitting and distributing in PON and CATV networks. Provide uniform division of an optical signal from one input fibre to multiple outgoing fibres.

Optical specifications do not include connector loss.

Measurements

Length	18 mm
Height	120 mm
Width	80 mm
Weight	28 g

Documents

Data Sheets

5188556-FDV.pdf

Technical Specifications - Splitter

Splitter Type	PLC - 900µm
Port Configuration	1x32
Connector Type	No Connector
Wavelengths	1260 - 1650 nm
Fibre Type	ITU-T G.657 A1
Max Insertion Loss	17 dB
Max Loss Uniformity	1.3 dB
Max Polarisation Dependant Loss	0.3 dB
Max Directivity	55 dB
Max Return Loss	55 dB
Temperature ranges for Operation	-40°c - +85°c
Temperature ranges for transport and storage	-40°c - +85°c

Other variants

Product number Product name Port Configuration Connector Type Compare

Product number 5188552

Product name PLC Splitter 1x2 0.9mm G657A 1.5m No Connectors

Port Configuration 1x2

Connector Type No Connector

Product number 5188553

Product name PLC Splitter 1x4 0.9mm G657A, 1.5m No Connectors

Port Configuration 1x4

Connector Type No Connector

Product number 5188554

Product name PLC Splitter 1x8 0.9mm G657A, 1.5m No Connectors

Port Configuration 1x8

Connector Type No Connector

Product number 5188555

Product name PLC Splitter 1x16 0.9mm G657A 1.5m No Connectors

Port Configuration 1x16

Connector Type No Connector

Product number 5188556

Product name PLC Splitter 1x32 0.9mm G657A 1.5m No Connectors

Port Configuration 1x32

Connector Type No Connector

Product number 5188562

Product name PLC Splitter 1x2 0.9mm G657A 1.5m SC/APC

Port Configuration 1x2

Connector Type SC/APC

Product number 5188567

Product name PLC Splitter 1x64 0.9mm G657A 1.5m SC/APC

Port Configuration 1x64

Connector Type SC/APC

Product number 5188572

Product name PLC Splitter 1x2 0.9mm G657A 1.5m LC/APC

Port Configuration 1x2

Connector Type LC/APC

Product number 5188573

Product name PLC Splitter 1x4 0.9mm G657A, 1.5m LC/APC

Port Configuration 1x4

Connector Type LC/APC

Product number 5188574

Product name PLC Splitter 1x8 0.9mm G657A, 1.5m LC/APC

Port Configuration 1x8

Connector Type LC/APC

Product number 5188575

Product name PLC Splitter 1x16 0.9mm G657A, 1.5m LC/APC

Port Configuration 1x16

Connector Type LC/APC

Product number 5188576

Product name PLC Splitter 1x32 0.9mm G657A, 1.5m LC/APC

Port Configuration 1x32

Connector Type LC/APC
