Patch SPX 1xSC/UPC-SC/UPC 3m SM G657A2 White 4mm LSZH FTTx

Product code	5072386
Count	1
Sales unit	Pcs
ETIM-Class	EC001263

Compare

Product specifications

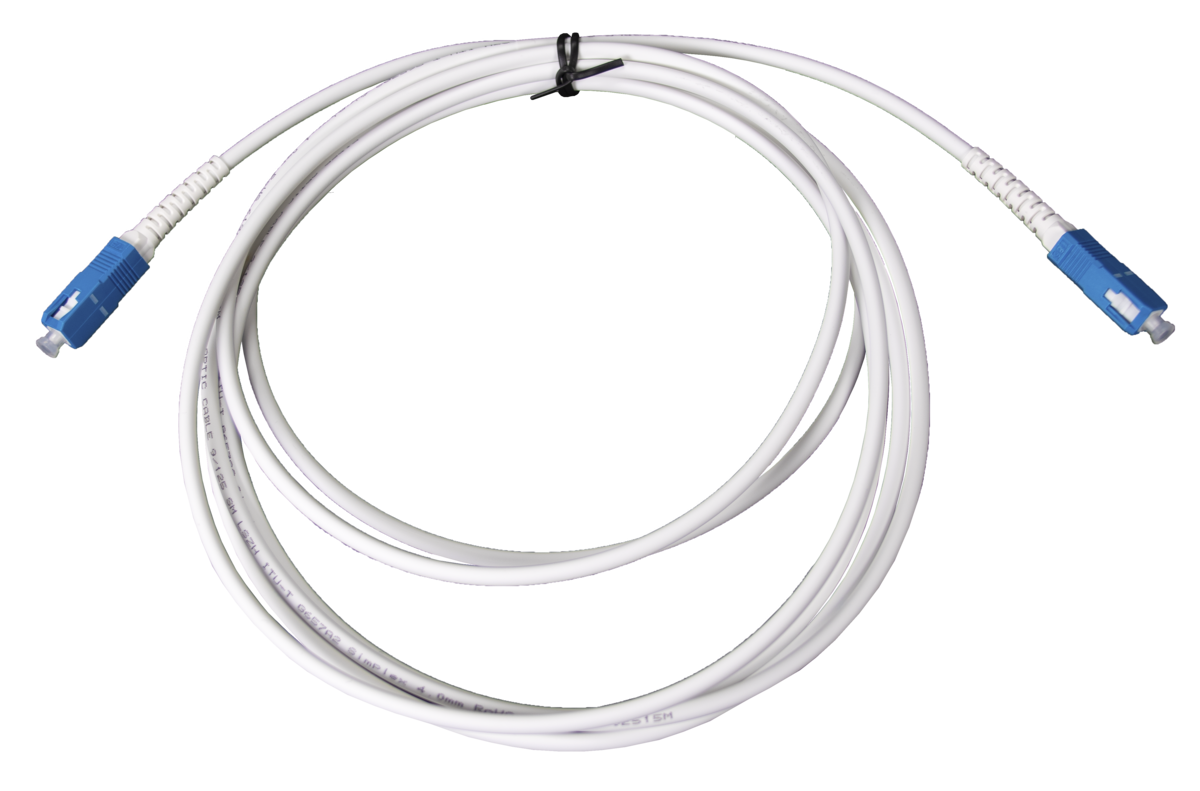

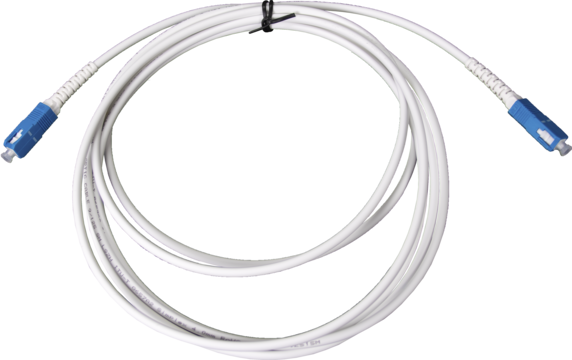

Fiberoptic patch cord singlemode G657A2 with white 4mm simplex cable and SC/UPC-SC/UPC connectors.

Halogen-free according to EN 60754-1/2 and flame-retardant according to IEC 60332-2-2. Meets the requirements of IEC 61300, EN186000-1, EIA/TIA-455 and TELCORDIA GR-326-CORE/GR-63.

ID marked with a unique number for full traceability and delivered with individual measurement protocols.

Measurements

Length	210 mm
Height	15 mm
Width	180 mm
Weight	48 g

Documents

Data Sheets

5072386-FDV.pdf

Technical Specifications - Connectors

Max insertion loss per connector (UPC)	0.2 dB
Max Optical Return Loss for UPC connector	-55 dB
Radius of Curvature UPC	7-12
Max Vertex Offset	50 µm

Technical Specifications - Patch Cords

Length	3
Fibre Type	ITU-T G.657 A2
Outer Sheath Material	LSZH (Low Smoke Zero Halogen)
Colour of Cable Sheath	White
Cable Diameter	4 mm
Temperature ranges for Operation	-40°C to +85°C
Temperature ranges for transport and storage	-40°C to +85°C
Halogen Free	Yes

Other variants

Product number Product name Length Compare

Product number 5072383

Product name Patch SPX 1xSC/UPC-SC/UPC 0.5m SM G657A2 White 4mm LSZH FTTx

Length 0.5

Product number 5072384

Product name Patch SPX 1xSC/UPC-SC/UPC 1m SM G657A2 White 4mm LSZH FTTx

Length 1

Product number 5072385

Product name Patch SPX 1xSC/UPC-SC/UPC 2m SM G657A2 White 4mm LSZH FTTx

Length 2

Product number 5072386

Product name Patch SPX 1xSC/UPC-SC/UPC 3m SM G657A2 White 4mm LSZH FTTx

Length 3

Product number 5072388

Product name Patch SPX 1xSC/UPC-SC/UPC 5m SM G657A2 White 4mm LSZH FTTx

Length 5

Product number 5072389

Product name Patch SPX 1xSC/UPC-SC/UPC 7.5m SM G657A2 White 4mm LSZH FTTx

Length 7.5

Product number 5072390

Product name Patch SPX 1xSC/UPC-SC/UPC 10m SM G657A2 White 4mm LSZH FTTx

Length 10

Product number 5072391

Product name Patch SPX 1xSC/UPC-SC/UPC 15m SM G657A2 White 4mm LSZH FTTx

Length 15

Product number 5072392

Product name Patch SPX 1xSC/UPC-SC/UPC 20m SM G657A2 White 4mm LSZH FTTx

Length 20

Product number 5072393

Product name Patch SPX 1xSC/UPC-SC/UPC 25m SM G657A2 White 4mm LSZH FTTx

Length 25

Product number 5072394

Product name Patch SPX 1xSC/UPC-SC/UPC 30m SM G657A2 White 4mm LSZH FTTx

Length 30

Product number 5072395

Product name Patch SPX 1xSC/UPC-SC/UPC 35m SM G657A2 White 4mm LSZH FTTx

Length 35

Product number 5072396

Product name Patch SPX 1xSC/UPC-SC/UPC 40m SM G657A2 White 4mm LSZH FTTx

Length 40

Product number 5072397

Product name Patch SPX 1xSC/UPC-SC/UPC 50m SM G657A2 White 4mm LSZH FTTx

Length 50
