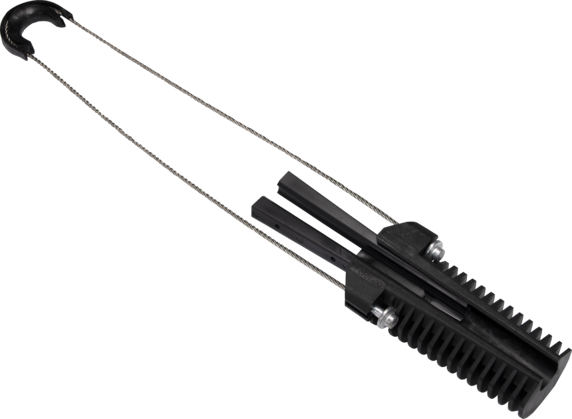

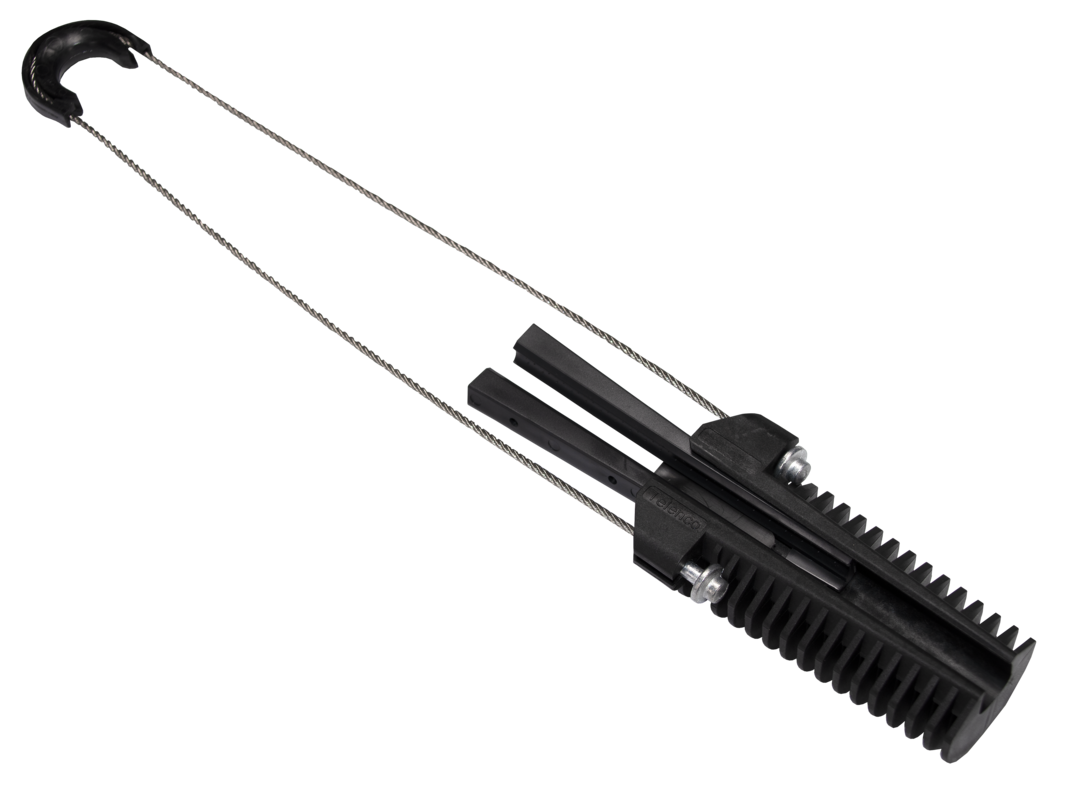

Anchoring clamp AC68 260 FO 6-9mm
| Product code | 87115002 | |
|---|---|---|
| Count | 1 | |
| Sales unit | Pcs | |
| ETIM-Class | EC011590 |
-
Measurements
Length 120 mm Height 33 mm Width 58 mm Weight 125 g -
Documents
Data Sheets
-
Technical Specifications - Pole Line Hardware
For Cable Figure ADSS Hardware Type Dead-end clamp For cable diameter 6-9mm Deadend Length 120 mm Bail Type Wire in Stainless Steel Max span length 70 m Max Tension Load 4,500 N - Other variants
