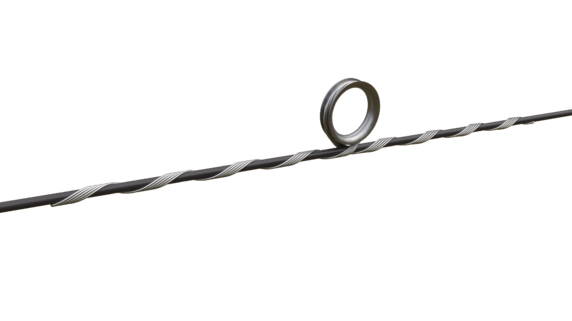

Suspension GSFO-7.60/8.27 With the thimble assembled

Product code	87114008
Count	1
Sales unit	Pcs
ETIM-Class	EC011590

Compare

Length	900 mm
Height	30 mm
Width	90 mm
Weight	322 g

Documents

Data Sheets

87114008-FDV.pdf

Installation Instructions

GSFO_monteringsanvisning_Mellomfeste.pdf

Technical Specifications - Pole Line Hardware

For Cable Figure	ADSS
Hardware Type	Suspension spiral
For cable diameter	7.60-8.27mm
Suspension Tangent Support Material	Galvanized steel
Thimble Included	Yes
Max span length	70 m

Other variants

Product number Product name For cable diameter Compare

Product number 87114002

Product name Suspension GSFO-11,35/12,30 With the thimble assembled

For cable diameter 11.35-12.30mm

Product number 87114003

Product name Suspension GSFO-12,31/13,30 With the thimble assembled

For cable diameter 12.31-13.30mm

Product number 87114004

Product name Suspension GSFO-13,31/14,35 With the thimble assembled

For cable diameter 13.31-14.35mm

Product number 87114005

Product name Suspension GSFO-14.36/15.50 With the thimble assembled

For cable diameter 14.36-15.50mm

Product number 87114006

Product name Suspension GSFO-15,51/16,60 With the thimble assembled

For cable diameter 15.51-16.60mm

Product number 87114007

Product name Suspension GSFO-6,65/7,35 With the thimble assembled

For cable diameter 6.65-7.35mm

Product number 87114008

Product name Suspension GSFO-7.60/8.27 With the thimble assembled

For cable diameter 7.60-8.27mm

Product number 87114009

Product name Suspensionset GSFO-18,91/20,25 With the thimble assembled

For cable diameter 18.91-20.25mm

Product number 87114022

Product name Suspensionset GSFO-20,96/21,75 With the thimble assembled

For cable diameter 20.96-21.75mm
