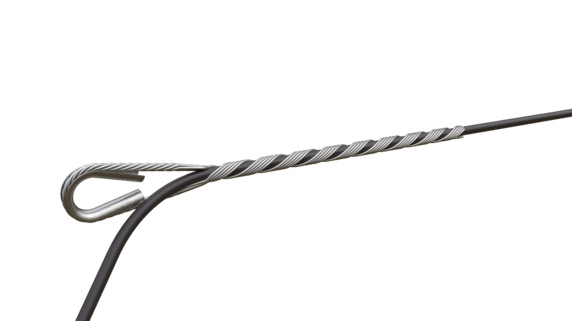

Tension set GRFO-6,65/7,35 With the thimble assembled

Product code	87114017
Count	1
Sales unit	Pcs
ETIM-Class	EC011590

Compare

Length	440 mm
Height	20 mm
Width	240 mm
Weight	184 g

Documents

Data Sheets

87114017-EN-FDV.pdf

Technical Specifications - Pole Line Hardware

For Cable Figure	ADSS
Hardware Type	Dead-end spiral
For cable diameter	6.65-7.35mm
Colour Marking Spiral	Blue
Deadend Length	480 mm
Deadend Material	Galvanized steel
Spiral-Rod Diameter	1.78 mm
Spiral-Rod Count	5

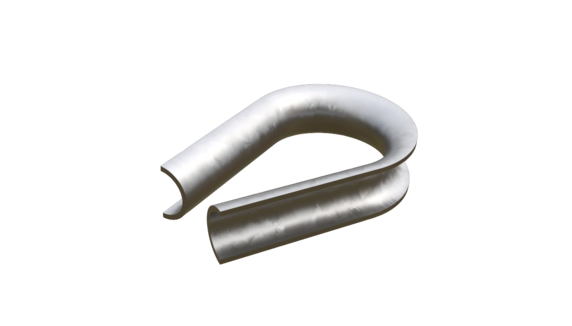

Thimble Included	Yes
Max span length	70 m

Other variants

Product number Product name For cable diameter Compare

Product number 87114012

Product name Tension set GRFO-11,35/12,30 With the thimble assembled

For cable diameter 11.35-12.30mm

Product number 87114013

Product name Tension set GRFO-12,31/13,30 With the thimble assembled

For cable diameter 12.31-13.30mm

Product number 87114014

Product name Tension set GRFO-13,31/14,35 With the thimble assembled

For cable diameter 13.31-14.35mm

Product number 87114015

Product name Tension set GRFO-14.36/15.50 With the thimble assembled

For cable diameter 14.36-15.50mm

Product number 87114016

Product name Tension set GRFO-15.51/16.60 With the thimble assembled

For cable diameter 15.51-16.60mm

Product number 87114017

Product name Tension set GRFO-6,65/7,35 With the thimble assembled

For cable diameter 6.65-7.35mm

Product number 87114018

Product name Tension set GRFO-7.60/8.27 With the thimble assembled

For cable diameter 7.6-8.27mm
