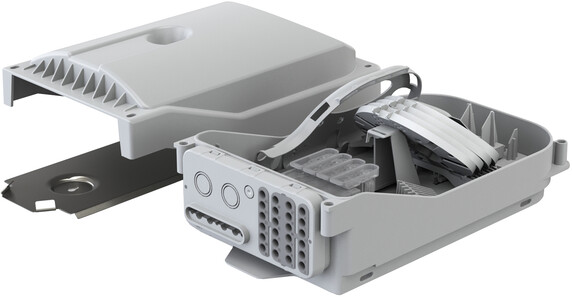

Distribution Closure Hybrid FM 48F IP65

Product code 5060947 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC002598 Copy
  • Product specifications

    Robust IP65 rated halogen-free distribution closure for outdoor/indoor wall mounting. 48 fibers can be spliced from several incoming cables or midspan against 24 subscriber cables (2F). The closure is delivered complete with splice trays (12F/tray), fiber management, cable-/duct seals and wall bracket.

    The unique base plate makes it possible to connect 24 subscriber ducts or cables. Ducts and cables are automatically strainrelieved and sealed to the box during installation.

    • Wall mounting plate: Stainless steel.
    • Colour: Grey RAL 7035
    • Number of splice trays: 4 splice trays.
    • Splice tray capacity: 12 splice protectors heat shrink Ø2,4 x 45mm.
    • Fiber bending radius: R = 30mm.
    • Looping length of fibres: 300 mm.
    • Feeder cable: Ø 4,5 mm up to including Ø 8,3 mm.
    • Subscriber cable/duct: 24 x Ø 3,0 – 8,0 ± 0,1 mm.
    • Feeder cable: 4x Ø 4.5 - 8.3 mm or midspan and 2 x M20/25.
  • Measurements
    Length 390 mm Copy
    Height 390 mm Copy
    Width 220 mm Copy
    Weight 3,000 g Copy
  • Documents
  • Technical Specifications - Termination/Distribution Boxes
    Environment Outdoor, Indoor Copy
    Number of splices 48 Copy
    Number of Entry/cable ports 30 Copy
    Cable/duct diameters 4.5 - 8.3mm Copy
    Mid-span access Yes Copy
    Splice trays included 4 Copy
    Max Fibre Count per tray 12 Copy
    Splice Holder Included Yes Copy
    IP Codes IP65 Copy
    Impact protection degree IK08 Copy
    Colour Light Gray RAL 7035 Copy
    Material ABS Copy
    Halogen Free Yes Copy
    UV Proof Yes Copy
    Temperature ranges for installation -10°c til +60°c Copy
    Temperature ranges for Operation -35°c til +60°c Copy
