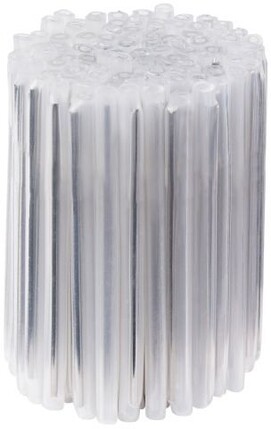

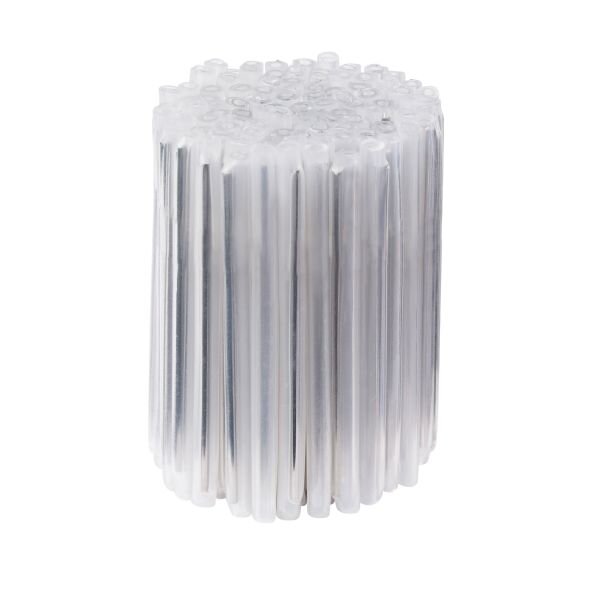

Heat shrink sleeves 45mm. 250/900um fiber, 100pcs/bag

Product code	5057618
Count	1
Sales unit	Pcs
ETIM-Class	EC001123

Compare

Product specifications

High-quality sleeves with glue and very good melting properties for protection of fiber optic fusion splices. Made up by crosslinked polyolefin, hot fusion tubing steinless reinforced steel rod.

Length	45 mm
Height	3 mm
Width	3 mm
Weight	0.4 g

Documents

Data Sheets

5057618-FDV.pdf

Specifications - Splice Protection Sleeves

Sleeve Type	Single Fibre
Length	45 mm
Thickness After Shrinking	2.4 mm
Conforming Standard	telcordia gr-1380-core
Shrinking temperature	+90 - +110 °C
Operating temperature	-45 - +100 °C

Other variants

Product number Product name Length Thickness After Shrinking Compare

Product number 5057615

Product name Heat shrink sleeves 25mm. 250um fiber, 100pcs/bag

Length 25 mm

Thickness After Shrinking 1.3 mm

Product number 5057616

Product name Heat shrink sleeves 25mm. 250/900um fiber, 100pcs/bag

Length 25 mm

Thickness After Shrinking 2.4 mm

Product number 5057617

Product name Heat shrink sleeves 40mm. 250/900um fiber, 100pcs/bag

Length 40 mm

Thickness After Shrinking 2.4 mm

Product number 5057618

Product name Heat shrink sleeves 45mm. 250/900um fiber, 100pcs/bag

Length 45 mm

Thickness After Shrinking 2.4 mm

Product number 5057619

Product name Heat shrink sleeves 60mm. 250/900um fiber, 100pcs/bag

Length 60 mm

Thickness After Shrinking 2.4 mm

Product number 5057670

Product name Splice protection sleeve 40mm 250-900µm fiber , 200pcs/bag

Length 40 mm

Thickness After Shrinking 2.8 mm

Product number 5057672

Product name Splice protection sleeve 60mm 250-900µm fiber , 200pcs/bag

Length 60 mm

Thickness After Shrinking 2.8 mm
