ORM1 Optical Socket 2xSCS/LCD
| Product code | 5053106 | |
|---|---|---|
| Count | 1 | |
| Sales unit | Pcs | |
| ETIM-Class | EC001409 |
-
Product specifications

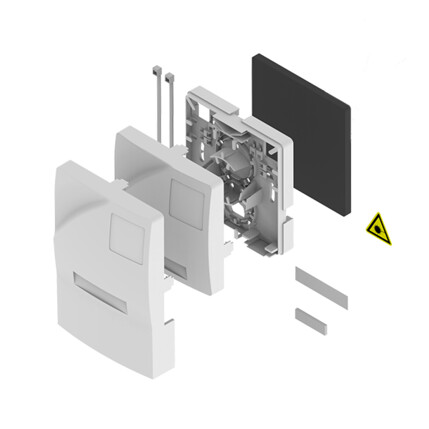

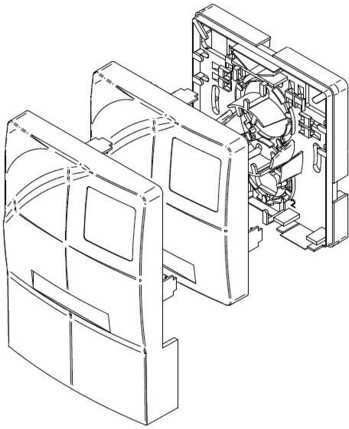

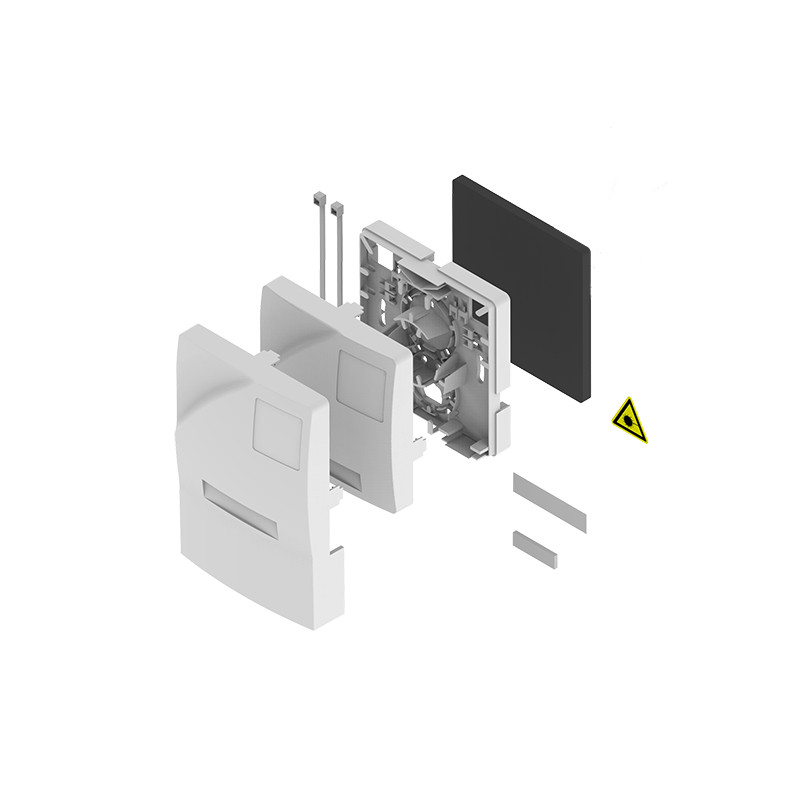

The Fiber Access Terminal Box ORM 1 is designed to terminate an optical network using 2 to 4 optical fibers at a customer terminal point. It is installed indoors on a wall.
- Capacity 4 optical connectors

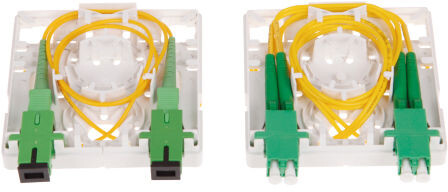

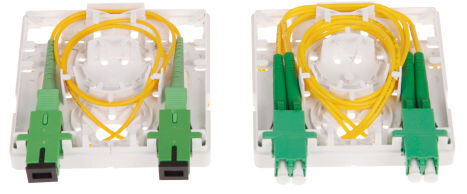

- Connector holder SC simplex or LC duplex
- Maximum capacity is 4 optical splices, heat shrink, RECORD splice, Fiberlock
- Attractive design for indoor usage

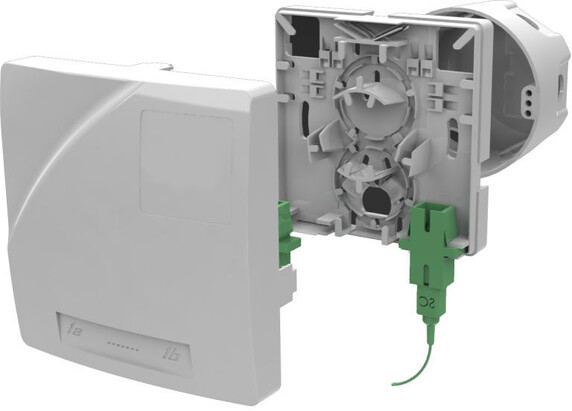

- Installing on a surface or flush-mounting box
- Simple optical management
- Direct fiber termination by a connector
- Standard socket dimensions
- Input possibility of fiber with connector
- Use only for fibers G657a, b
Ingress Protection IP30 / IP54 (under special conditions)
Impact Protection IK07
Flammability Degree HB
Material ABS
Color RAL 9003

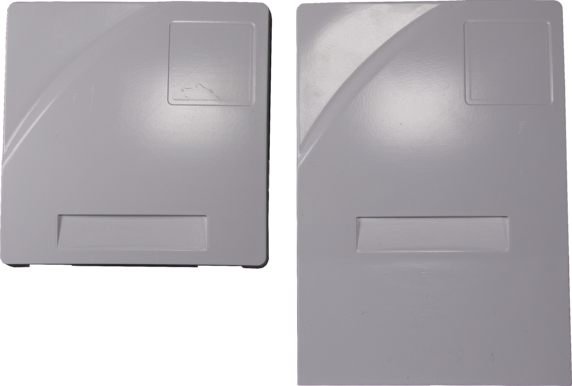

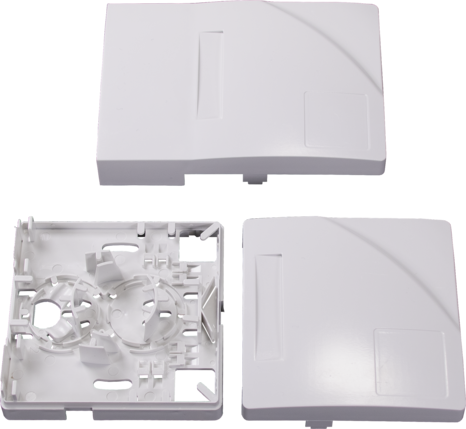

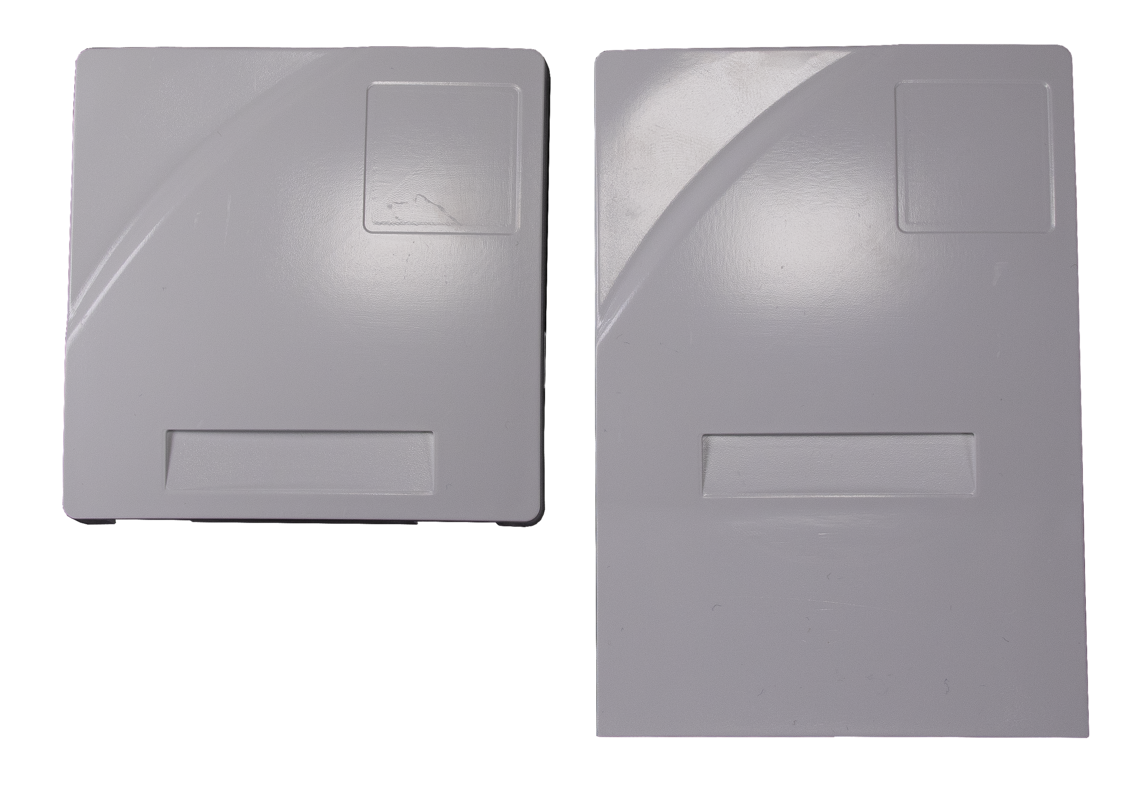

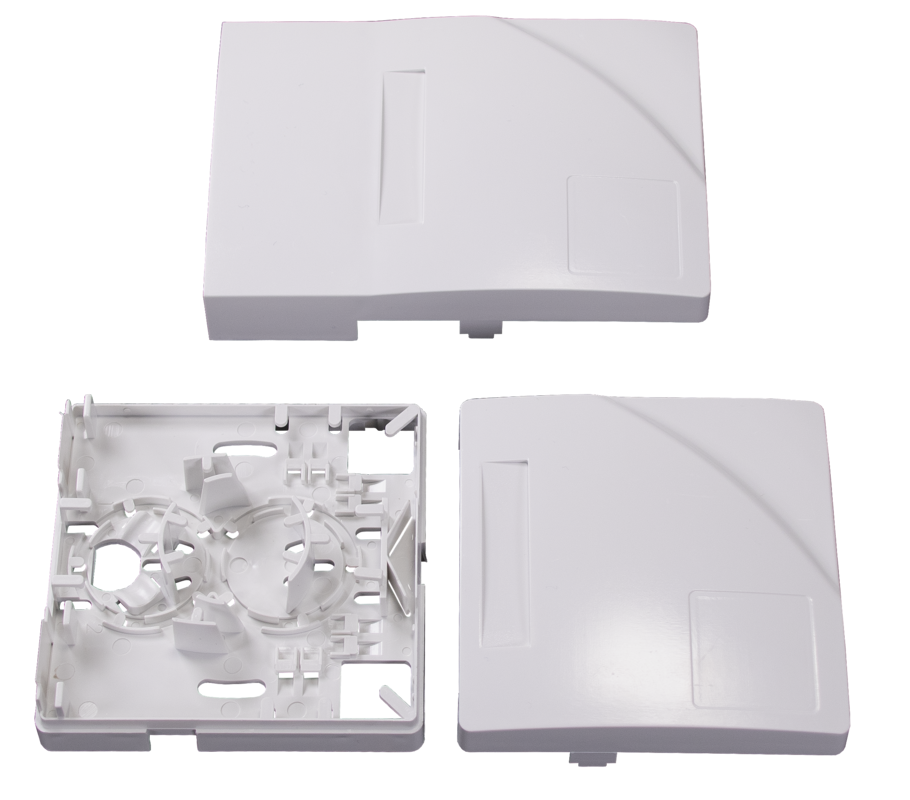

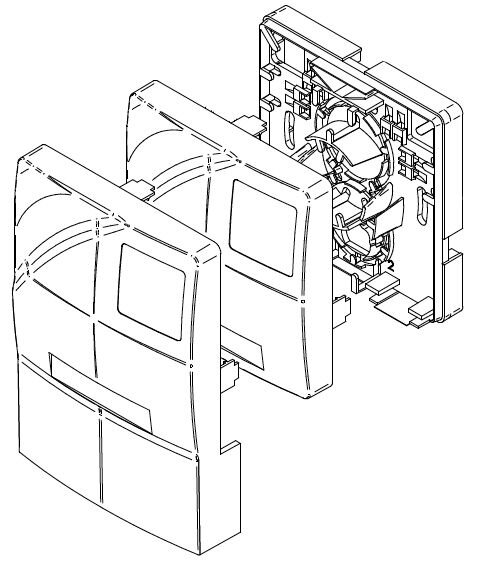

Dimensions (H × W × D) 116 × 81 × 25 mm / extended cover
81 × 81 × 25 mm / short cover
Weight 0.08 kg
Environment indoor
Number of Splices 1–4
Number of Connectors 1–4
Connector Type LC or SC
-
Measurements
Length 114 mm Height 50 mm Width 80 mm Weight 70 g -
