ORM8 optical distribution 4xSCD

Product code 5058114 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC002067 Copy
  • Product specifications

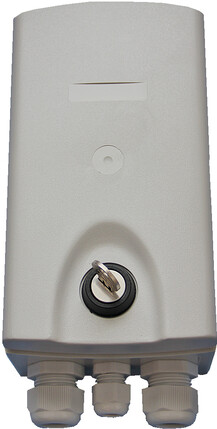

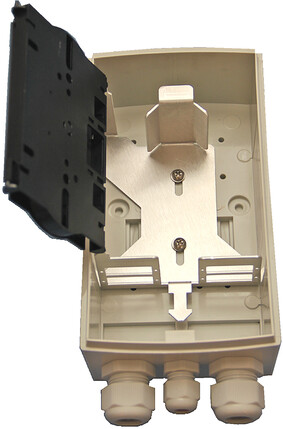

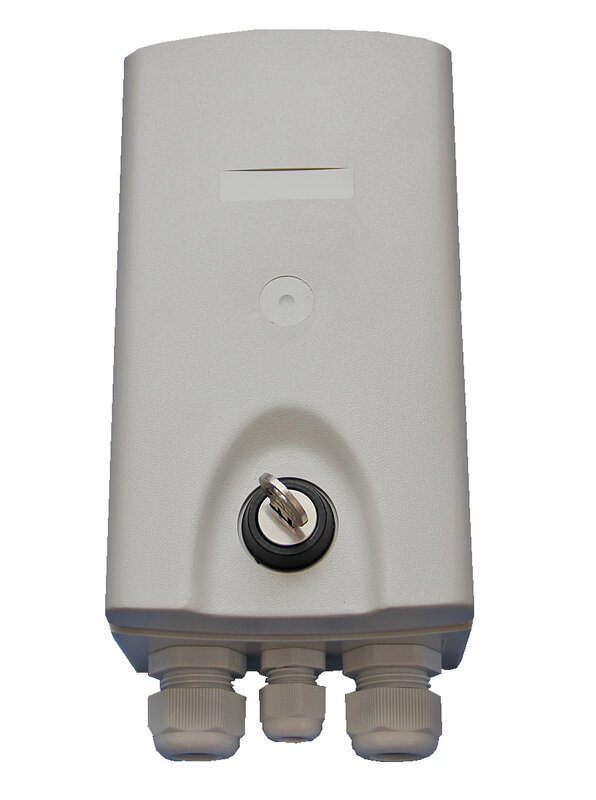

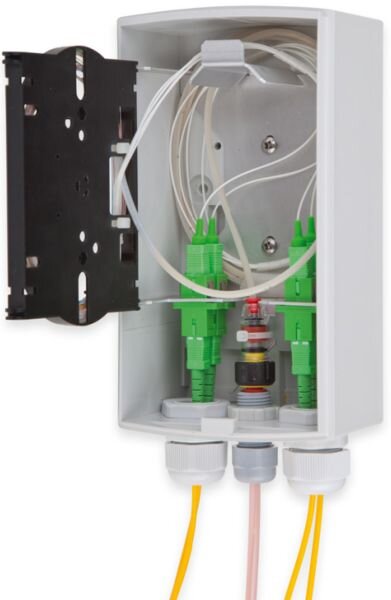

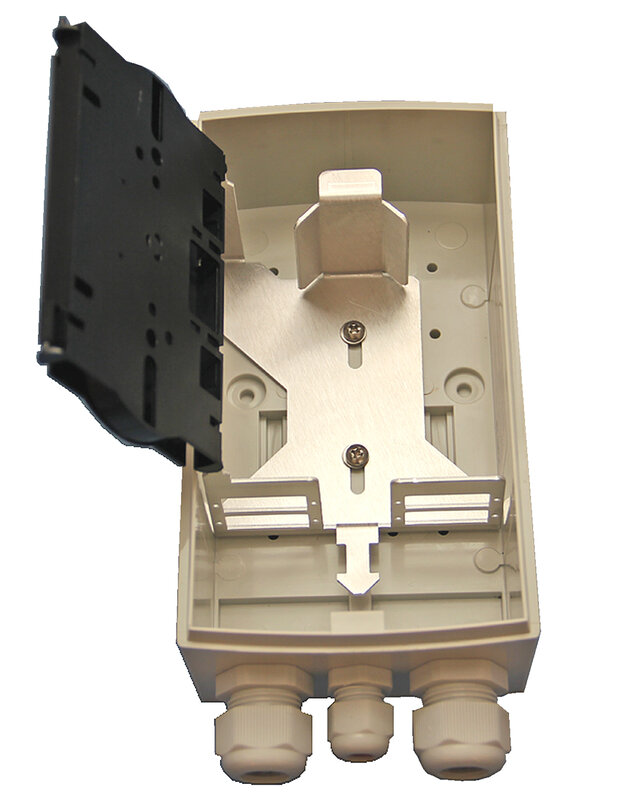

    The ORM 8 optical distribution box is designed for the placement of 8 optical connectors both indoors and outdoors. The distribution box may be complemented by a simple bracket, which enables it to be post-mounted.

    • Capacity of 8 optical connectors
    • Connector holder SC, ST, FC, E2000, LC
    • Placement of optical fi ber reserve, length 1 m
    • PG bushings
    • Lockable lid
    • Easy assembly
    • Wall-mounted or post-mounted
    • Coverage degree IP 54



    Inputs / Outputs (quantity × range) 4× 3 mm, 1× 4–8 mm
    Grommets (type and number of used grommets) 2× PG16, 1× PG9
    Ingress Protection IP54
    Impact Protection IK10
    UV Resistance yes
    Flammability Degree V0
    Temperature Range –40 °C / +70 °C
    Material PC / ABS
    Color light gray RAL 7035
    Dimensions (H × W × D) 185 × 103 × 73 mm
    Weight 0.6 kg
    Environment indoor
    outdoor
    Number of Splices 1–12
    Number of Connectors 1–12
    Connector Type E2000
    LC
    SC
  • Measurements
    Length 260 mm Copy
    Height 118 mm Copy
    Width 110 mm Copy
    Weight 800 g Copy
  • Documents
    Data Sheets
    5058114-EN-FDV.pdf
  • Technical Specifications - Termination/Distribution Boxes
    Environment Indoor, Outdoor Copy
    Number of splices 8 Copy
    Number of connectors 8 Copy
    Connector Type sc/upc duplex, sc/apc duplex, lc/upc quad, lc/apc quad Copy
    Number of Entry/cable ports 3 Copy
    Cable/duct diameters 8× 3 mm, 1× 4–8 mm (2xpg16 + 1xpg9 ) Copy
    Splice trays included 1 Copy
    Max Fibre Count per tray 8 Copy
    Splice Holder Included Yes Copy
    Lockable Yes Copy
    IP Codes ip54 Copy
    Impact protection degree ik10 Copy
    Colour Light Gray RAL 7035 Copy
    Material abs-pc Copy
    Halogen Free Yes Copy
    Fire Resistance ul94-v0 Copy
    UV Proof Yes Copy
    Temperature ranges for Operation –40 °c / +70 °c Copy
