Coyote 6.5x22 480F dome/dark fiber
Product code | 5060087 | |
---|---|---|
Sales unit | Pcs | |
ETIM-Class | EC002598 |
-
Product specifications

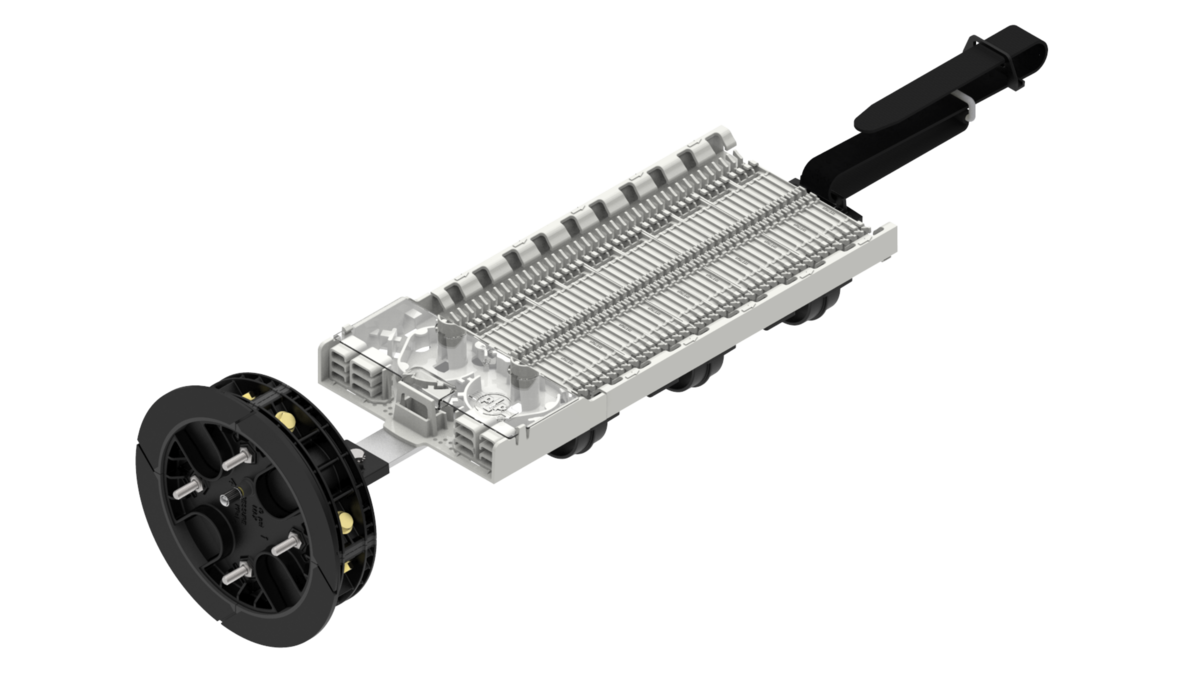

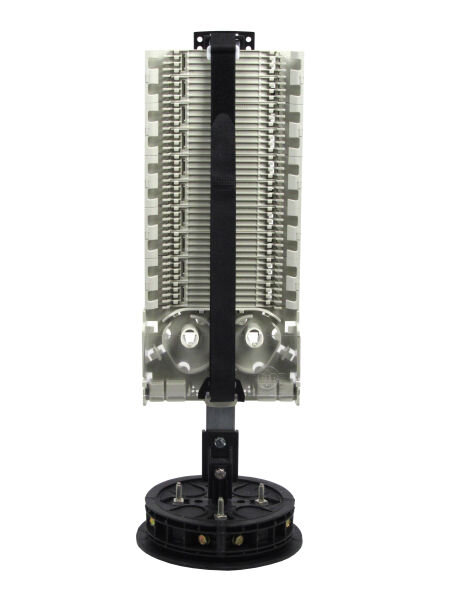

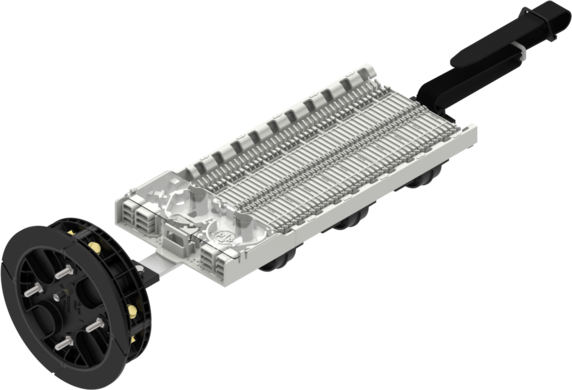

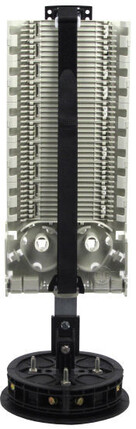

Optical Dome Closure (ODC) for installation in fibre optic telecommunication networks. Watertight according to IP68 and used for splicing traditional cables, ADSS cables and micro-cables underground, directly buried, in manholes or aerial. The domes can be pole-, wall- or wire mounted. Installation is quick and easy, and no heat shrinkage is required. Sealing between dome and cable is done with silicone grommets that are available for different cable dimensions and as single or multi-pass. Midspan is easily performed either through a single grommet with multi-pass or through two ports in the divisible base. The dome is tested according to Bellcore General Requirement GR-771-CORE.
- Fibre capacity: 480
- Splice modulle capacity: 5
- Entry ports: 4
- Dimension: 574 x 218 (256) mm
- Dark fiber storage
- Measurements
-
Documents
Data Sheets
-
Technical Specifications - Termination/Distribution Boxes
- Other variants
