Coyote STP-JR IP68 incl. 12F splice holders and adaptor plate

Product code 84010604 Copy
Sales unit Pcs Copy
ETIM-Class EC000762 Copy
  • Product specifications

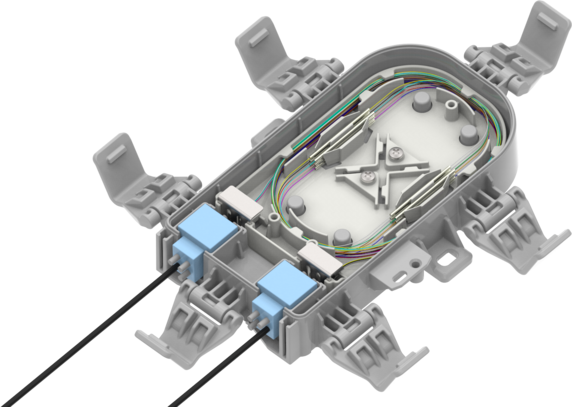

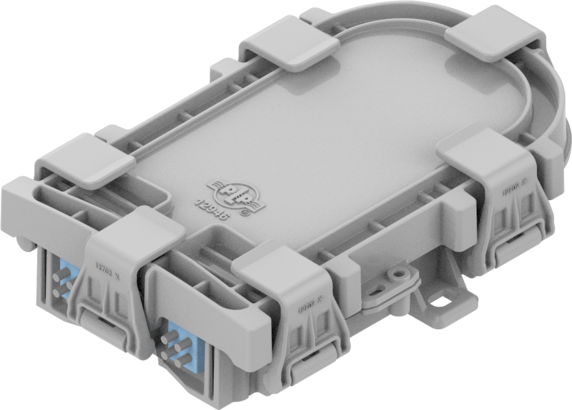

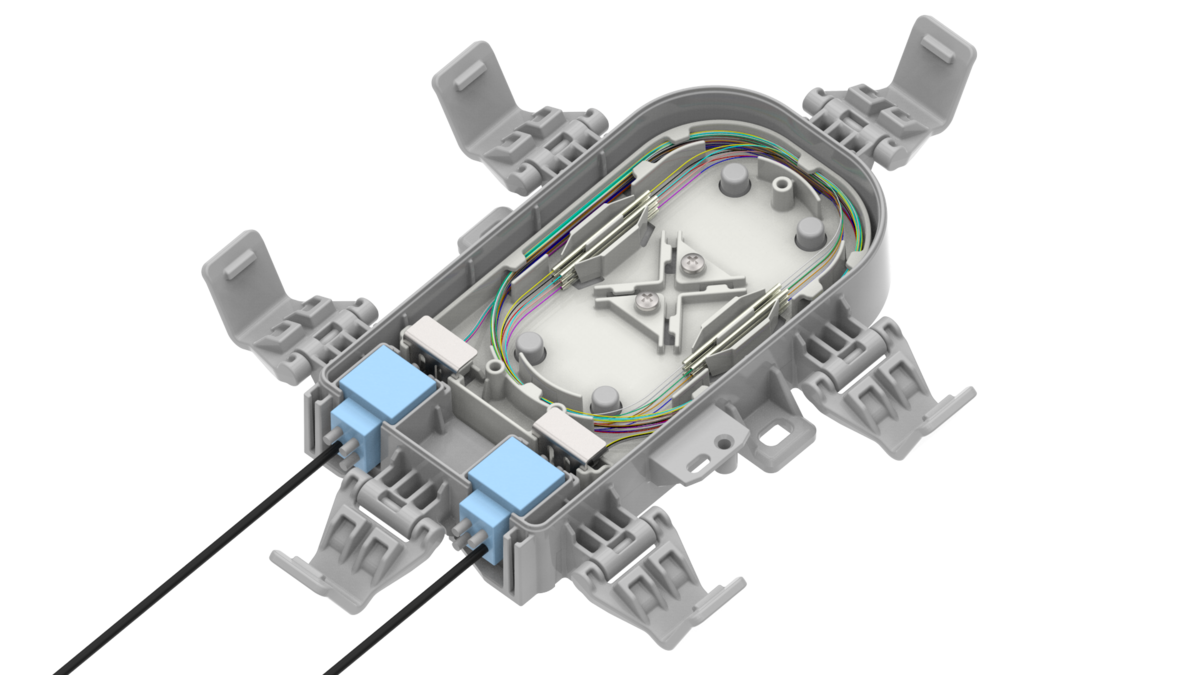

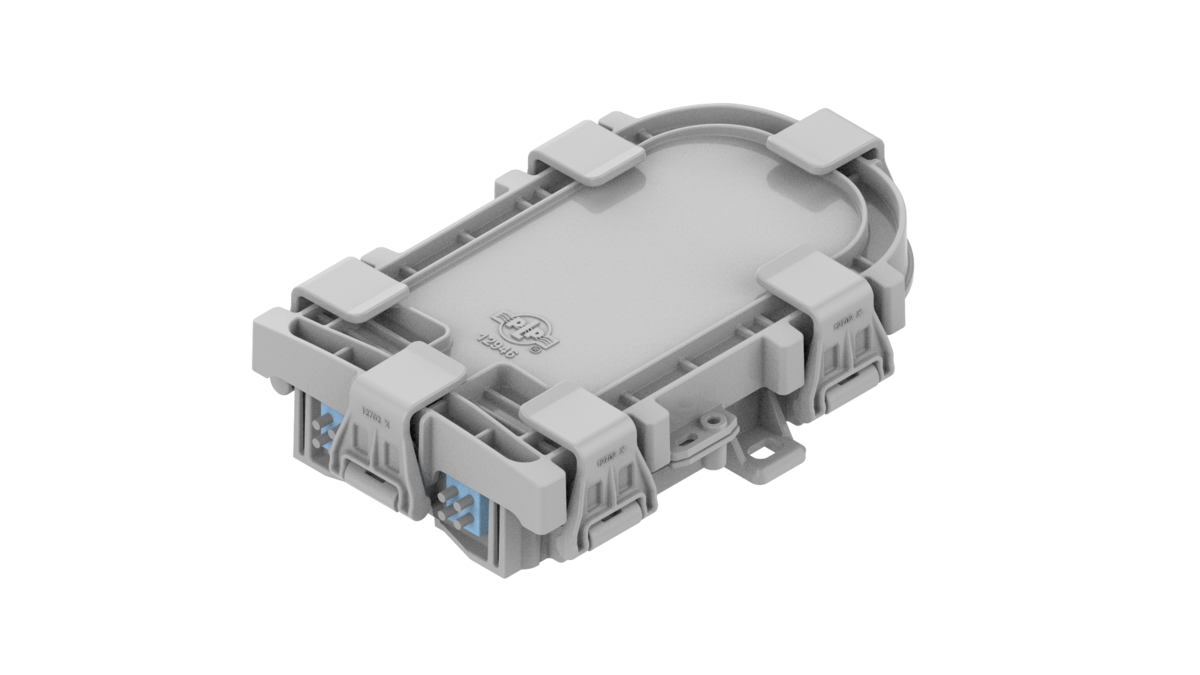

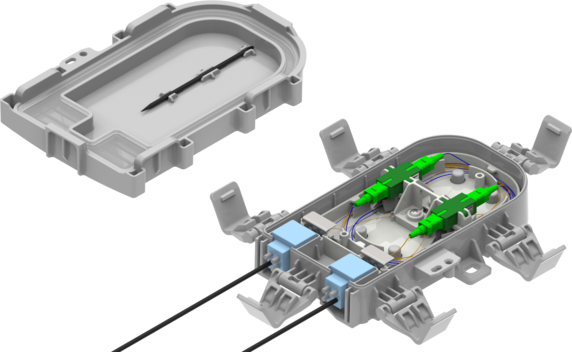

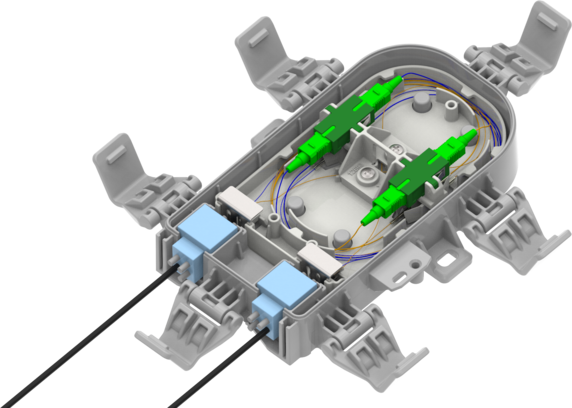

    The COYOTE® STP-JR is a tough, compact splice closure which supports straight splice, splice to drop/branch and internal splitter/connector solutions. It’s ideal for applications in the FTTx distribution network for splice applications of 12 fibers or less and connectivity solutions. It’s also ideal for blown fiber cable and microtube cable applications. It supports use of traditional buffer tube cables.

    • Capacity of up to 12 splices

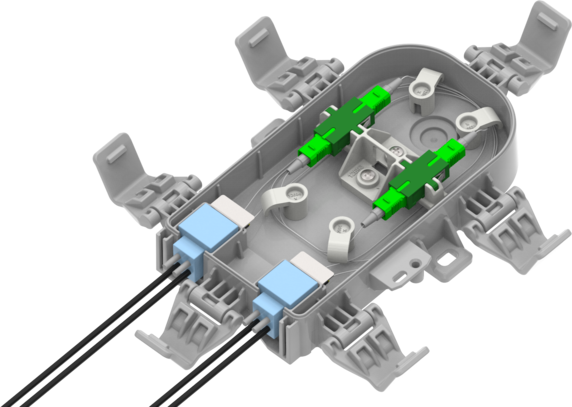

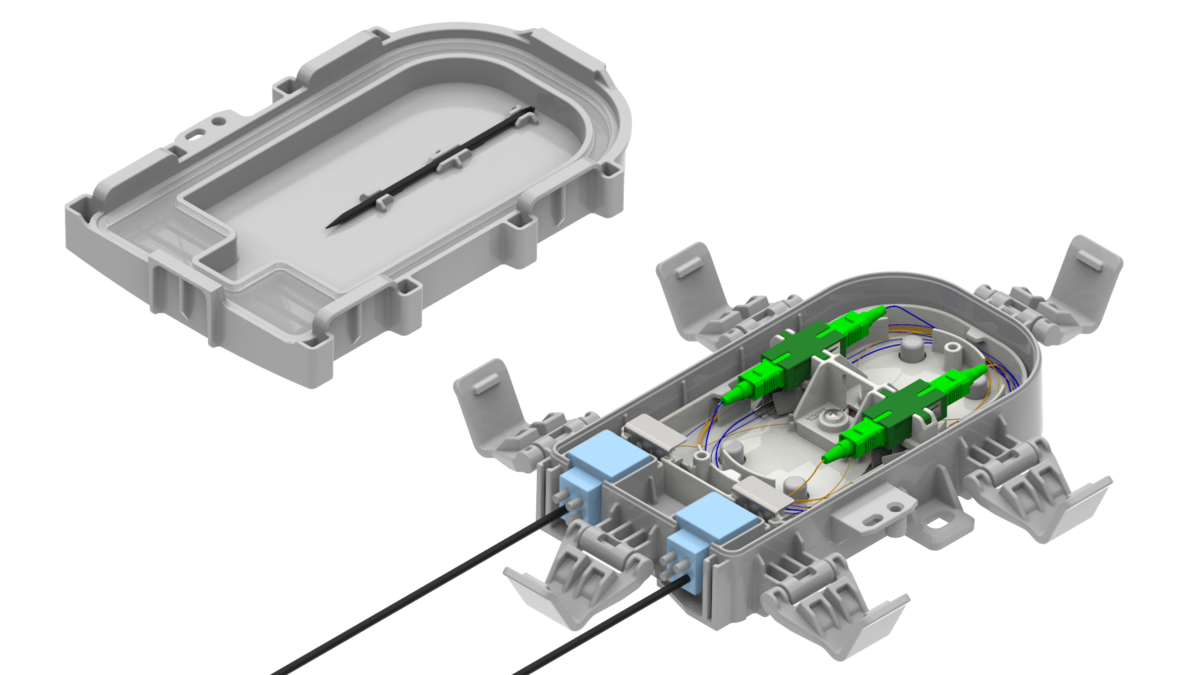

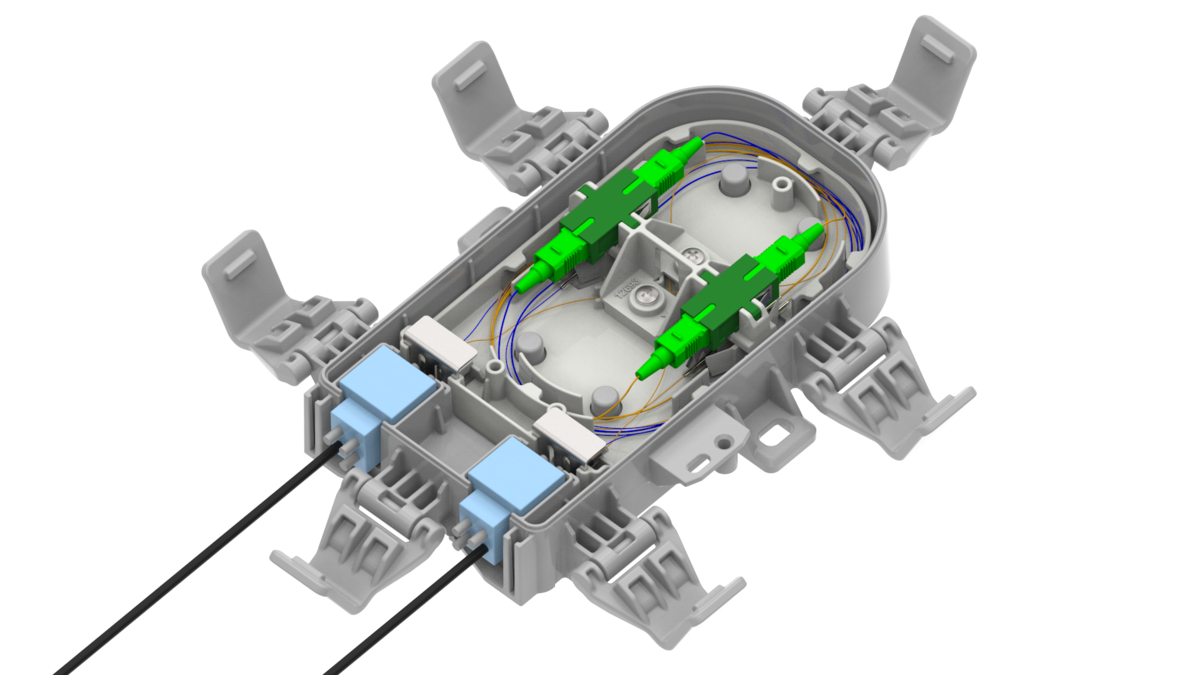

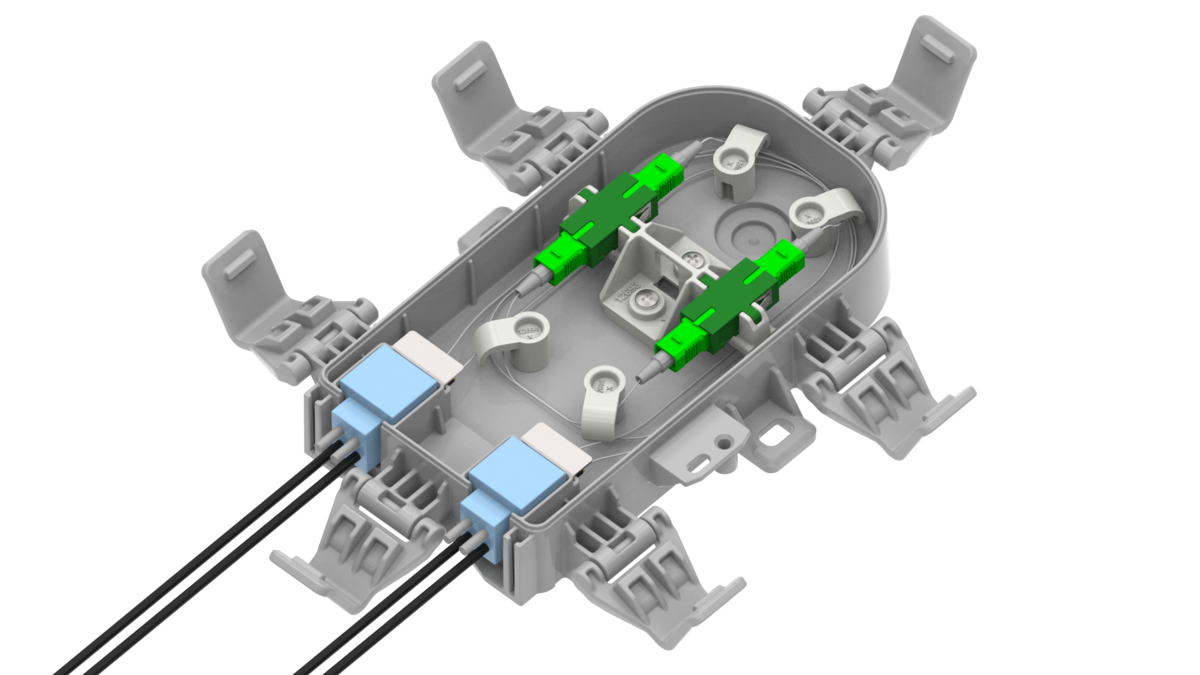

    • Capacity of up to 2× SC / 4× LC connectors
    • PLC Splitter capability (small format 1:8)
    • Aerial or underground application
    • UV-stable
    • Increased water and impact resistance (IP68)
    • Grommets system for cables with diameters 2.4–14 mm
    • Support for midspan (loop-through) cable
    • Intuitive installation


    Inputs / Outputs (quantity × range) 2× 2.4–14 mm
    Grommets (type and number of used grommets) Grommets System – 2 pcs
    Ingress Protection IP68
    Impact Protection IK10
    Flammability Degree V0
    Material PC
    Color light gray RAL 7035
    Dimensions (H × W × D) 200 × 125 × 49 mm
    Weight 0.4 kg
    Environment outdoor
    Number of Splices 1–12
    Number of Connectors 1–12
    Connector Type LC or SC
  • Measurements
    Length 200 mm Copy
    Height 49 mm Copy
    Width 125 mm Copy
    Weight 400 g Copy
