URM-LH optical distribution 4xPG9+3xPG24

Product code 5060880 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC002067 Copy
  • Product specifications

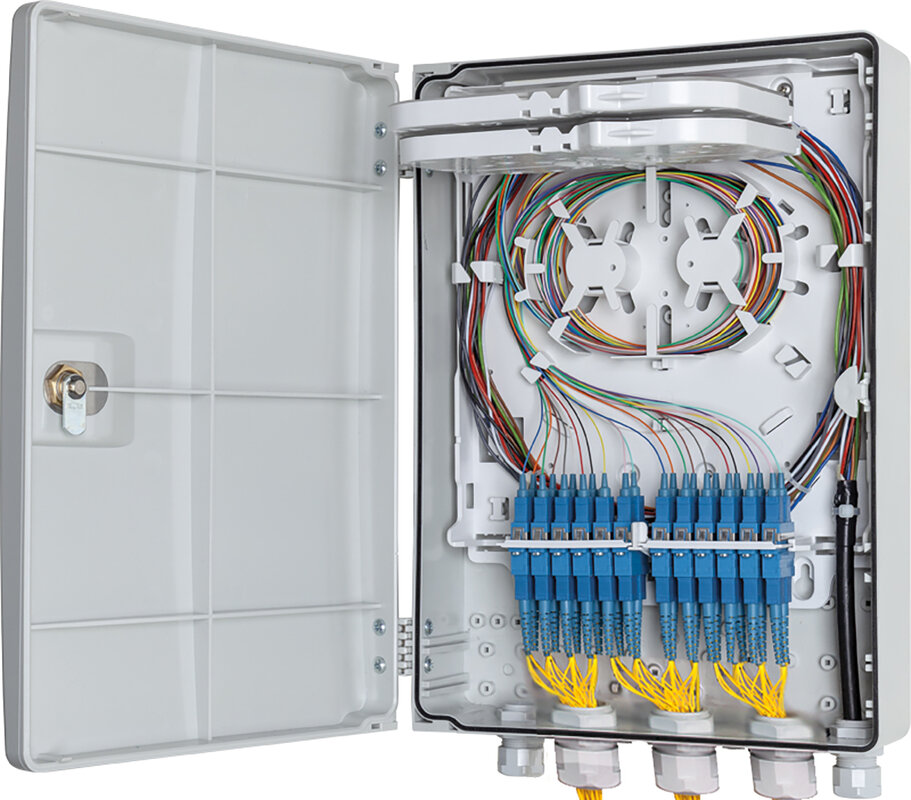

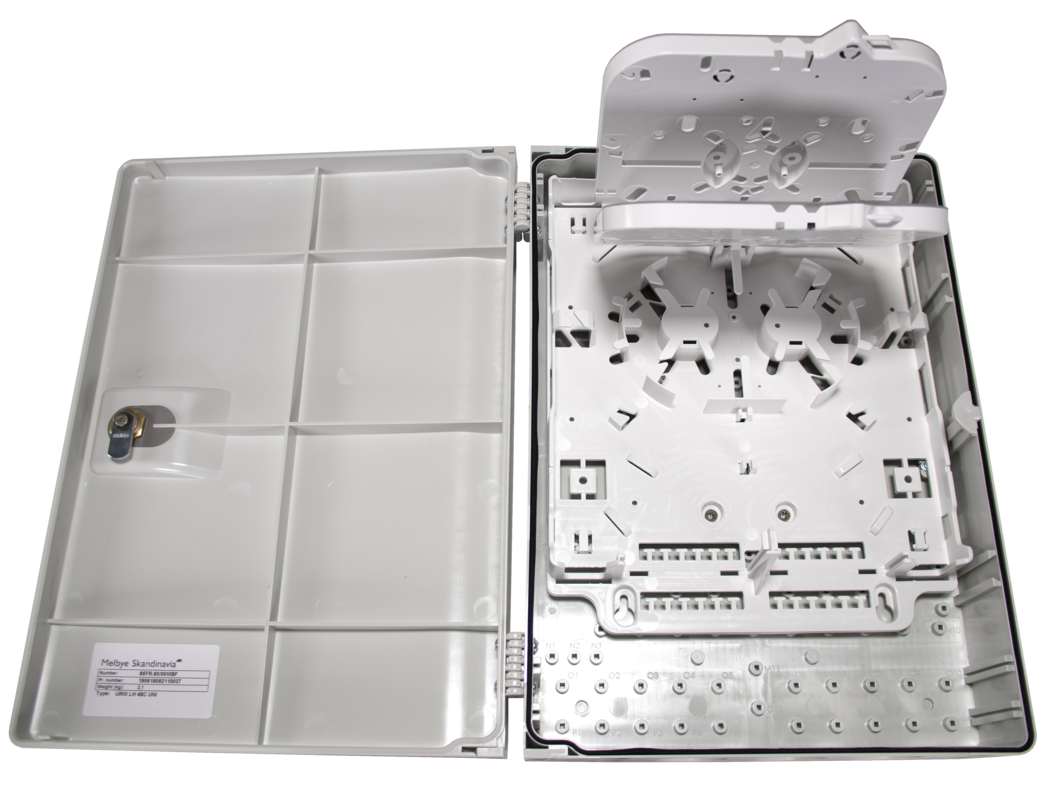

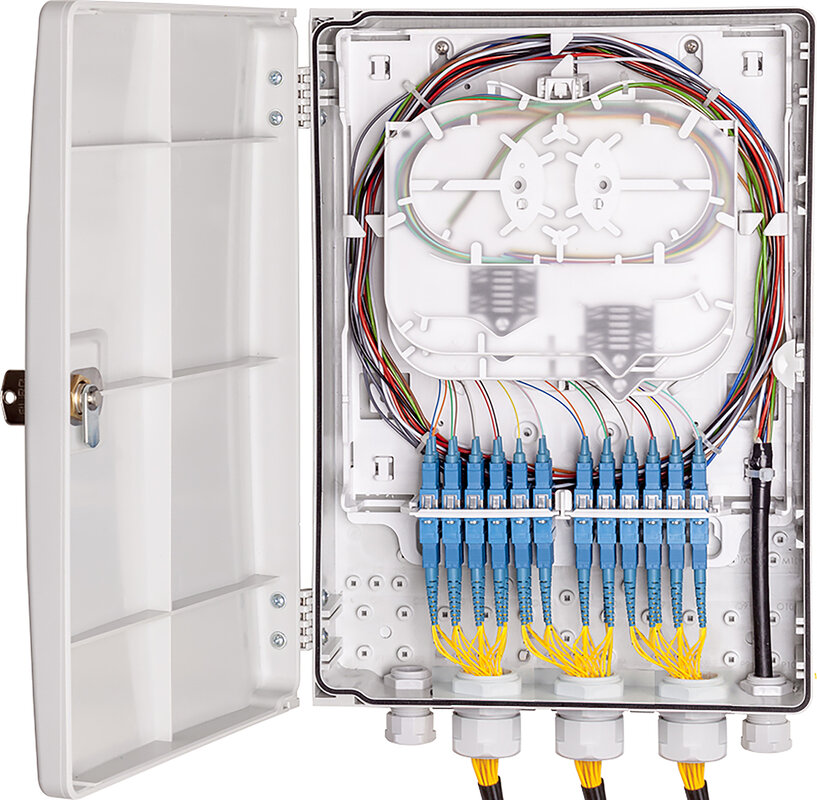

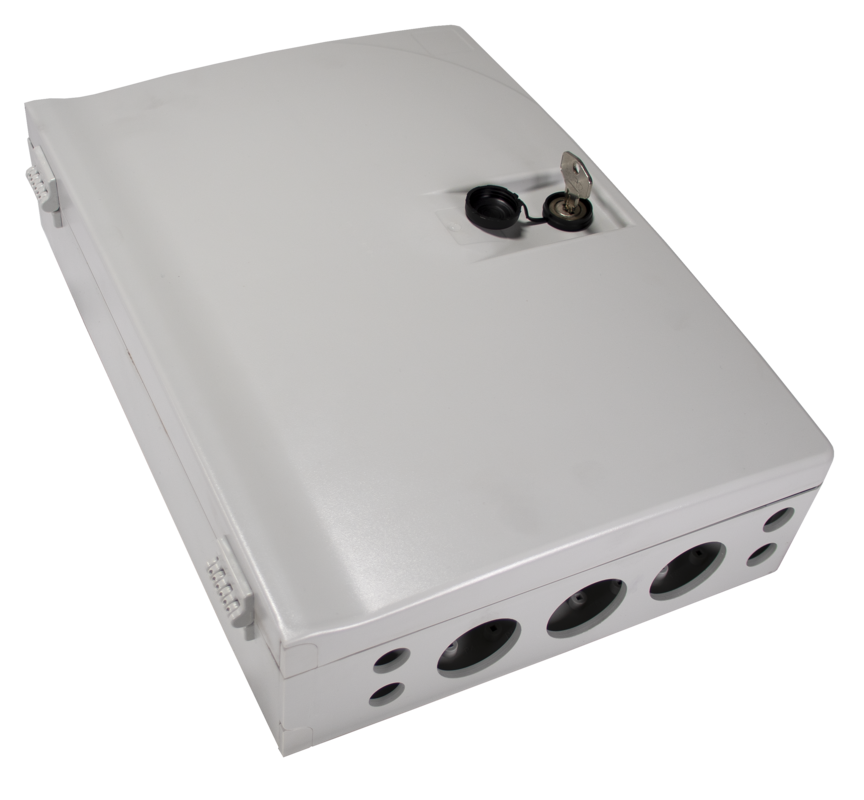

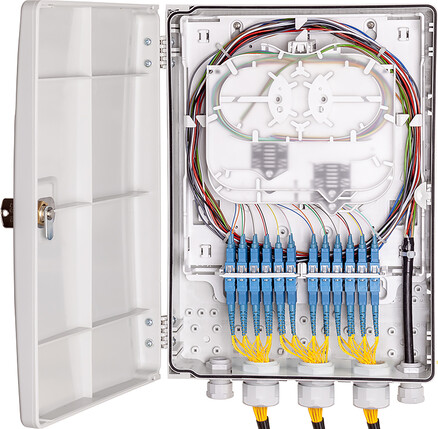

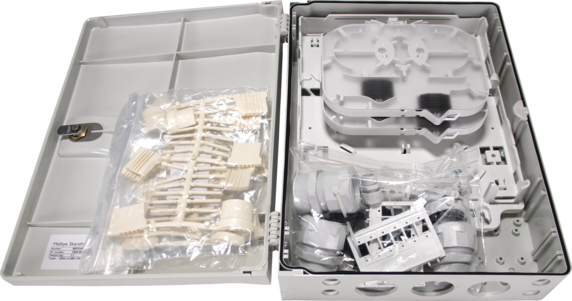

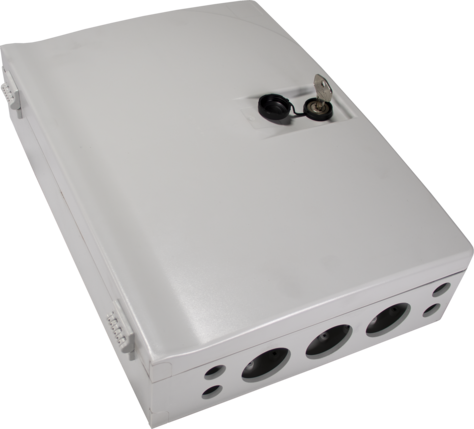

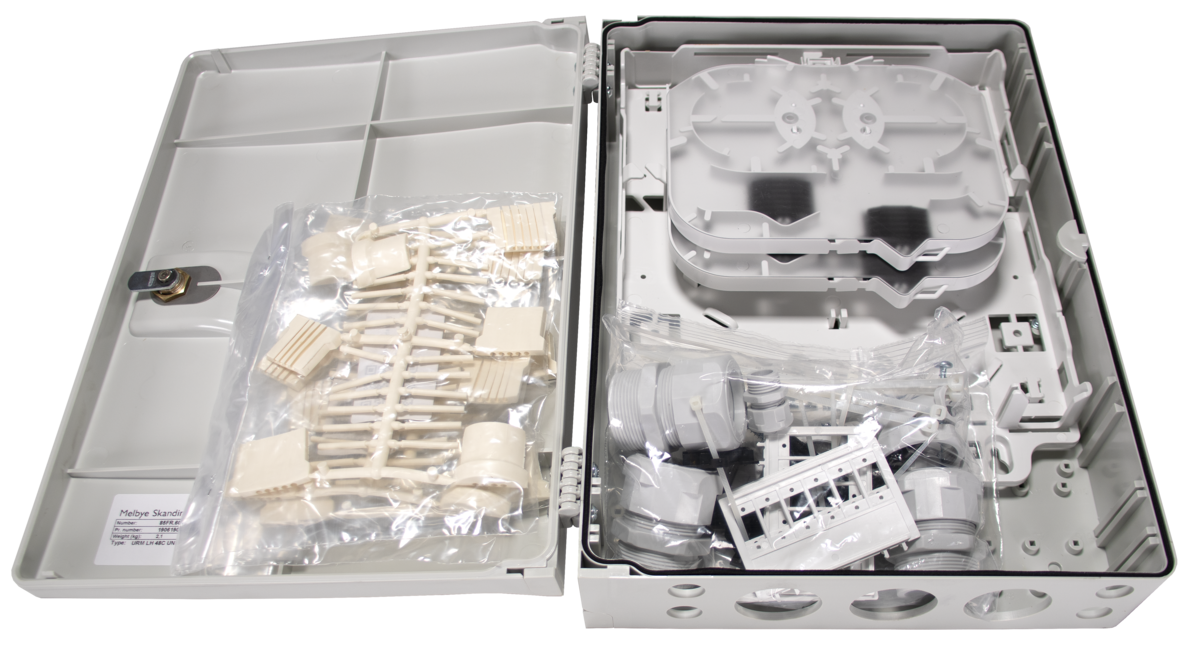

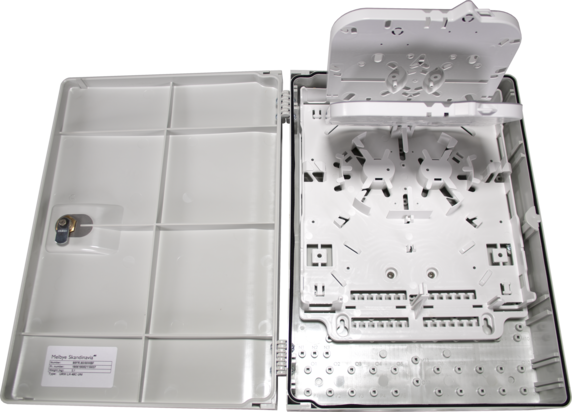

    The URM LH 48C UNI optical distribution box is designed for the placement of 24/48 optical connectors indoors and outdoors. The distribution box may be complemented by a bracket, which enables it to be post-mounted.

    • Maximum capacity of adapters is 12× SC simplex or 12× SC duplex or 12× LC duplex or 12× LC QUAD
    • 2× KM4 splice tray for the placement of optical splices
    • Possibility of PLC splitter placement
    • 4× PG9 bushing for input cable (5 - 8.5 mm)
    • 3× PG29 dividable bushing 24× 2–3 mm for output patchcords
    • Lockable door
    • Use for fibers G652D and G657 A,B



    Coverage Degree IP 54 according to EN 60529
    Self-Extinguishing Degree V0 to UL94
    Impact protection degree IK 10 to EN 50102
    Color Light gray RAL 7035
    Dimensions 250 × 380 × 90 mm
    Weight 1.6 kg
    Material – distribution box PC/ABS
    Material – bushings PA6, TPV
    Grommets 4× PG 9, 24× PG29 dividable bushing 24× 2–3 mm
    Solar radiation (UV) EN 60068-2-5
    Change of temperature -40 °C/+70 °C according to EN 60068-2-14
  • Measurements
    Length 450 mm Copy
    Height 100 mm Copy
    Width 290 mm Copy
    Weight 900 g Copy
  • Documents
    Data Sheets
    5060880-FDV.pdf
  • Technical Specifications - Termination/Distribution Boxes
    Environment Indoor, Outdoor Copy
    Number of splices 72 Copy
    Number of connectors 48 Copy
    Connector Type sc/upc simplex, sc/upc duplex, sc/apc simplex, sc/apc duplex, lc/upc duplex, lc/upc quad, lc/apc duplex, lc/apc quad Copy
    Number of Entry/cable ports 7 Copy
    Cable/duct diameters 4xpg9 (4x 5-8.5mm) + 3xpg29 (72x 2-3mm) Copy
    Splice trays included 2 Copy
    Max Fibre Count per tray 48 Copy
    Splice Holder Included Yes Copy
    Lockable Yes Copy
    IP Codes ip54 Copy
    Impact protection degree ik10 Copy
    Colour Light Gray RAL 7035 Copy
    Material abs-pc Copy
    Halogen Free Yes Copy
    Fire Resistance ul 94 v0 Copy
    UV Proof Yes Copy
    Temperature ranges for Operation -40 °c/+70 °c according to en 60068-2-14 Copy
