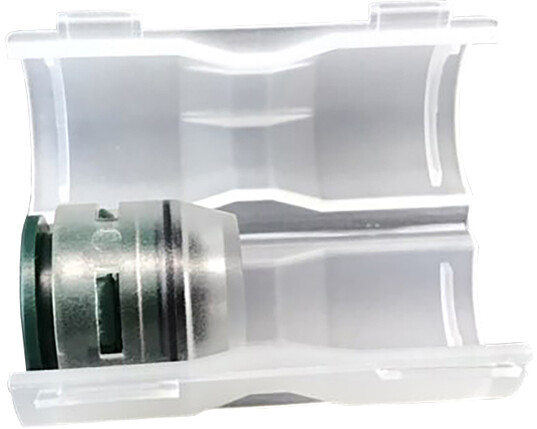

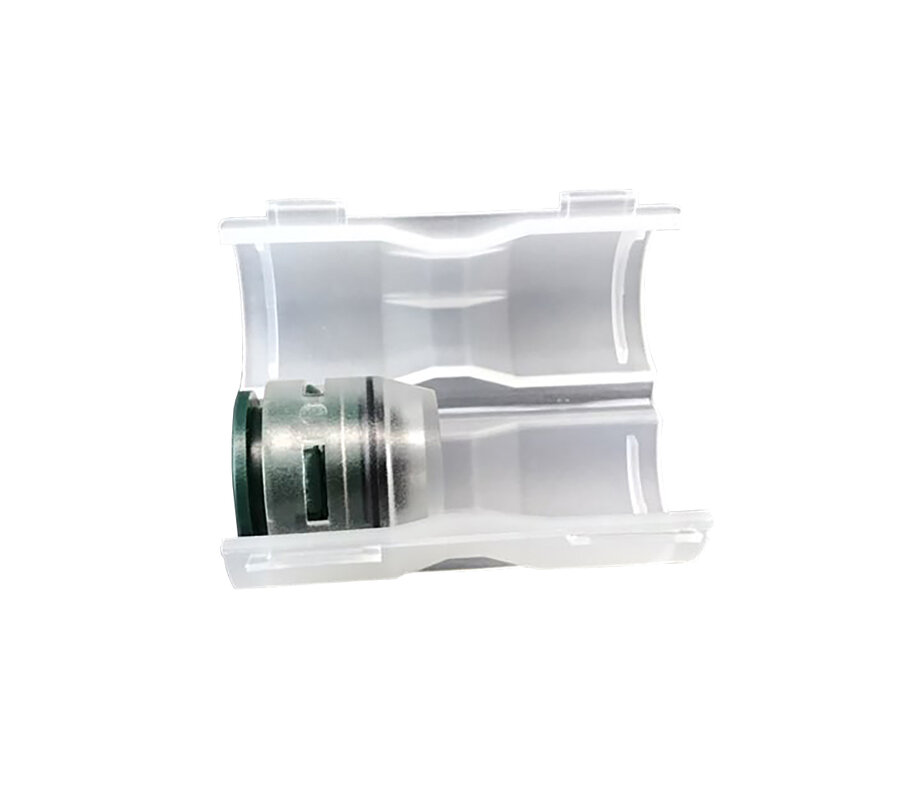

End Cap 14mm DB With cover for Direct Bury, GREEN

Product code	5044568
Sales unit	Pcs
ETIM-Class	EC002065

Compare

Product specifications

A high-performance DB endstop dedicated to direct buried systems for FTTx networks (micro duct systems) to guarantee easy use and long service time. Reliable technology of push-in connection. Straight connectors are used for splicing microducts with the same dimensions. The Connector is delivered with a mounted removable cover for direct buried purpose.

Length	56 mm
Height	26 mm
Width	31.6 mm
Weight	11.9 g

Documents

Data Sheets

5044568-FDV.pdf

Technical Specifications - End Caps

Type	Direct Buried With Cover
For Duct Size	14mm
Max Pressure	16 Bar
Colour	Transparent
IP Codes	IP68
Temperature ranges for Operation	-10°c - +60°c

Other variants

Product number Product name For Duct Size Compare

Product number 5044565

Product name End Cap 7mm DB With cover for Direct Bury, GREEN

For Duct Size 7mm

Product number 5044566

Product name End Cap 8mm DB With cover for Direct Bury, GREEN

For Duct Size 8mm

Product number 5044567

Product name End Cap 12mm DB With cover for Direct Bury, GREEN

For Duct Size 12mm

Product number 5044568

Product name End Cap 14mm DB With cover for Direct Bury, GREEN

For Duct Size 14mm

Product number 5044569

Product name End Cap 16mm DB With cover for Direct Bury, GREEN

For Duct Size 16mm

Product number 5044570

Product name End Cap 18mm DB With cover for Direct Bury, GREEN

For Duct Size 18mm

Product number 5044571

Product name End Cap 20mm DB With cover for Direct Bury, GREEN

For Duct Size 20mm
