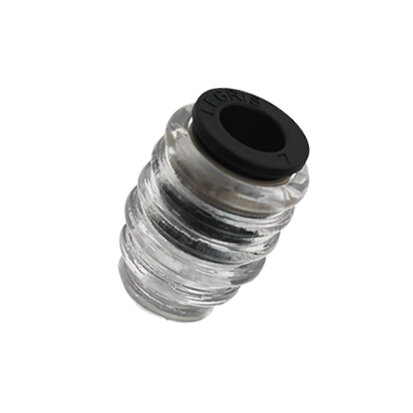

Endstop 14mm DB Direct buried, 25 bar
Product code | 5042430 | |
---|---|---|
Count | 1 | |
Sales unit | Pcs | |
ETIM-Class | EC002065 |
-
Product specifications
A high-performance DB endstop dedicated to direct buried systems for FTTx networks (micro duct systems) to guarantee easy use and long service time. Reliable technology of push-in connection. Compact design and intuitive installation. Tried-and-tested connection technology to ensure tensile strength and resistance to network expansion. Transparent body for easy fault location during installation. Perfect sealing IP68 for full protection against particle ingress. UL94 flame resistance enables indoor installations. Safety clip as an option for preventing risk of accidental disconnection. Date coding to guarantee quality and traceability. 100% leak-tested in production.
-
Measurements
Length 33 mm Height 24 mm Width 24 mm Weight 18 g -
Documents
Data Sheets
-
Technical Specifications - End Caps
Type Direct Buried For Duct Size 14mm Max Pressure 25 Bar Colour Transparent Fire Resistance UL94 IP Codes IP68 Temperature ranges for Operation -20°c - +80°c - Other variants
