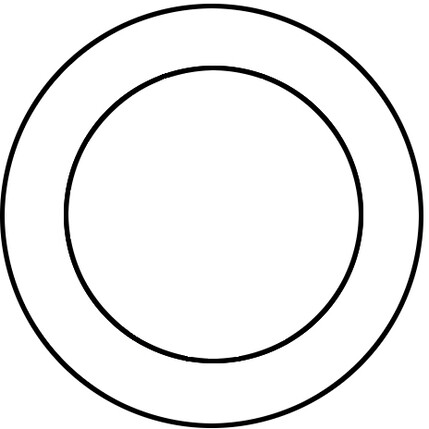

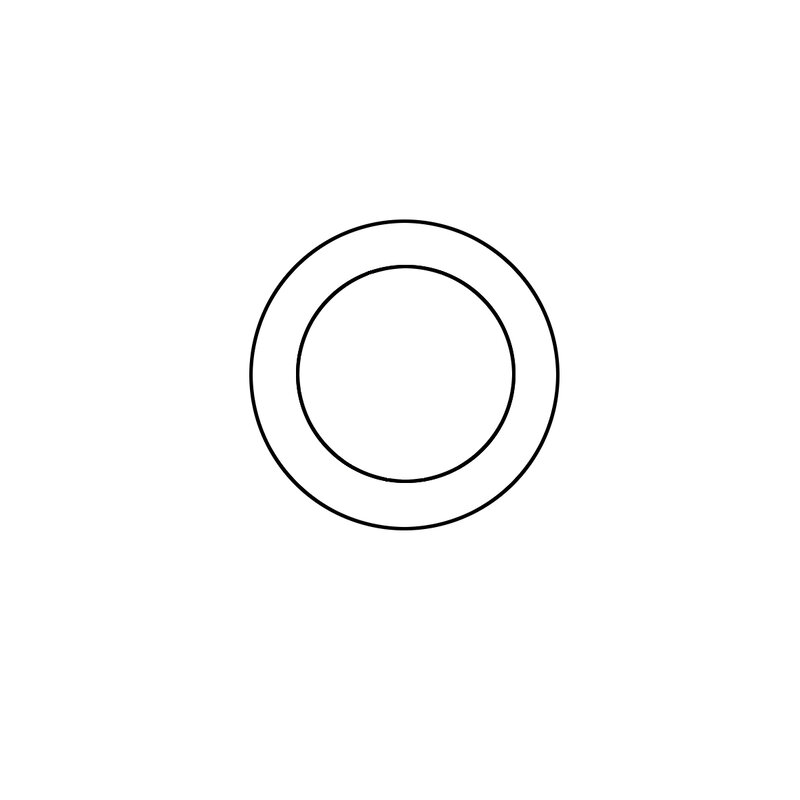

Microduct 5/3.5mm HDPE transparent Smooth, 500m/dr

Product code 5042317 Copy
Count 1 Copy
Sales unit Meter Copy
ETIM-Class EC001474 Copy
  • Product specifications

    5/3.5mm microducts are designed for long term protection of fiber optical cables and are especially suitable for installation of micro cables. Thin walled microducts are suitable for sub-duct installations.. The ducts can either be blown or pulled into existing pipes to maximize the utilization of already existing infrastructure. The microduct are made of high-density virgin polyethylene (HDPE). Every microduct has a permanent, co-extruded silicone compound inner liner giving a coefficient of friction of less than 0,1.

  • Measurements
    Length 1,000 mm Copy
    Height 5 mm Copy
    Width 5 mm Copy
    Weight 10 g Copy
  • Documents
    Data Sheets
    5042317-EN-FDV.pdf
  • Technical Specifications - Single Ducts
    Duct Type 5/3.5 Copy
    Halogen Free Yes Copy
    Duct Colour White Copy
    Outer Diameter 5 mm Copy
    Outer Diameter Tolerance +/- 0.1 mm Copy
    Inner Diameter 3.5 mm Copy
    Inner Diameter Tolerance +/- 0.1 mm Copy
    Min Bending Radius 25 mm Copy
    Max Install Tensile Force 90 N Copy
    Inner clearance test (of ID) 85 % Copy
  • Mechanical Characteristics
    Temperature ranges for installation -10°c - +50°c Copy
    Temperature ranges for Operation -40°c - +55°c Copy
    Temperature ranges for transport and storage -40°c - +55°c Copy
    Pressure Withstand (IEC 60794-1-22, Method F13) resistance to internal pressure (23°c, 2 hours) 20 bar (en 1167-1,2) Copy
    Pressure Withstand (IEC 60794-1-22, Method F13) resistance to internal pressure (60°c, ½ hour) 12 bar (en 1167-1,2) Copy
    Crush (IEC 60794-1-21, Method E3A) en 60794-1-21, method e3a, load 700 n, recovery time 1 hour Copy
    Impact (IEC 60794-1-21, Method E4) en 60794-1-21, method e4, impact 1 j, recovery time 1 hour Copy
    Outdoor exposure/UV-stabillity (Months) 12 Copy
