UNI indoor distribution box

Product code 5060516 Copy
Count 1 Copy
Sales unit Pcs Copy
ETIM-Class EC002067 Copy
  • Product specifications

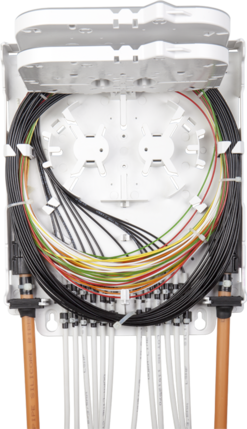

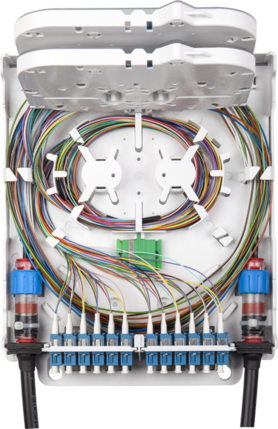

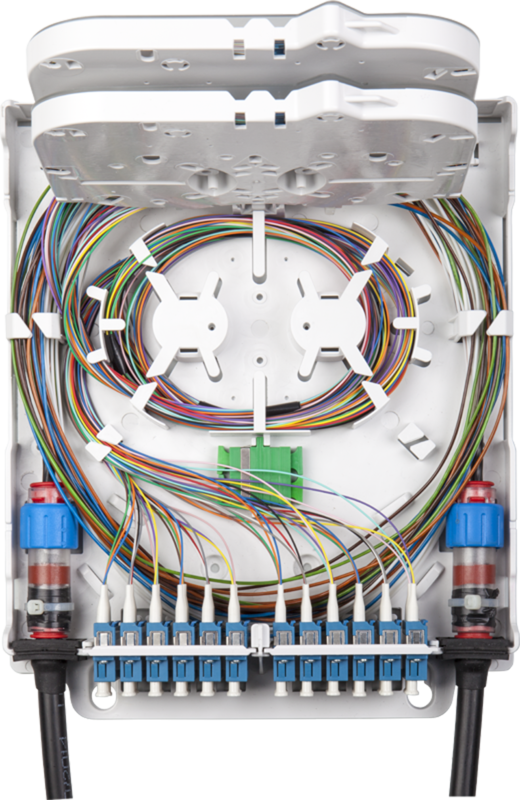

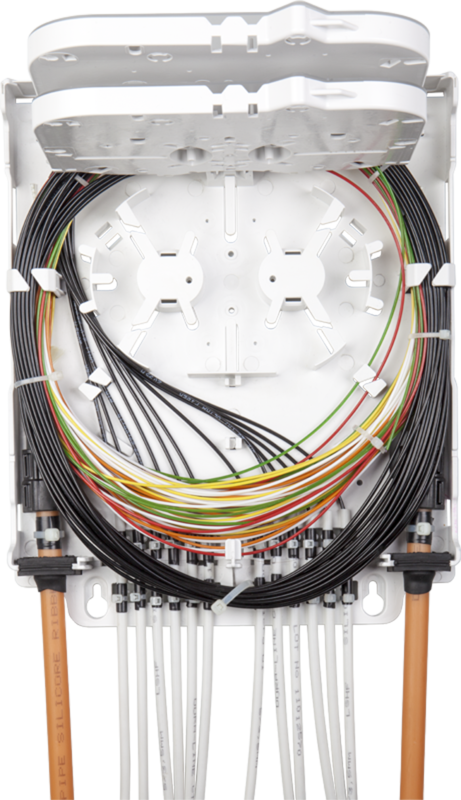

    MTeH UNI is designed to be a very versatile Fiber Optic Box, which can realize a wide range of configurations and interconnect fibers in many ways. The box is primarily suitable as a distribution box in FTTH networks. It includes two types of a connector panel and two large Fiber Optic Trays KM 4. Its unique design and factory connectorized options help reduce assembly time and installation costs

    • Easy installation

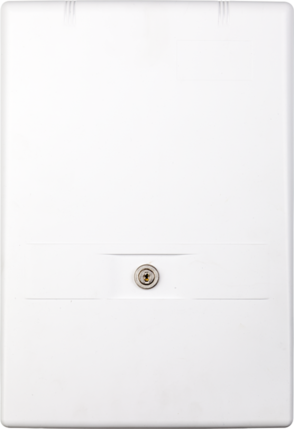

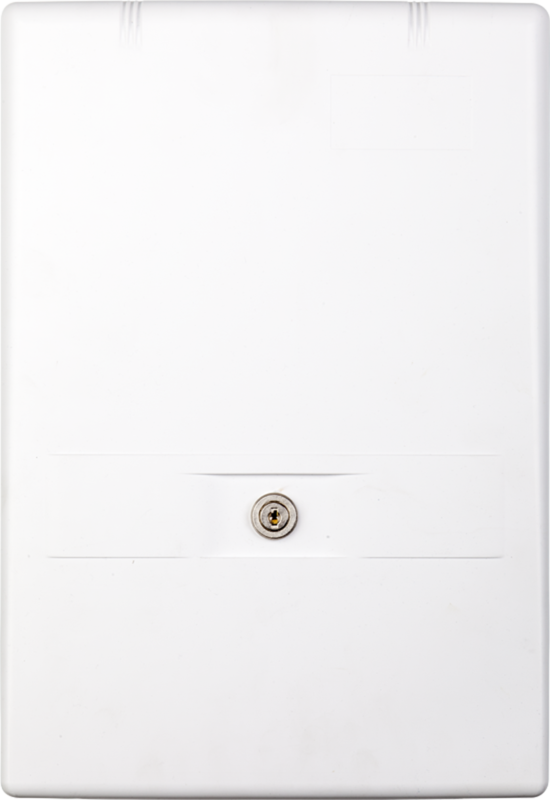

    • Removable cover
    • Cable reserves brackets
    • Cable management

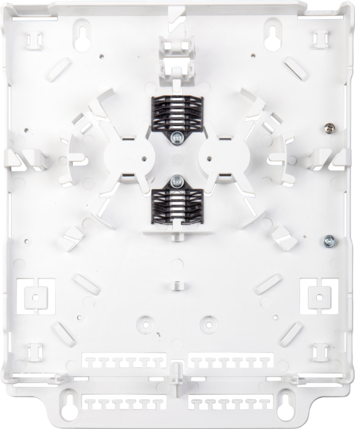

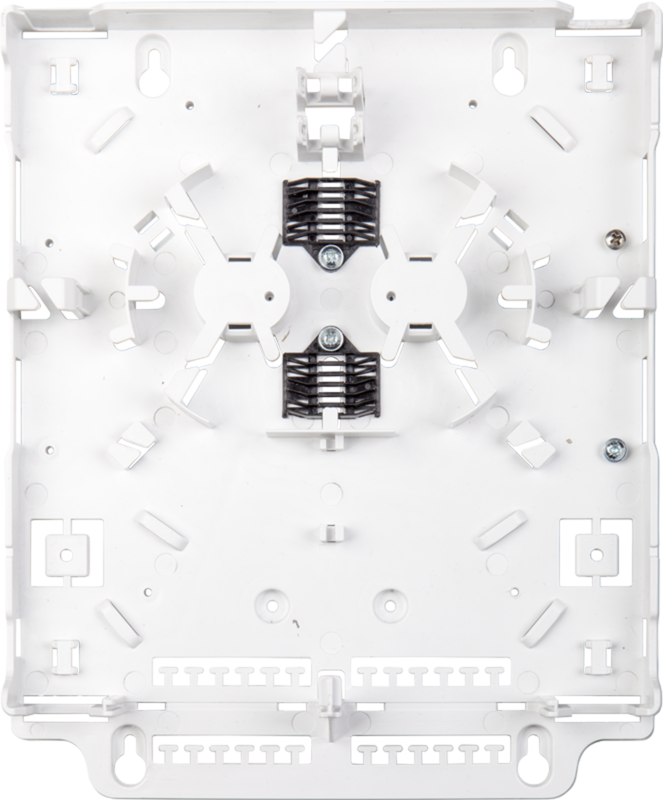

    • Ability to splice in the bottom of the box
    • Optional splicing or splitter boxes
    • Removable connector panel for 12x SC simplex or 12xSC duplex
    • Connector plate protected with a cover
    • Gradual grommet Ø 3-14 mm for cable entry from all sides
    • Input for 12 microducts  up to Ø 7 mm
    • Preparation for the side entrance of Wall rails
    • Optional wall through installation

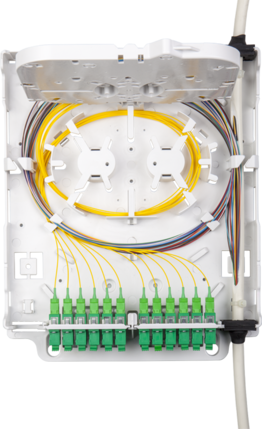

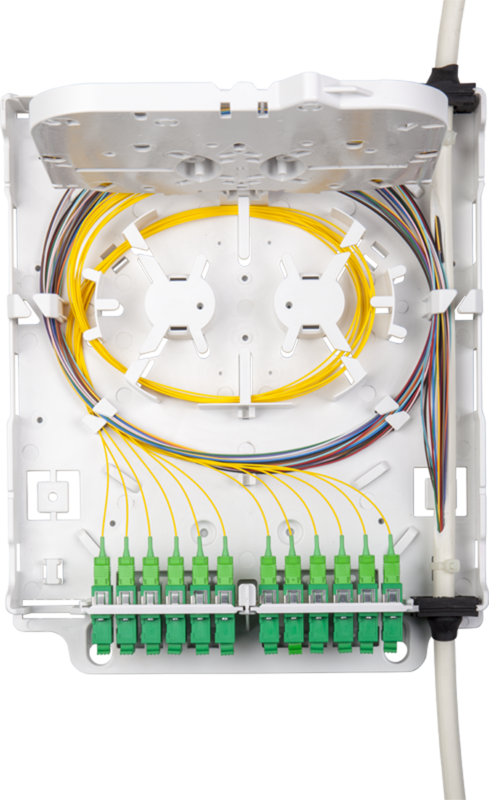

    • Mid-span access

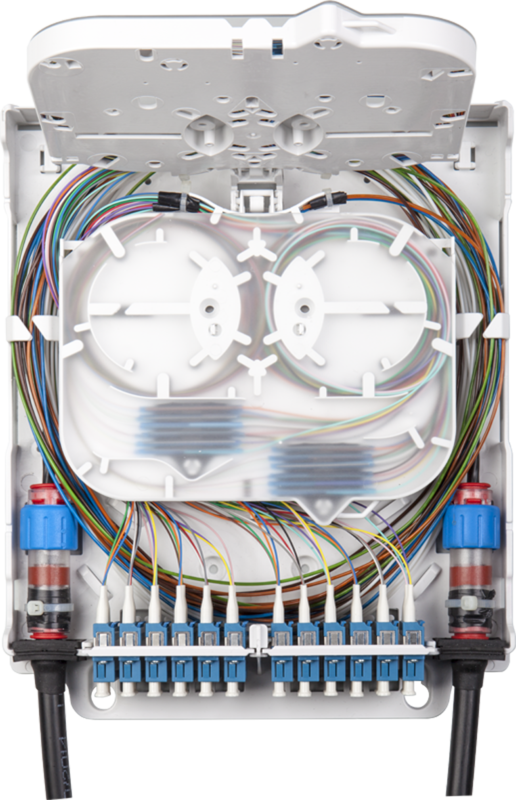

    • 2x splice tray KM4 – total capacity 48 splices
    • Maximum capacity 72 splices using splice section in the bottom of the box

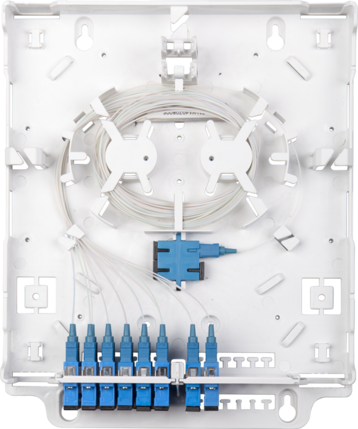

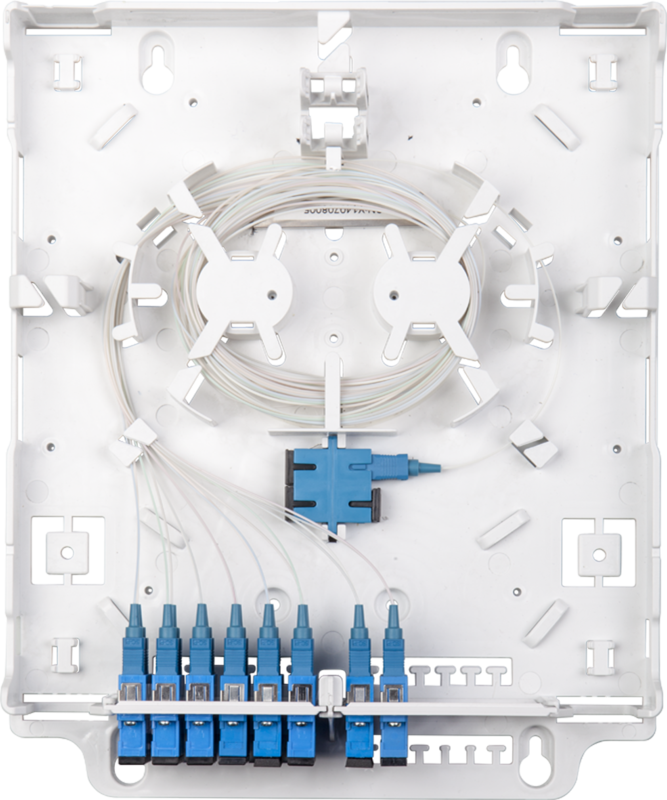

    • Duplex adapter point to connect PLC splitter



    Coverage Degree IP 20 to EN 60529
    Self-Extinguishing Degree V2 to UL94
    Impact protection degree IK 6 to EN 50102
    Color White RAL 9003
    Dimensions 340 x 235 x 60 mm
    Weight 0,8 kg
    Material – distribution box ABS - Halogen free, flame retardant (V2)
    Environment Indoor
    Number of splices 1-12 splices, 13-24 splices, 25-48 splices
    Number of connectors 1-12 connectors, 13-24 connectors, 25-48 connectors
    Connector type SC, LC
  • Measurements
    Length 340 mm Copy
    Height 65 mm Copy
    Width 240 mm Copy
    Weight 900 g Copy
  • Documents
    Data Sheets
    5060516-EN-FDV.pdf
  • Technical Specifications - Termination/Distribution Boxes
    Environment Indoor Copy
    Number of splices 48 Copy
    Number of connectors 48 Copy
    Connector Type sc/upc simplex, sc/upc duplex, sc/apc simplex, sc/apc duplex, lc/upc duplex, lc/upc quad, lc/apc duplex, lc/apc quad Copy
    Cable/duct diameters 3-14mm Copy
    Mid-span access Yes Copy
    Splice trays included 1 Copy
    Number of splice trays 2 Copy
    Max Fibre Count per tray 24 Copy
    Splice Holder Included Yes Copy
    Lockable Yes Copy
    IP Codes ip20 Copy
    Impact protection degree ik06 Copy
    Colour White RAL 9003 Copy
    Material ABS Copy
    Halogen Free Yes Copy
    Fire Resistance v2 to ul94 Copy
