Coyote

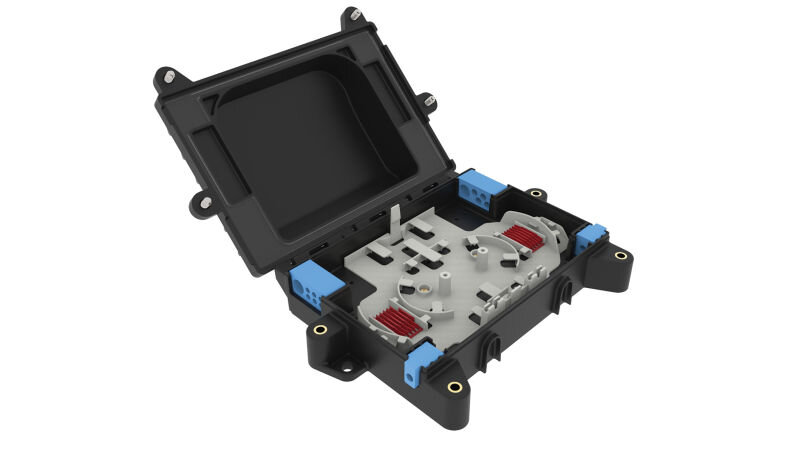

Coyote Optical Dome Closure (ODC) for installation in fibre optic telecommunication networks. Watertight according to IP68 and used for splicing traditional cables, ADSS cables and micro-cables underground, directly buried, in manholes or aerial. The domes can be pole-, wall- or wire mounted. Installation is quick and easy, and no heat shrinkage is required. Sealing between dome and cable is done with silicone grommets that are available for different cable dimensions and as single or multi-pass. Midspan is easily performed either through a single grommet with multi-pass or through two ports in the divisible base. The dome is tested according to Bellcore General Requirement GR-771-CORE.

Coiling frame

1 variant

Coiling frame

1 variant

Coyote pole/wall bracket

3 variants

Drop cable storage bracket

84010634

The drop cable storage bracket stores slack fiber optic cables with a minimum storage diameter 203 mm. This includes most round drop cables having nominal diameters of up to 10 mm and flat drop cables. The FDC8 inner wall is designed to assure that the cable loop diameter is properly installed to avoid fiber attenuation and damage to cable elements. Used in chambers or wall service entrance, no hardware included.

Coyote mounting bracket

84010635

Underground chamber mounting bracket for Coyote closures including the Coyote LCC, ONE, Dome 6.5x17, Dome 6.5x22 and Dome 9.5x19.

Download Data sheet
